C&T RF Antennas Inc. manufactures a series of high-performance ISM/LoRa 868/915MHz LoRa PCB antennas. The internal 915 MHz ISM/LoRa PCB antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more information on our high-performance ISM/LoRa 868/915MHz LoRa PCB antennas, including the 868/915MHz LoRa PCB antenna datasheet, pricing for the 868/915MHz ISM PCB antenna, and current inventory of 868/915MHz LoRa PCB antennas.
Or other indoor-outdoor ISM/LoRa 868/915MHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 868/915 MHz LoRa PCB antennas cover 850-930 MHz PCB antennas manufactured by C&T RF Antennas Inc. These frequencies include 868 MHz, 900 MHz, 915 MHz, and 928 MHz. LoRa PCB antennas are internal rigid printed circuit board antennas commonly used in GSM, RFID, ISM, LoRa, Sigfox, M2M, and IoT industry applications.
The high-performance 868/915 MHz LoRa PCB antennas are compact ISM/LoRa rigid PCB dual-band antennas designed to fit into IoT devices and perform well at 868/915MHz for ISM applications.
Besides the high-performance 868/915 MHz LoRa PCB antennas, we also provide 13.56 MHz PCB antennas, 433MHz PCB antennas, 868 MHz PCB antennas, 915MHz PCB antennas, LTE-M/NB-IoT/3G GSM PCB antennas, WiFi 2..4GHz PCB antennas, WiFi PCB 2.4 GHz 5GHz antennas, 4G/LTE PCB antennas, 5G NR/3.5G CBRS PCB antennas, and GNSS/GPS PCB antennas for your choice.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
850-930 MHz Frequency Range Compatibility
Compact Size
Ease for Mounting
Optimized Performance
Durable Design
Multiple Applications
Cost-effective
etc.
With the advantages of miniaturization, low cost, and easy integration, high-performance 868/915 MHz LoRa PCB antennas have become a core component for low-power wide-area communication in IoT devices.
Through optimized design, frequency band matching, and multi-technology integration, LoRa PCB antennas will play a greater role in smart cities, industrial IoT, agricultural monitoring, and other fields, promoting the popularity and application of IoT technology.
Remote control and energy consumption monitoring of street lights through LoRa PCB antennas to reduce maintenance costs.
Deploy air quality, noise, and other sensors, and use LoRa long-distance communication capability to achieve city-level data collection.
Combine geomagnetic sensors and LoRa antennas to monitor the status of parking spaces in real-time and improve parking efficiency.
Sensors integrated with LoRa PCB antennas in factories can monitor equipment vibration, temperature, and other parameters in real-time, and predictive maintenance reduces downtime.
Track the location and status of high-value equipment or raw materials through LoRa positioning technology.
Deploy sensor nodes with LoRa PCB antennas to monitor soil moisture, temperature, light, and other parameters to support precision agriculture.
Remote monitoring of livestock location and health status using LoRa technology.
Low-power remote door lock control and intrusion alarm via LoRa PCB antenna.
Monitor energy consumption data of a home or building to optimize energy usage.
etc.

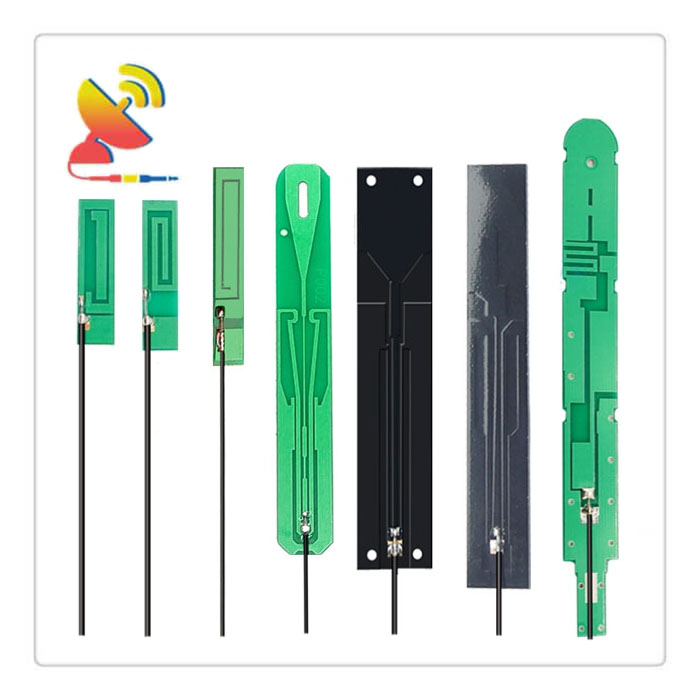

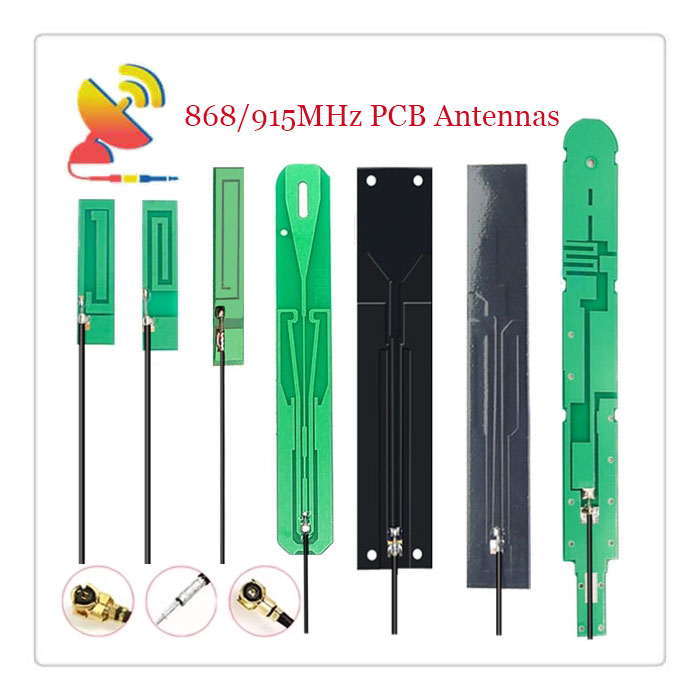

C&T RF Antennas Inc. offers high-performance 868/915 MHz LoRa PCB antennas. Below are some of the LoRa PCB antennas.
Item: CTRF-ANTENNA-PCB-8593-3207-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ32×7.5mm
Item: CTRF-ANTENNA-PCB-8593-3208-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ32x8mm

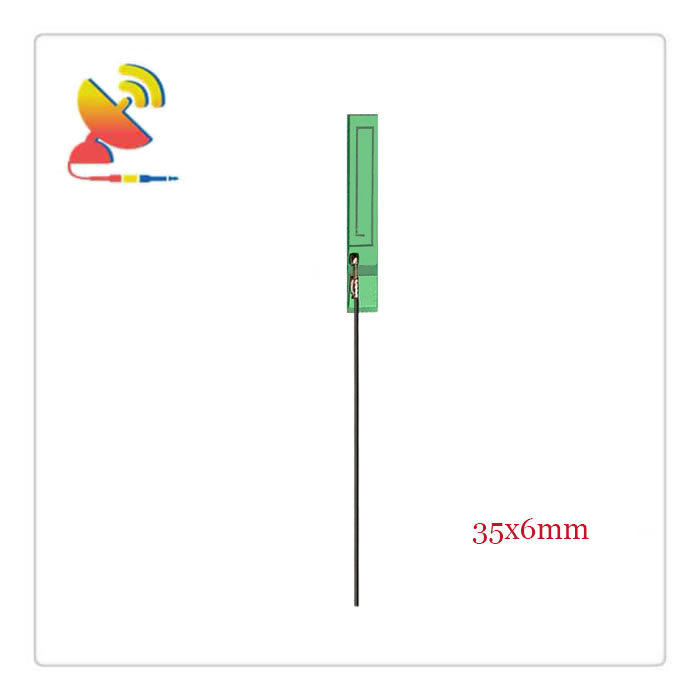

Item: CTRF-ANTENNA-PCB-8593-3506-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ35x6mm

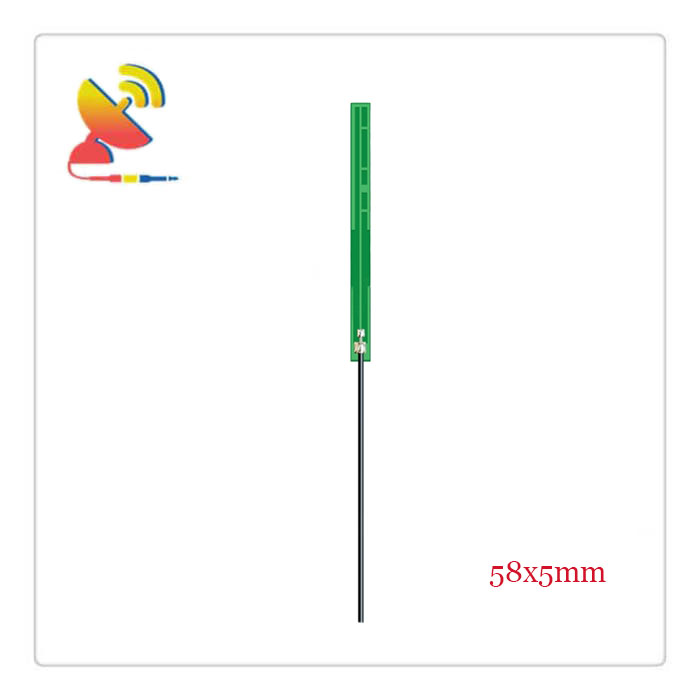

Item: CTRF-ANTENNA-PCB-8593-5805-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ58x5mm

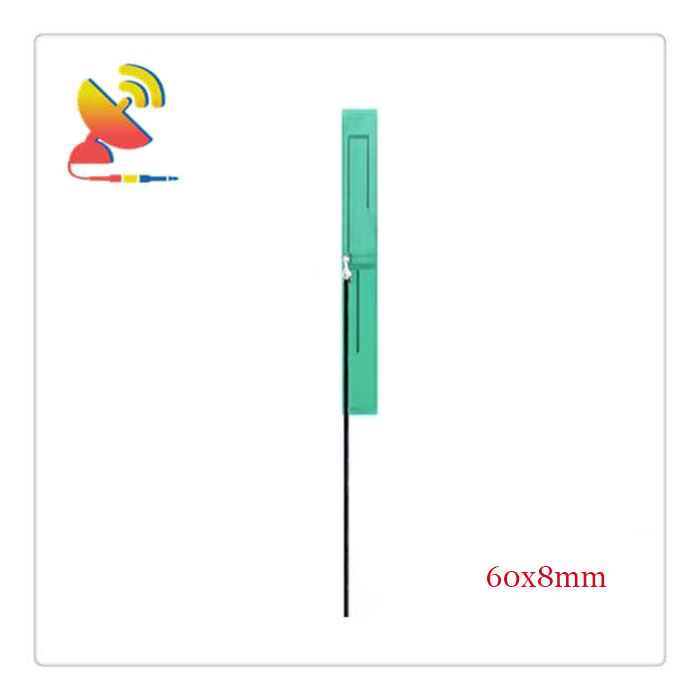

Item: CTRF-ANTENNA-PCB-8593-6008-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ60x8mm
Item: CTRF-ANTENNA-PCB-8593-6016-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ60x16mm

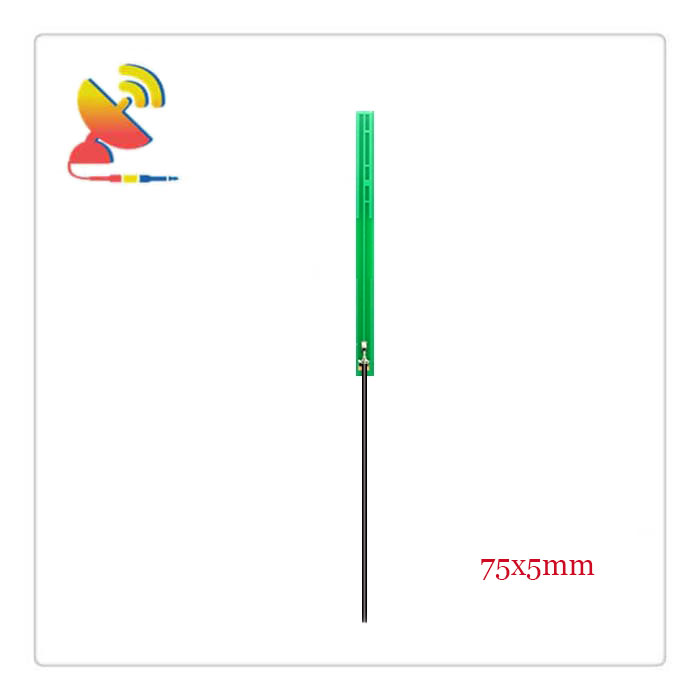

Item: CTRF-ANTENNA-PCB-8593-7505-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ75x5mm
Item: CTRF-ANTENNA-PCB-8593-7522-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ75x22mm
Item: CTRF-ANTENNA-PCB-8593-9514-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ95x14mm

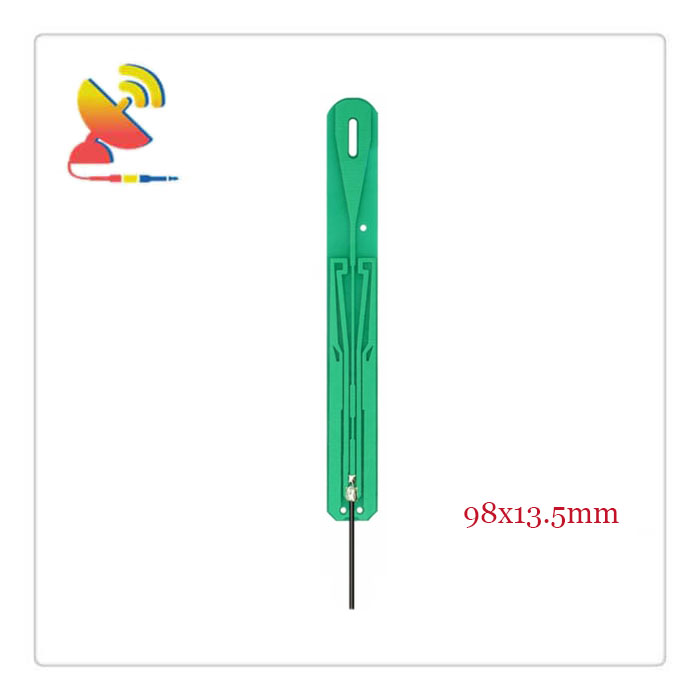

Item: CTRF-ANTENNA-PCB-8593-9814-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ98×13.5mm
Item: CTRF-ANTENNA-PCB-8593-10021-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Black
Dimension: Φ100x21mm

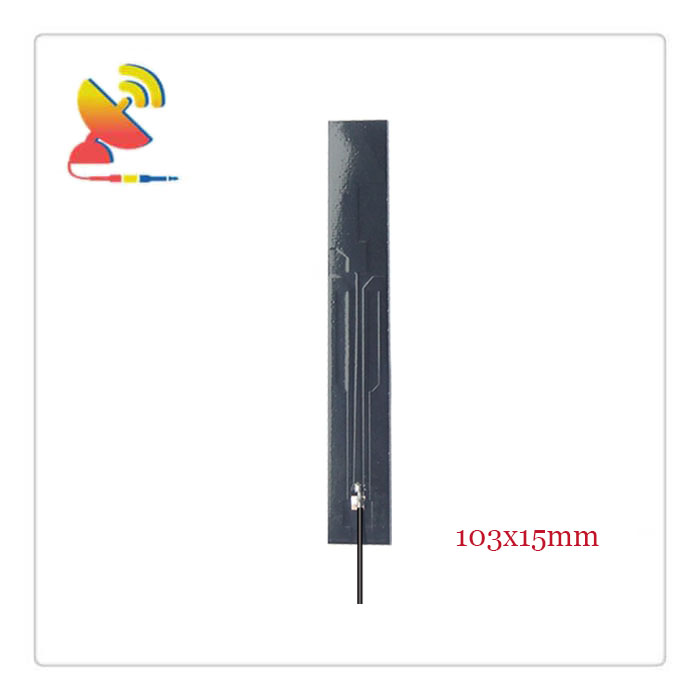

Item: CTRF-ANTENNA-PCB-8593-10315-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Black
Dimension: Φ103x15mm

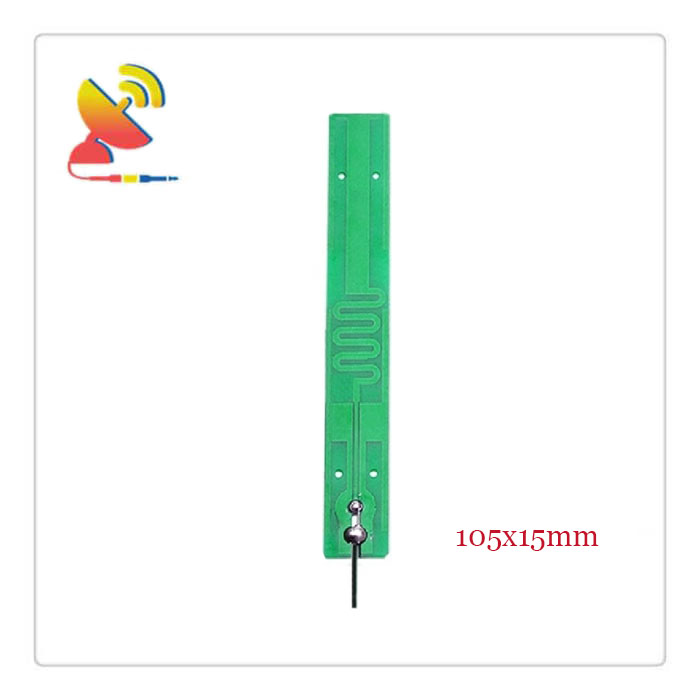

Item: CTRF-ANTENNA-PCB-8593-10515-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ105x15mm
Item: CTRF-ANTENNA-PCB-8593-12514-IPEX
Specifications:
Material: Rigid Printed Circuit Board
Frequency Range: 850-930 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (or opening end)
Color: Green
Dimension: Φ125x14mm

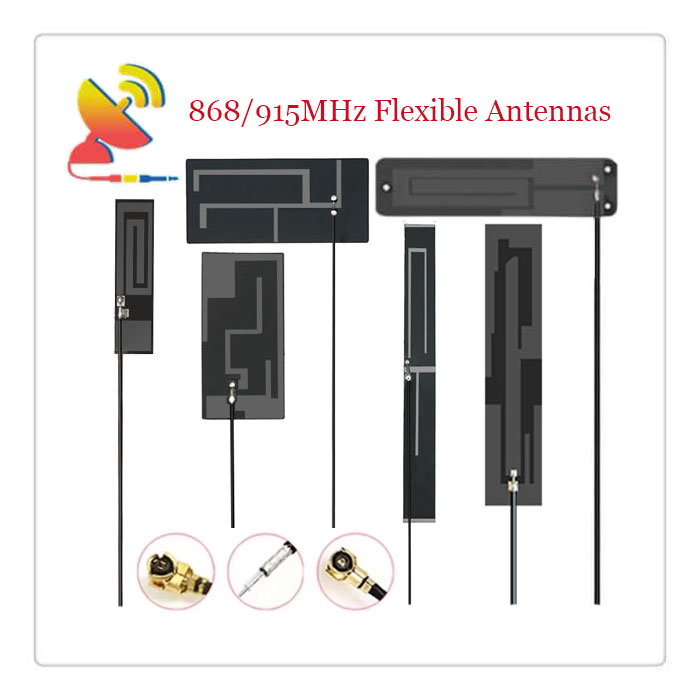

In addition to the PCB antennas, C&T RF Antennas Inc. also offers 868/915 MHz ISM/LoRa antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, helical antennas, etc. Contact us for more specs you need.
