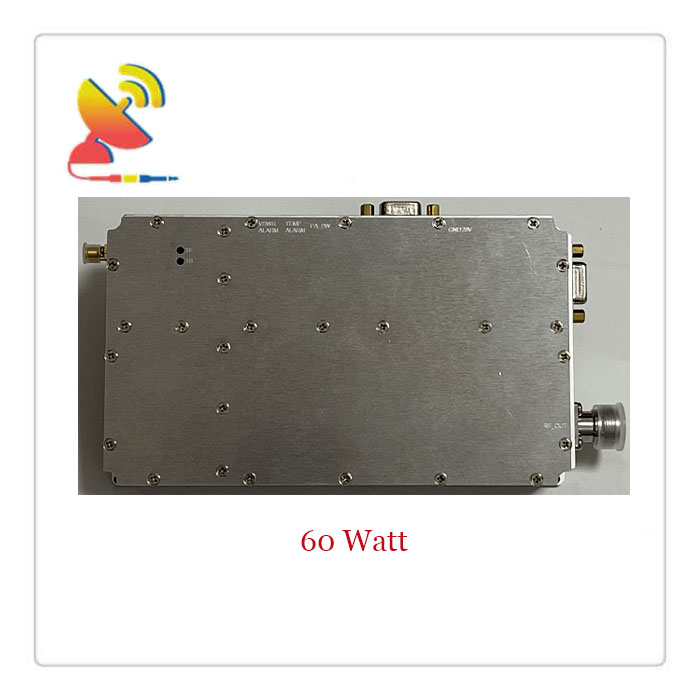

C&T RF Antennas Inc. manufactures a series of high-performance 60W RF power amplifier modules. Please scroll to the bottom of this page for more product-style information.
Contact us for more information on the high-performance 60W RF power amplifier modules, including the 60W RF power amplifier module datasheet, pricing, and availability.
Or other customized RF power amplifier module styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
C&T RF Antennas Inc. designs high-performance 60W RF power amplifier modules with a wide range of radio frequencies for military and commercial applications. All specifications of RF power amplifiers can be customized based on customer requirements.
The high-performance 60W RF power amplifier modules are Class-AB type RF amplifiers used for broadband and commercial wireless communications systems.
High-performance
From 25 MHz to 6000 MHz customization frequencies
60W output power
50 ohm input/output impedance
Built-in control, monitoring, and protection functions
etc.
Besides the high-performance 60W RF Power Amplifier Modules, the 10W RF Power Amplifiers, 100 Watt RF Power Amplifiers, 40W RF Amplifier Modules, 50 Watt RF Amplifiers, 100W RF Power Amplifiers, 200 Watt RF Power Amplifiers, and 300 Watt RF Amplifiers are available at C&T RF Antennas Inc.
We also provide other RF power amplifier modules with customization, such as the following.
etc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
C&T RF Antennas Inc. offers RF wireless antennas in various types, including external rubber duck antennas, adhesive mount antennas, adhesive mount antennas, Yagi antennas, sector antennas, magnetic antennas, fiberglass antennas, and through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
| Size | 172x100x26mm |
| Input Power | ≤5dBm |
| Output Power(W) | 60±1(60W ) |
| In-Band ripple(dB) | ≤1.5 |
| Gain(dB) | 50 or Customized |
| Gain Flatness(dB) | ±1(Max) |
| Impedance(ohm) | 50 |
| VSWR | ≤1.5:1 |
| Voltage(V) | DC+28 |
| Power current | ≤7A |
| RF Connector | SMA-50K or other Customized |
| Monitor interface | PTT, VSWR Alarm, Temperature Alarm |
| Working Temperature | -40~+65 degree |
| Storage Temperature | -55 to +85 degrees |
| Operating Humidity | 0 to 90%, relative |
| Surface Color | Metal color conductive oxide and other colors customized |
| Weight | 1.0KG |
| Remark | Module with output short circuit or open circuit protection |
| SN | PIN | Function | Description |
| 1 | SWR | VSWR Alarm | If VSWR exceeds 4:1, an alarm is generated, and the PA will be off |
| 2 | TEMP | Temperature alarm | Module case temperature exceeds 65°C, it generates an alarm and reaches 75°C, turn off the amplifier, until the temperature returns to below 55°C, re-open PA. |
| When generating an alarm, the output TTL level is 3.3V, and when it is working normally, the level is 0V | |||
| 3 | PTT | Enable | PA ON when PTT is Low level or no level (ground) and PA OFF when PTT is High level (+5V), pulled-up with 10kΩ. |
| 4 | GND | Grounding |
Specifications of High-performance 60W RF Power Amplifier Modules |
|||
| Bands | Custom Band Ranges | Output Power | SKU |
| VHF | 25-75MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-02575-60W |
| 30-88MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-03088-60W | |
| 30-100MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-30100-60W | |
| 88-200MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-108200-60W | |
| 108-200MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-108200-60W | |
| 130-180MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-130180-60W | |
| 135-175MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-135175-60W | |
| 136-174MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-136174-60W | |
| 150-174MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-150174-60W | |
| 156-162MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-156162-60W | |
| 170-230MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-170230-60W | |
| UHF | 300-400MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3040-60W |
| 300-500MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3050-60W | |
| 380-500MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3850-60W | |
| 380-512MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3851-60W | |
| 380-520MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3852-60W | |
| 400-450MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-4045-60W | |
| 400-470MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-4047-60W | |
| 400-480MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-4048-60W | |
| 400-520MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-4052-60W | |
| 410-450MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-4145-60W | |
| 420-440MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-0433-60W | |
| 600MHz | 600-750MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-6075-60W |
| 610-720MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-6172-60W | |
| 650-800MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-6580-60W | |
| 700MHz | 700MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-0700-60W |
| 700-800MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-7080-60W | |
| 700-830MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-7083-60W | |
| 700-850MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-7085-60W | |
| 700-860MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-7086-60W | |
| 700-1000MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-70100-60W | |
| 720-840MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-7284-60W | |
| 720-850MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-7285-60W | |
| 720-860MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-7286-60W | |
| 720-880MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-7288-60W | |
| 730-850MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-7385-60W | |
| 740-870MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-7487-60W | |
| 790-830MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-7983-60W | |
| 800MHz | 800MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-0800-60W |
| 800-950MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8095-60W | |
| 800-1020MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-80102-60W | |
| 820-940MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8294-60W | |
| 820-950MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8295-60W | |
| 824-880MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8288-60W | |
| 830-930MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8393-60W | |
| 840-950MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8495-60W | |
| 850-895MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8590-60W | |
| 850-930MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8593-60W | |
| 850-940MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8594-60W | |
| 850-950MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8595-60W | |
| 850-960MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8596-60W | |
| 860-930MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8693-60W | |
| 860-970MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-8697-60W | |
| 860-1020MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-86102-60W | |
| 868MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-0868-60W | |
| 900MHz | 900MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-0900-60W |
| 900-930MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-0915-60W | |
| 920-1020MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-92102-60W | |
| 930-1020MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-93102-60W | |
| 940-1060MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-94106-60W | |
| 940-1070MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-94107-60W | |
| 950-1050MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-95105-60W | |
| 960-1060MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-96106-60W | |
| 970-1050MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-97105-60W | |
| 970-1100MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-97110-60W | |
| 1.1 GHz | 1100-1200MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1100-60W |
| 1160-1280MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1112-60W | |
| 1160-1610MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1116-60W | |
| 1170-1230MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-117123-60W | |
| 1170-1280MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-117128-60W | |
| 1.2 GHz | 1200-1300MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1200-60W |
| 1240-1300MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1213-60W | |
| 1.3 GHz | 1300-1400MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1300-60W |
| 1380-1480MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-138148-60W | |
| 1.4 GHz | 1400-1500MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1400-60W |
| 1420-1530MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1415-60W | |
| 1.5 GHz | 1500-1600MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1500-60W |
| 1540-1630MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1516-60W | |
| 1550-1625MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1550-60W | |
| 1560-1620MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1560-60W | |
| 1570-1620MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1570-60W | |
| 1.6 GHz | 1600-1800MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1618-60W |
| 1.7 GHz | 1700-1800MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1700-60W |
| 1710-1785MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1718-60W | |
| 1.8 GHz | 1800-1880MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1818-60W |
| 1800-1900MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1800-60W | |
| 1800-1920MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1819-60W | |
| 1805-1990MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-18199-60W | |
| 1.9 GHz | 1900-2000MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1900-60W |
| 1920-1990MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-1919-60W | |
| 2G | 2000-2200MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2022-60W |
| 2.1 GHz | 2100-2200MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2100-60W |
| 2100-2170MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-21217-60W | |
| 2110-2180MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2121-60W | |
| 2190-2360MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2123-60W | |
| 2.2 GHz | 2200-2300MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2200-60W |
| 2.3 GHz | 2300-2400MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2300-60W |
| 2300-2500MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2325-60W | |
| 2.4 GHz | 2390-2450MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-239245-60W |
| 2400MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2400-60W | |
| 2400-2500MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2450-60W | |
| 2450-2510MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-245251-60W | |
| 2.5 GHz | 2500-2600MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2500-60W |
| 2500-2700MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2527-60W | |
| 2.6 GHz | 2600-2700MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2600-60W |
| 2620-2690MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-2626-60W | |
| 3.5 GHz | 3300-3800MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3338-60W |
| 3400-3500MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3435-60W | |
| 3400-3600MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3436-60W | |
| 3400-3700MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3437-60W | |
| 3400-4200MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3442-60W | |
| 3500-3600MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3536-60W | |
| 3600-3800MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-3638-60W | |
| 5.2 GHz | 5200MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-5200-60W |
| 5200-5900MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-5259-60W | |
| 5.8 GHz | 5150-5850MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-5158-60W |
| 5650-5800MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-565580-60W | |
| 5725-5850MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-5758-60W | |
| 5800MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-5500-60W | |
| 5800-5950MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-580595-60W | |
| 5900-6000MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-59600-60W | |
| 5G NR | 600-6000MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-60600-60W |
| 824-6000MHz | 60-Watt | CTRF-ANTENNA-RF-AMP2-82600-60W | |
| WiFi Dual-band | 2400-2500MHz, 5150-5800MHz |
60-Watt | CTRF-ANTENNA-RF-AMP2-2458-60W |
