C&T RF Antennas Inc. manufactures a series of 4G LTE SMA antennas Omni rubber duck antennas—the SMA plug and RP-SMA 4G LTE external antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance 4G LTE SMA antenna such as the 4G SMA antenna datasheet, LTE SMA antenna pricing, and 4G LTE SMA rubber duck antenna inventory.
Or other indoor-outdoor 4G LTE antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 4G LTE SMA antennas are SMA connector rubber duck antennas cellular external antennas manufactured by C&T RF Antennas Inc. for 3G, 4G, GSM, UMTS, and LTE cellular modems, routers, and gateways for IoT and M2M industries.
The omnidirectional 4G LTE multiband antenna is designed for worldwide LTE/4G cell reception. It is a compact multiband antenna with SMA male connectors.
The 4G LTE SMA antennas are suitable for various applications, including security alarms, smart security homes, network mapping, security surveillance equipment, wireless modules, and more. In addition, they are compactable for easy carrying and use.
Besides the high-performance 4G LTE SMA antennas, we also provide 433MHz SMA antennas, single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/UMTS/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, passive GPS SMA antennas, 2.4GHz, 5GHz single-band and dual-band 2.4/5GHz WiFi SMA antennas, 169MHz/230MHz/315MHz SMA antennas, 1.2G/1.4G/1.8G SMA antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.
The high-performance 4G LTE SMA antennas can provide stable signal transmission, ensuring accurate and timely data transmission in the 4G LTE network.
The high-performance 4G LTE SMA antennas have a strong anti-interference ability, which can effectively resist the interference of other electronic devices and ensure smooth communication.
The high-performance 4G LTE SMA antennas are small and lightweight, easy to install and carry, and suitable for equipment with high space and weight requirements.
The high-performance 4G LTE SMA antennas have good durability and can work normally under various harsh environmental conditions, such as high temperature, low temperature, humidity, and other environments.
Some 4G LTE SMA antennas are waterproof and dustproof, suitable for outdoor and industrial environments.
etc.
C&T RF Antennas Inc. provides high-performance 4G LTE SMA antennas and RP-SMA male connector rubber duck antennas. Below are some of the 4G LTE SMA antennas.
Item: CTRF-ANTENNA-AP-7027-0840B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male Right-Angle
Color: Black
Dimension: Φ8x40mm

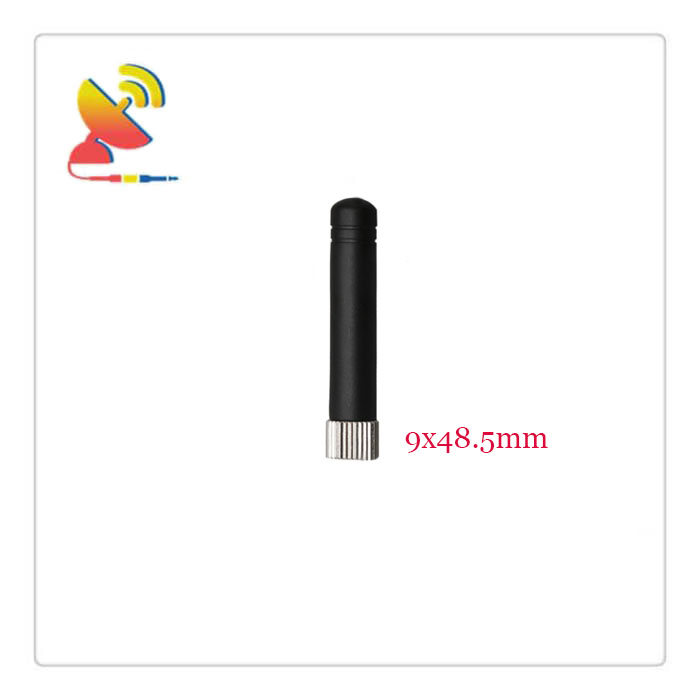

Item: CTRF-ANTENNA-AP-7027-0948B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ9×48.5mm

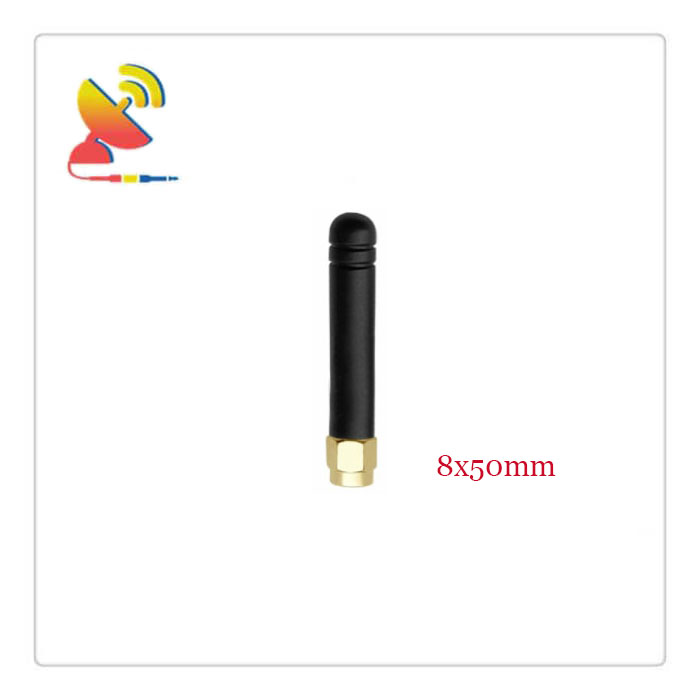

Item: CTRF-ANTENNA-AP-7027-0850B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ8x50mm

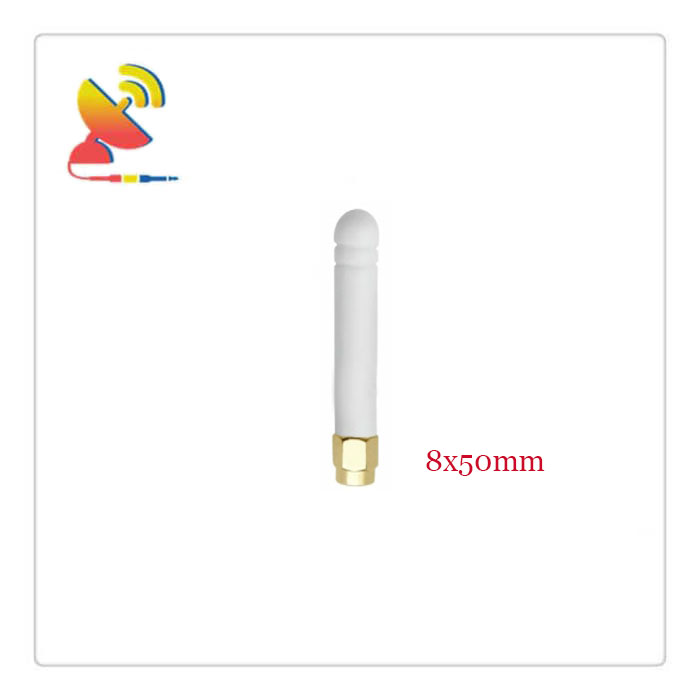

Item: CTRF-ANTENNA-AP-7027-0850W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: White
Dimension: Φ8x50mm

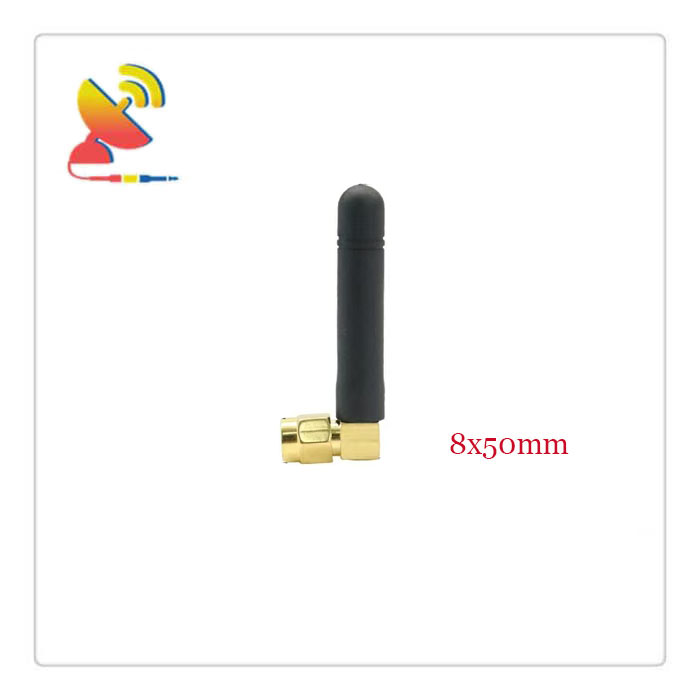

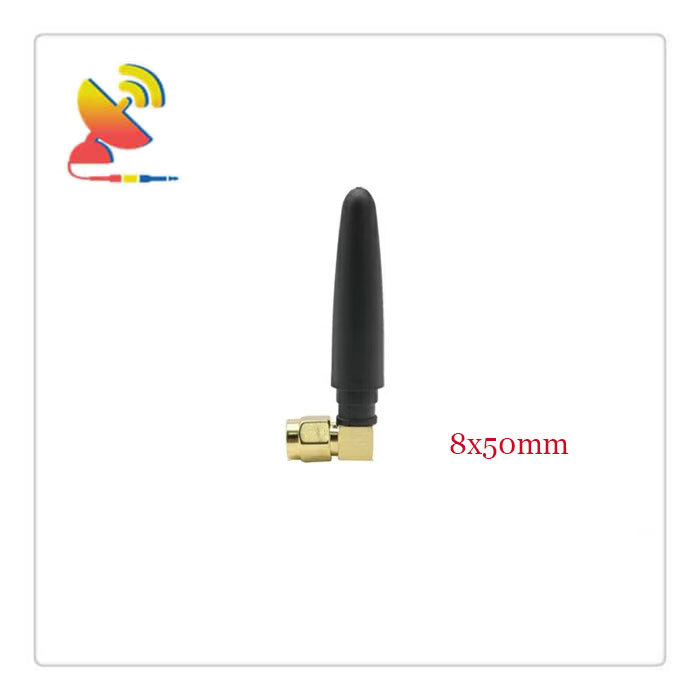

Item: CTRF-ANTENNA-AP-7027-0850B-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: Black
Dimension: Φ8x50mm

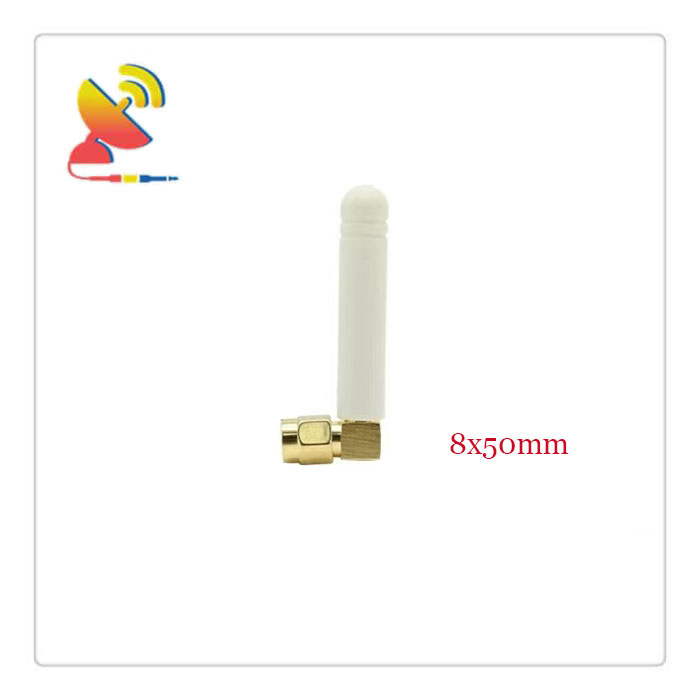

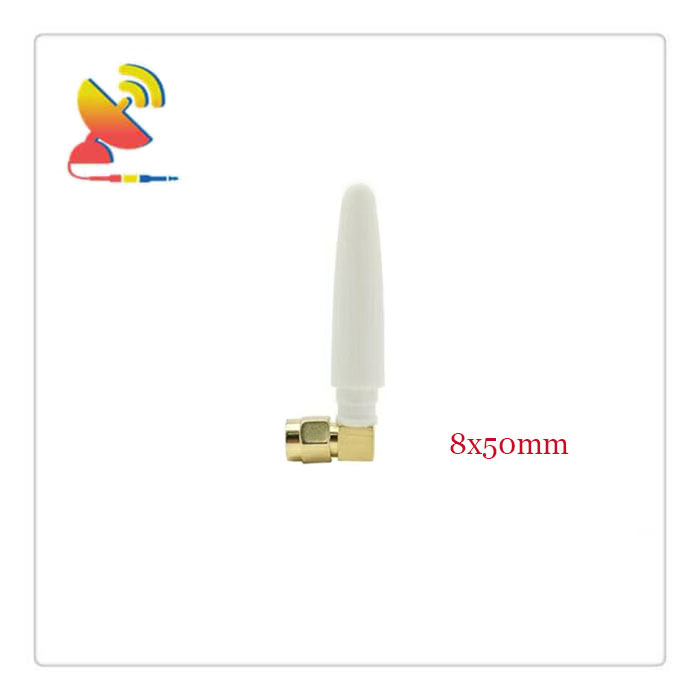

Item: CTRF-ANTENNA-AP-7027-0850W-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: White
Dimension: Φ8x50mm

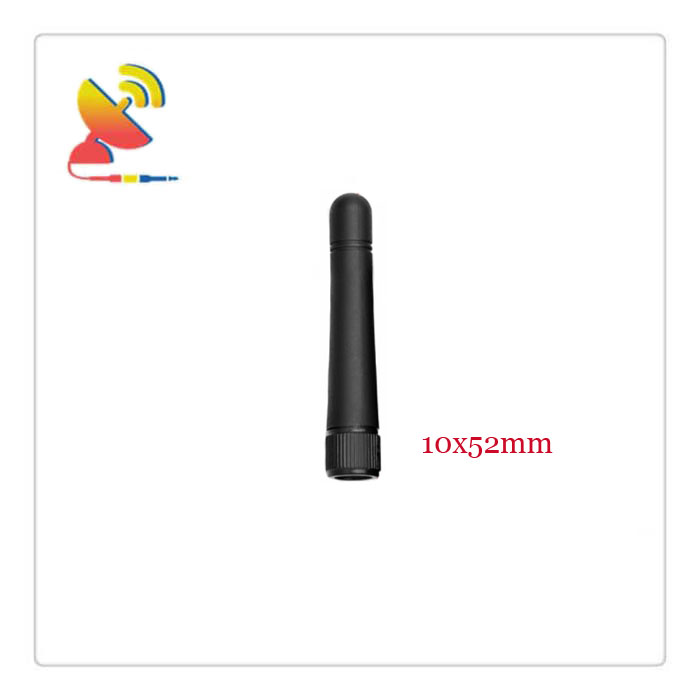

Item: CTRF-ANTENNA-AP-7027-1052B-SMAS
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x52mm

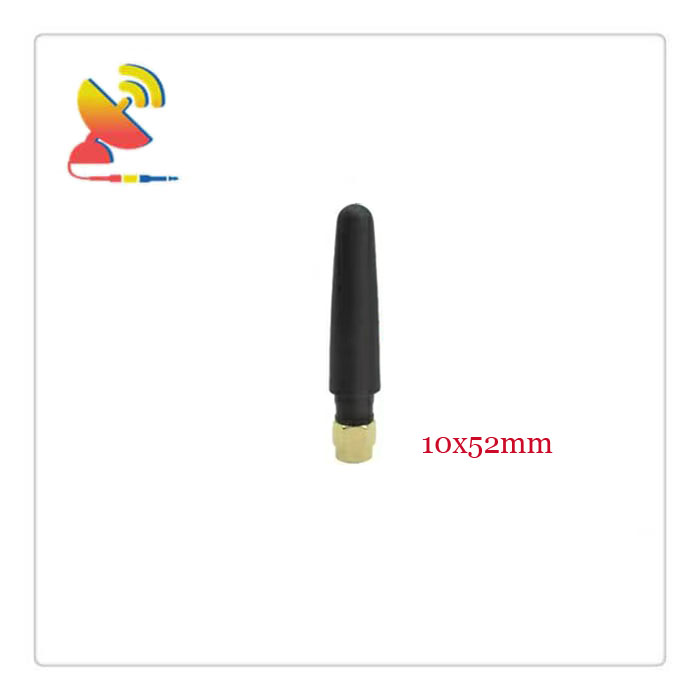

Item: CTRF-ANTENNA-AP-7027-1052B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x52mm

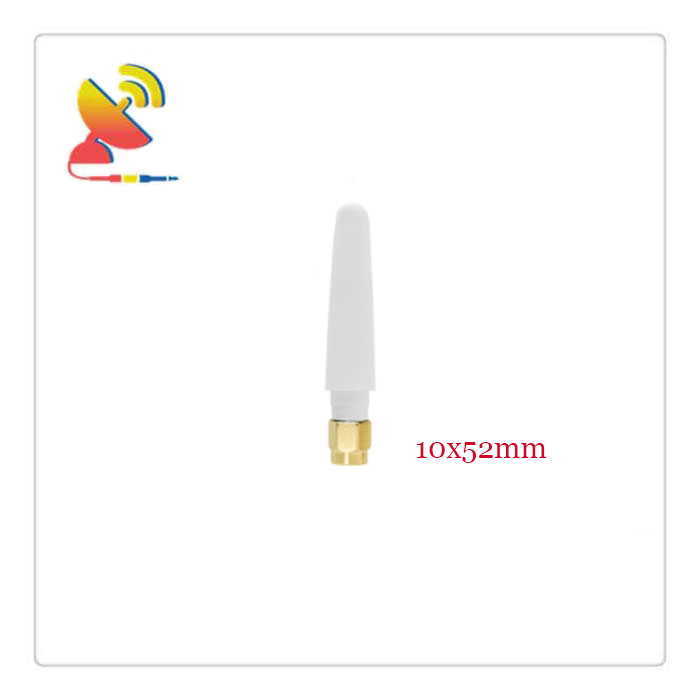

Item: CTRF-ANTENNA-AP-7027-1052W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: White
Dimension: Φ10x52mm
Item: CTRF-ANTENNA-AP-7027-1052B-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x52mm
Item: CTRF-ANTENNA-AP-7027-1052W-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: White
Dimension: Φ10x52mm

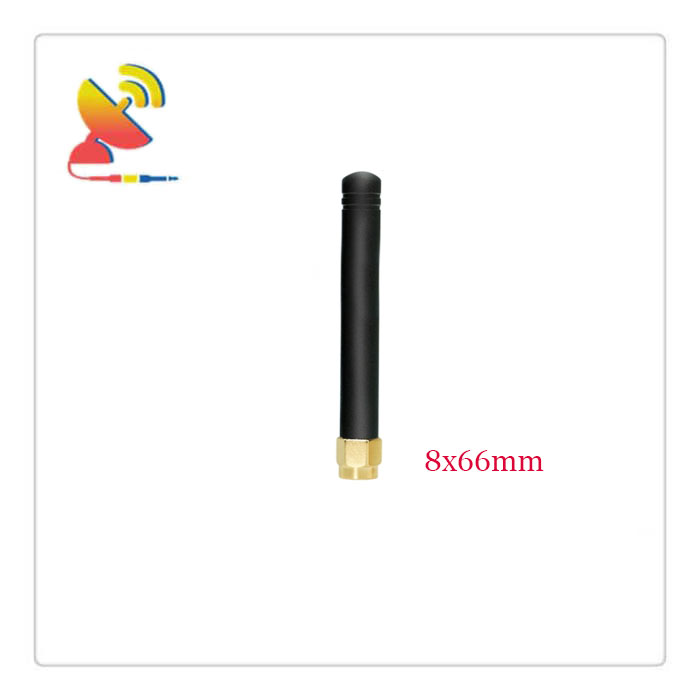

Item: CTRF-ANTENNA-AP-7027-0866-SMAS
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ8x66mm

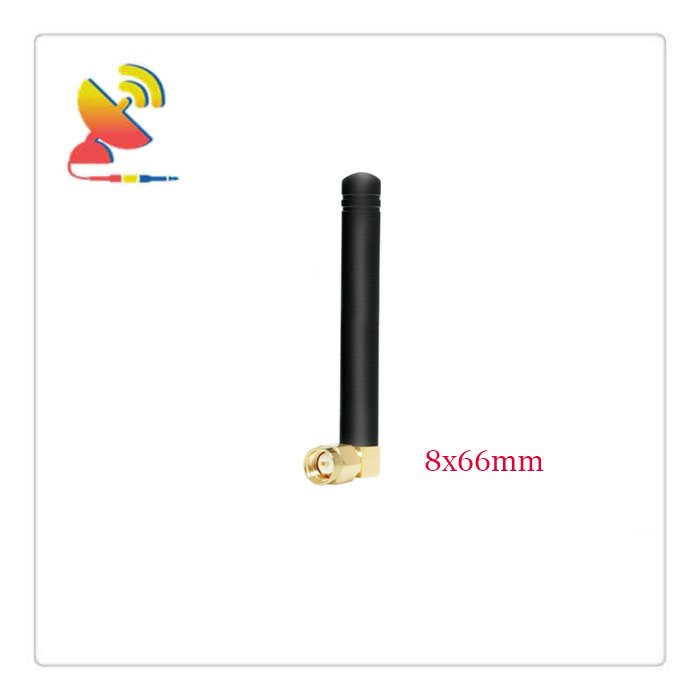

Item: CTRF-ANTENNA-AP-7027-0866-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: White
Dimension: Φ8x66mm
Item: CTRF-ANTENNA-AP-7027-10110-SMAS
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ10x110mm

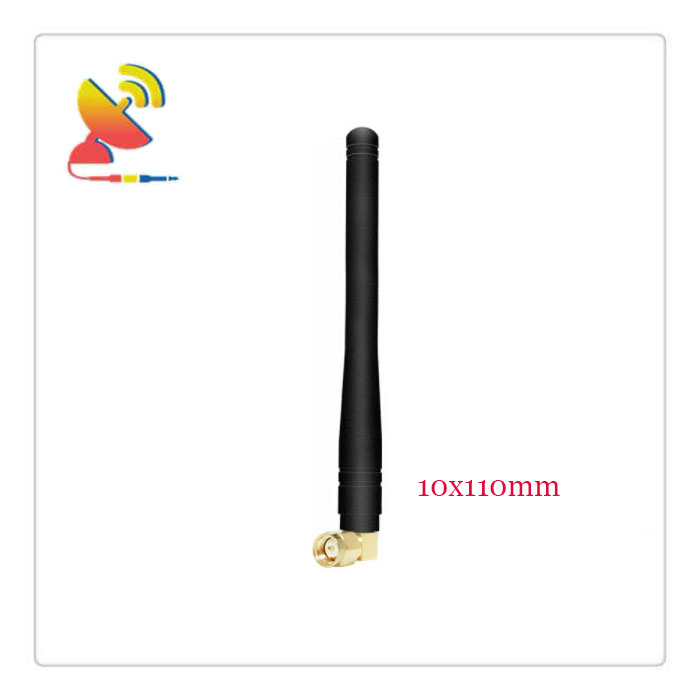

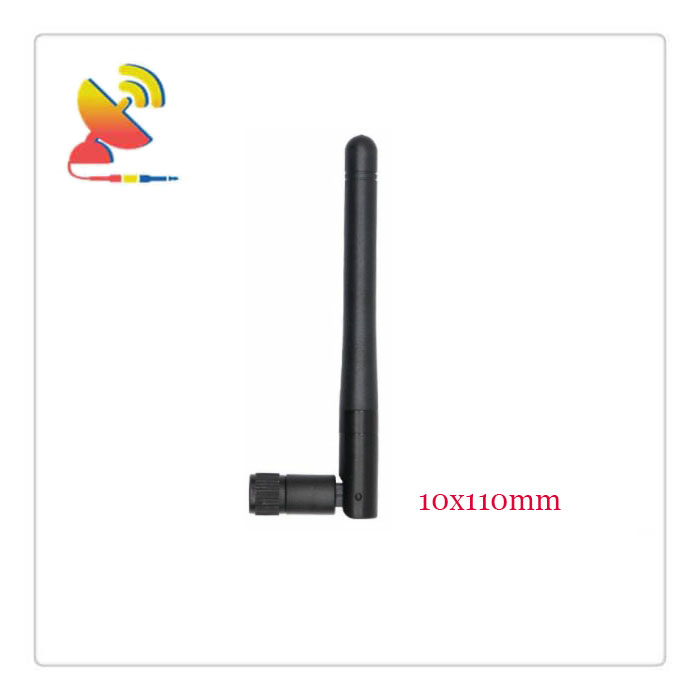

Item: CTRF-ANTENNA-AP-7027-10110-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male RIght-Angle
Color: Black
Dimension: Φ10x110mm

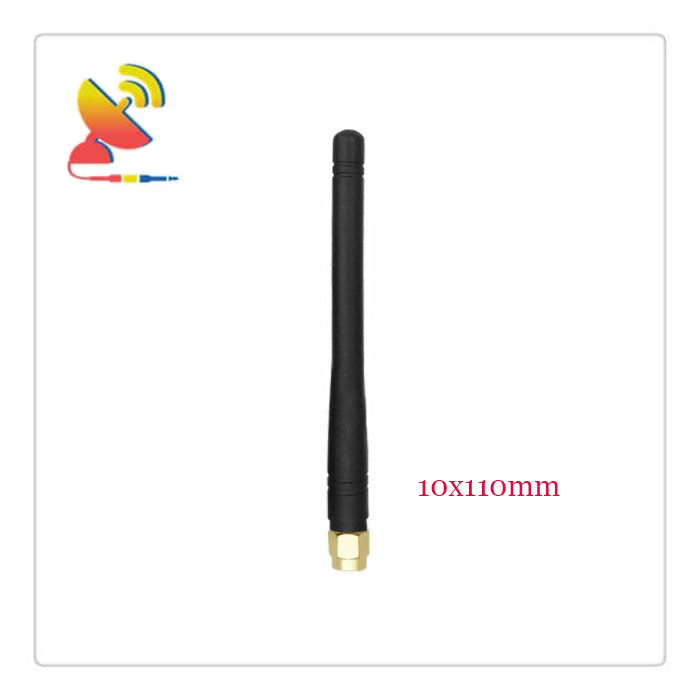

Item: CTRF-ANTENNA-AP-7027-10110B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ10x110mm

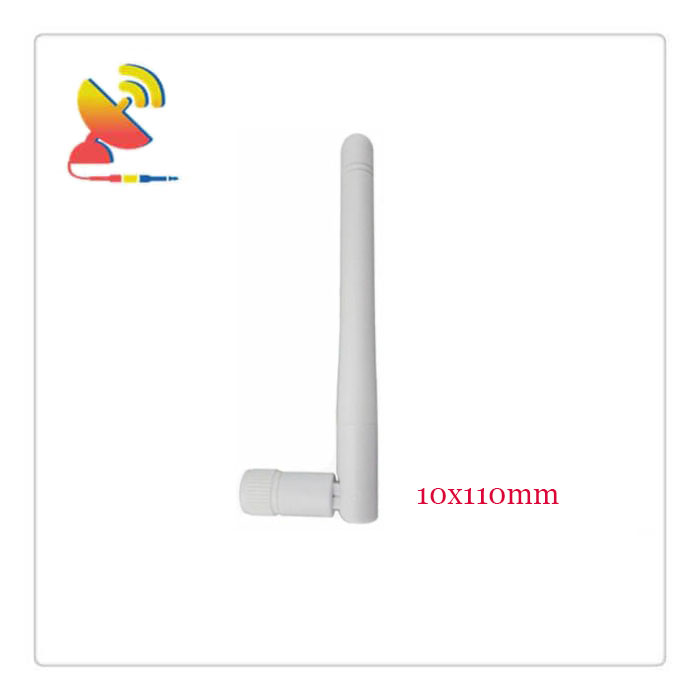

Item: CTRF-ANTENNA-AP-7027-10110W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ10x110mm

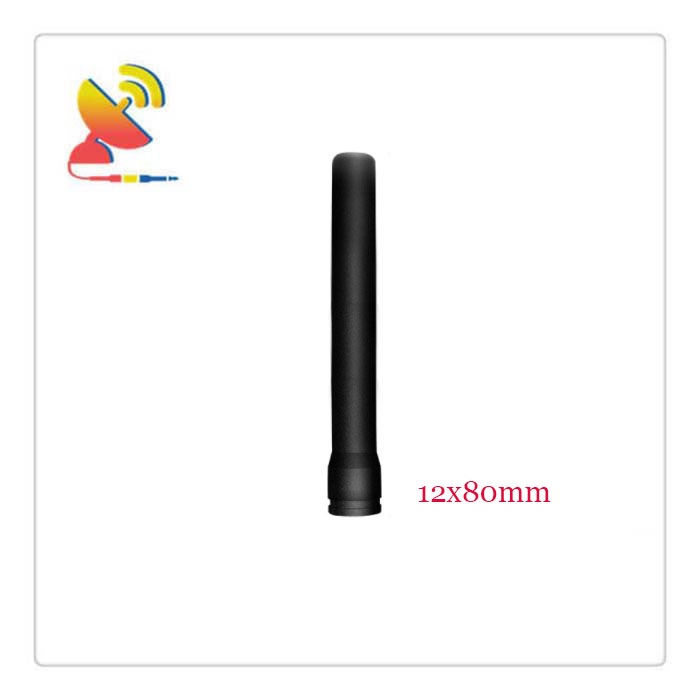

Item: CTRF-ANTENNA-AP-7027-1280-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ12x80mm

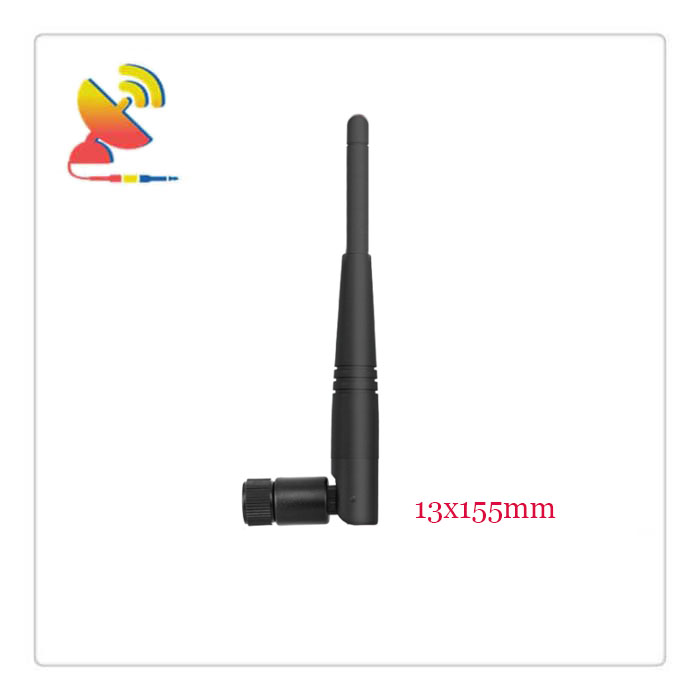

Item: CTRF-ANTENNA-AP-7027-13155B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x155mm

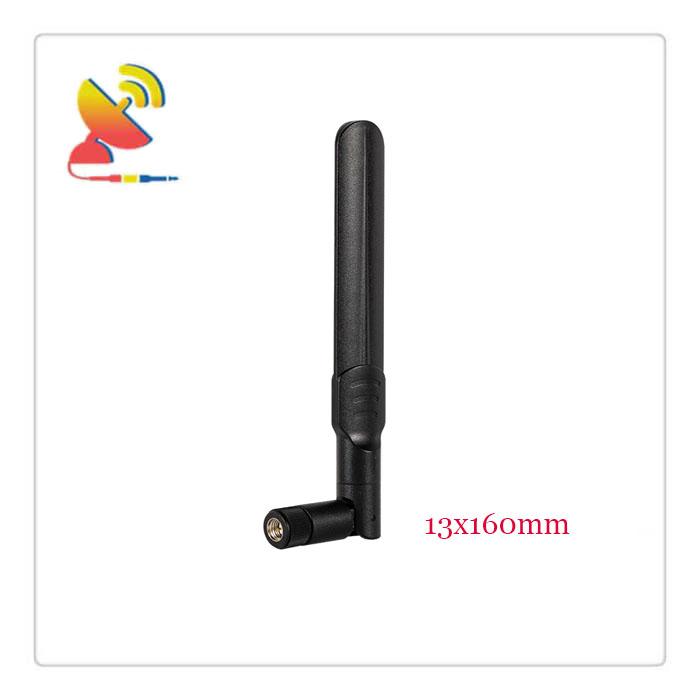

Item: CTRF-ANTENNA-AP-7027-13160B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x160mm

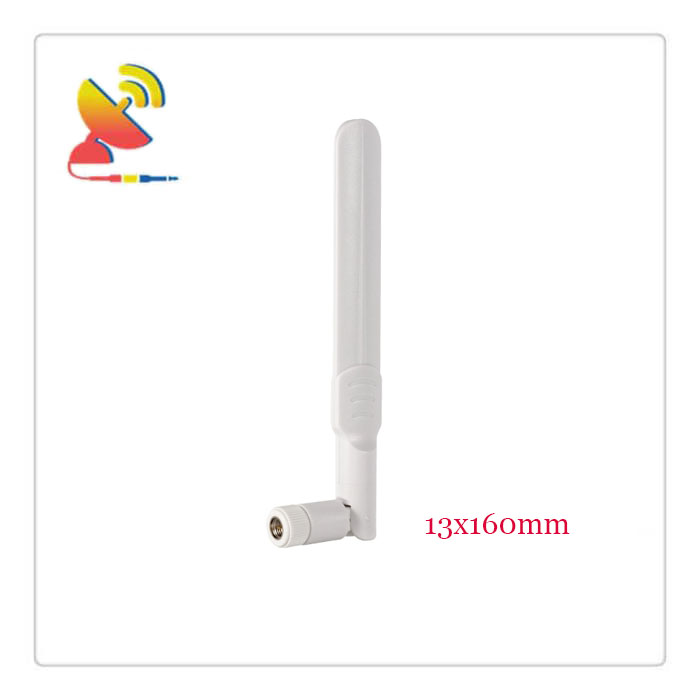

Item: CTRF-ANTENNA-AP-7027-13160W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x160mm

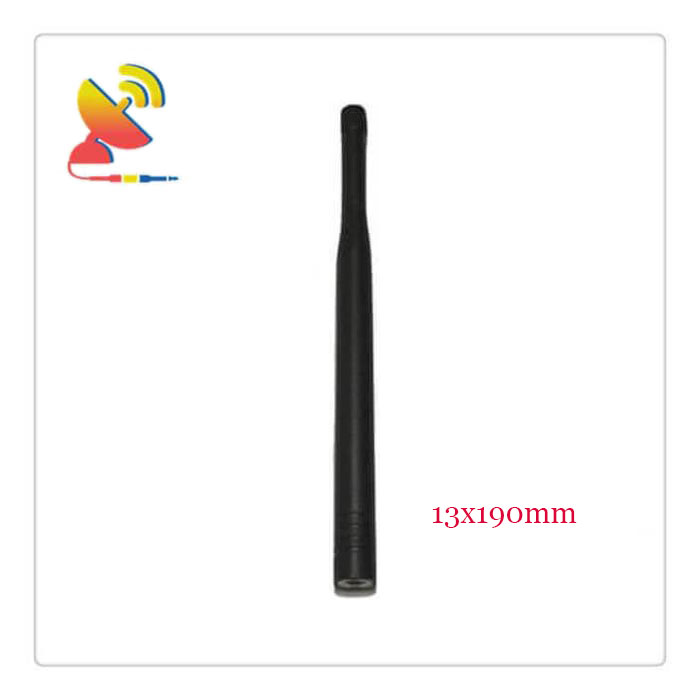

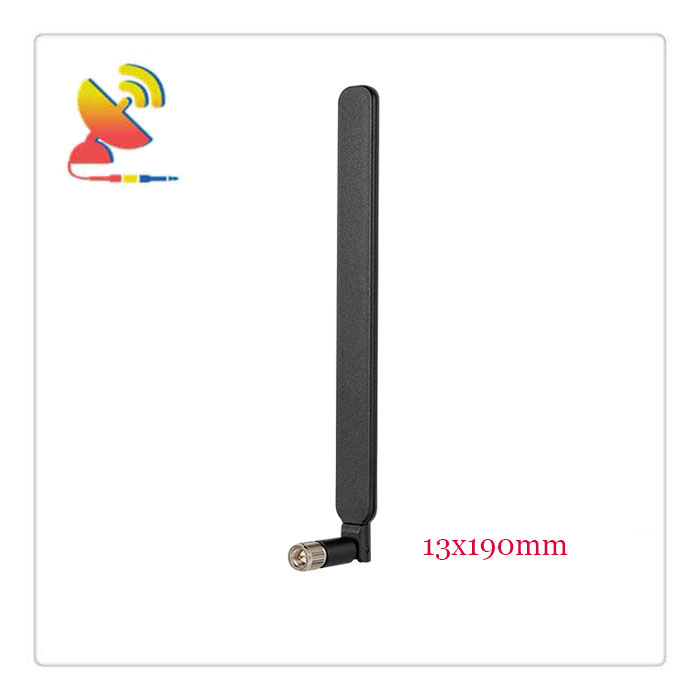

Item: CTRF-ANTENNA-AP-7027-13190-SMAS
Specifications:
Material: Plastic TPEE
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x190mm

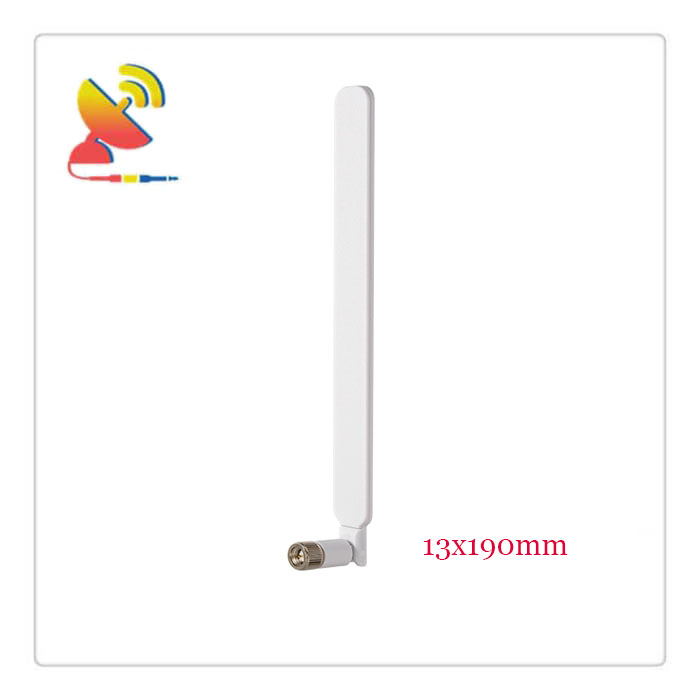

Item: CTRF-ANTENNA-AP-7027-13190W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x190mm
Item: CTRF-ANTENNA-AP-7027-13190B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x190mm

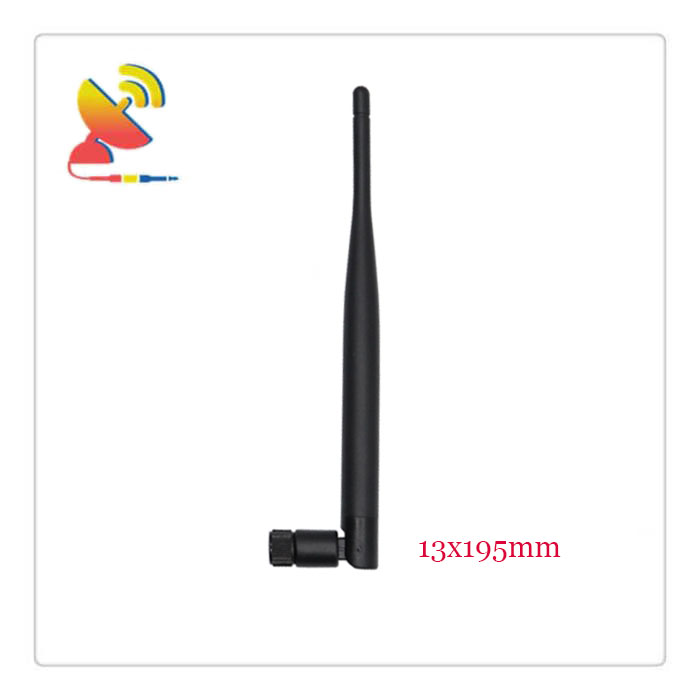

Item: CTRF-ANTENNA-AP-7027-13195B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x195mm

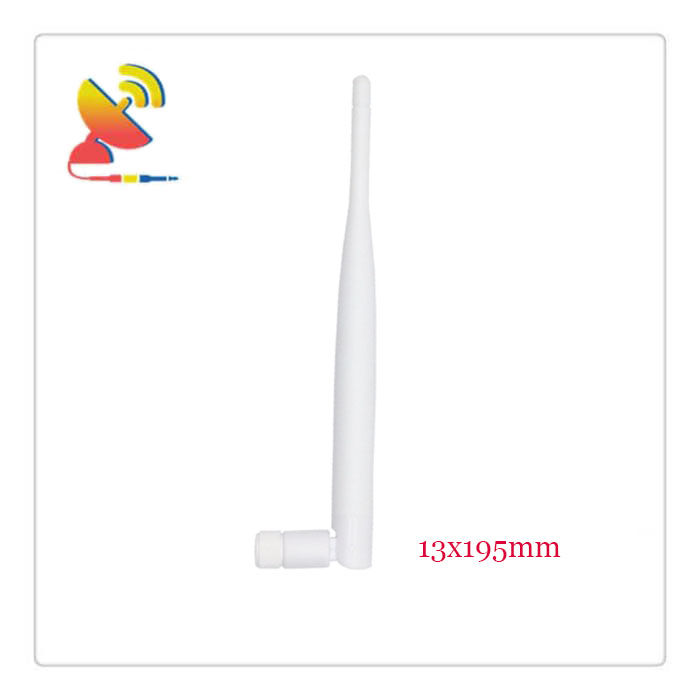

Item: CTRF-ANTENNA-AP-7027-13195W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x195mm

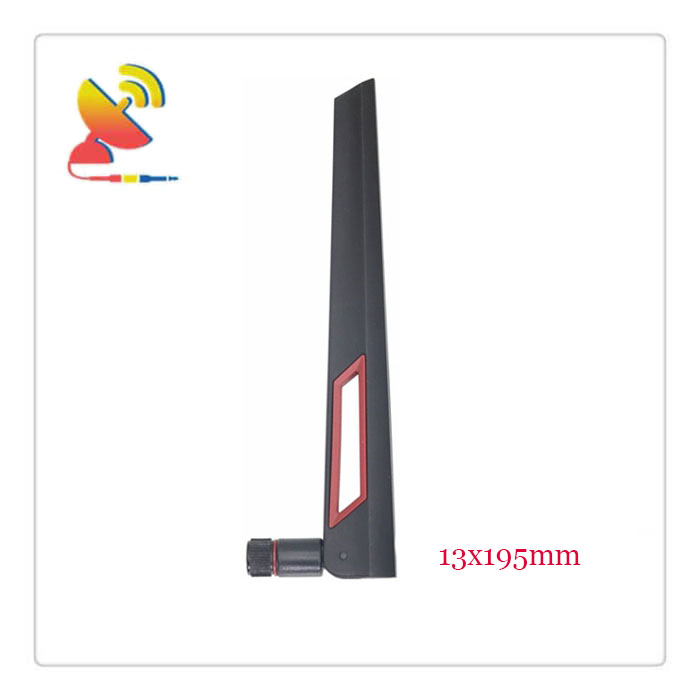

Item: CTRF-ANTENNA-AP-7027-13195-SMAR
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 4/6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x195mm
Item: CTRF-ANTENNA-AP-7027-13195-SMAB
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 5/7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x195mm

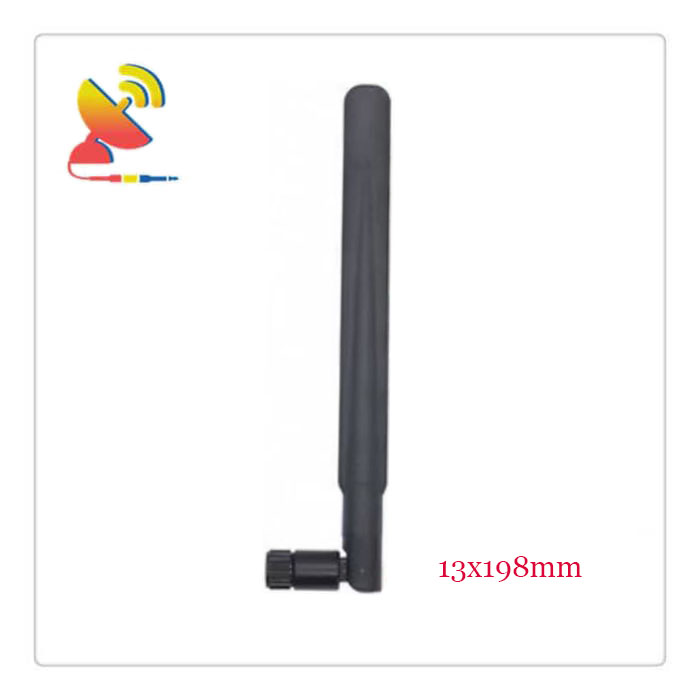

Item: CTRF-ANTENNA-AP-7027-13198-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x198mm

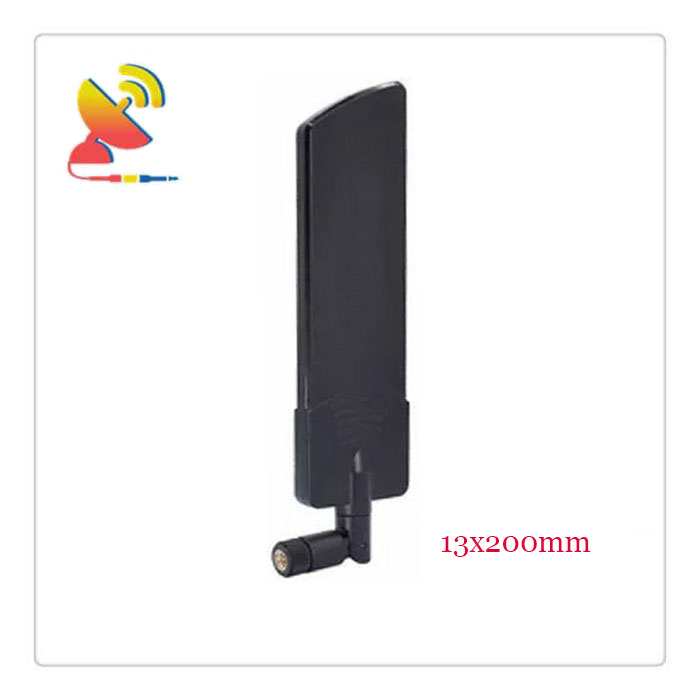

Item: CTRF-ANTENNA-AP-7027-13200B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x200mm

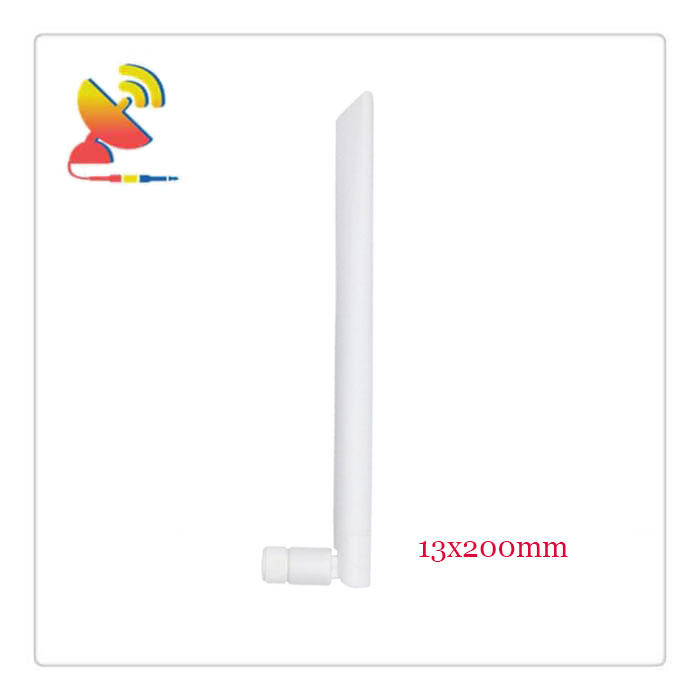

Item: CTRF-ANTENNA-AP-7027-13200W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x200mm
Item: CTRF-ANTENNA-AP-7027-13200B-SMAB
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 6/8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x200mm

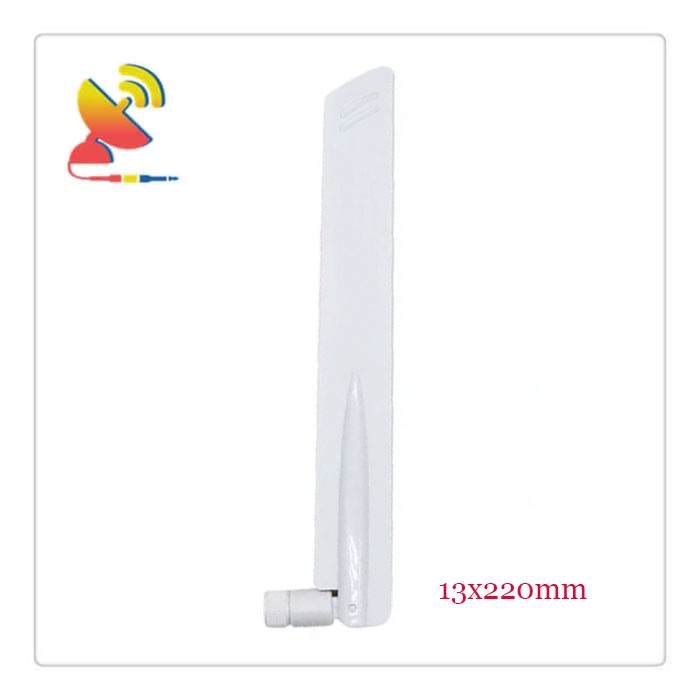

Item: CTRF-ANTENNA-AP-7027-13220W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 6/8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x220mm
Item: CTRF-ANTENNA-AP-7027-13220B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 6/8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x220mm

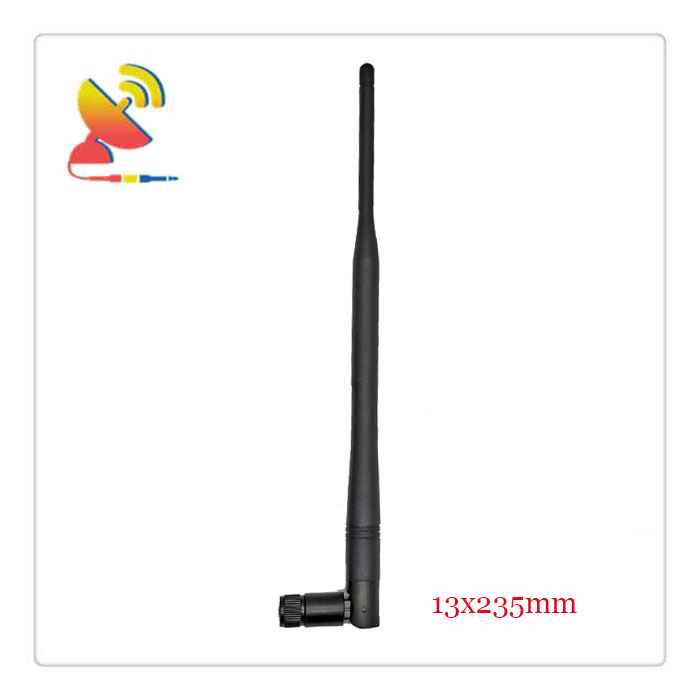

Item: CTRF-ANTENNA-AP-7027-13235-SMA
Specifications:
Material: Plastic ABS
Frequency range: 698-960 MHz, 1710-2700 MHz
Gain: 5/7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x235mm
Besides the rubber duck antennas, C&T RF Antennas Inc. also offers 4G/LTE antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas. etc. Contact us for more specs you need.
