High-performance 4G/LTE PCB Antennas

What are the 4G/LTE PCB Antennas?

The high-performance 4G/LTE PCB antennas are internal cellular printed circuit board antennas manufactured by C&T RF Antennas Inc. for 2G, 3G, 4G, GSM, CBRS, PCB, UMTS, and LTE cellular modems, routers, and gateways for IoT and M2M industries.

The 4G/LTE PCB antennas are mainly with low-loss RG cable 1.13 100-130mm common length and RF connectors IPEX1/MHF4 or opening-ends for 4G/3G/2G/ISM/IoT/M2M applications. Ideal as an accessory for 4G/LTE modules, devices, etc.

Besides the high-performance 4G/LTE PCB antennas, we also provide 13.56 MHz PCB antennas, 433MHz PCB antennas, single-band 868MHz/915MHz PCB antennas, dual-band 868/915MHz PCB antennas, LTE-M/NB-IoT/3G GSM PCB antennas, WiFi 2..4GHz/2.4&5GHz PCB antennas, 4GLTE/5GNR/3.5G CBRS PCB antennas, and GNSS/GPS PCB antennas for your choice.

C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.

The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.





Performance Characteristics of The High-performance 4G/LTE PCB Antennas

Frequency range

The frequency range of 4G/LTE PCB antennas usually covers 698MHz～960MHz/1710MHz～2690MHz, which is suitable for both 4G/LTE communication networks.

Impedance matching

To ensure lossless transmission of RF signals, the characteristic impedance of the 4G/LTE PCB antennas is usually designed to be 50 ohms to reduce reflection and signal loss.

Efficiency

4G PCB antennas are more efficient in the 4G/LTE frequency band and can provide stable signal transmission performance.

Size and mounting

4G/LTE PCB antennas are usually designed to be compact for easy layout and mounting inside the device. Its size and shape can be customized according to specific application requirements.

etc.





Applications of The High-performance 4G/LTE PCB Antennas

The High-performance 4G/LTE PCB Antennas are suitable for various 4G communication devices, such as smartphones, tablets, wireless routers, etc. It can ensure stable signal transmission and reduce signal attenuation and interference.

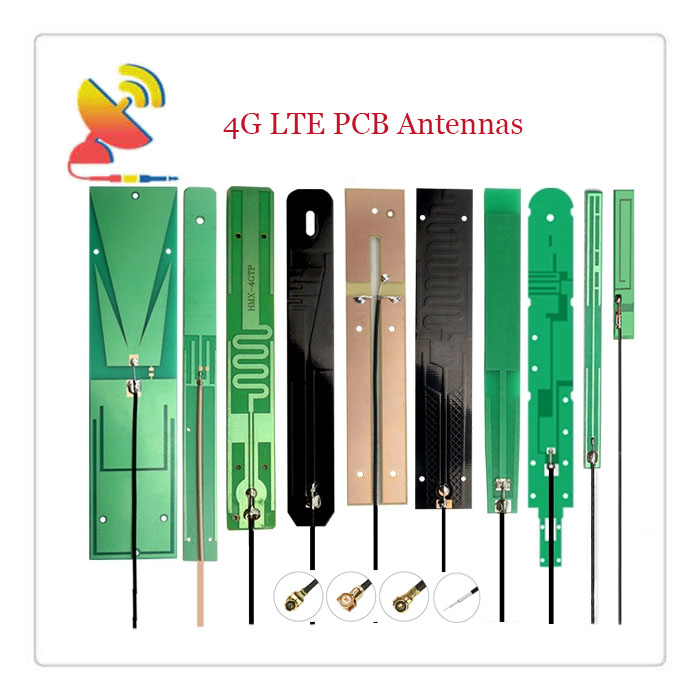

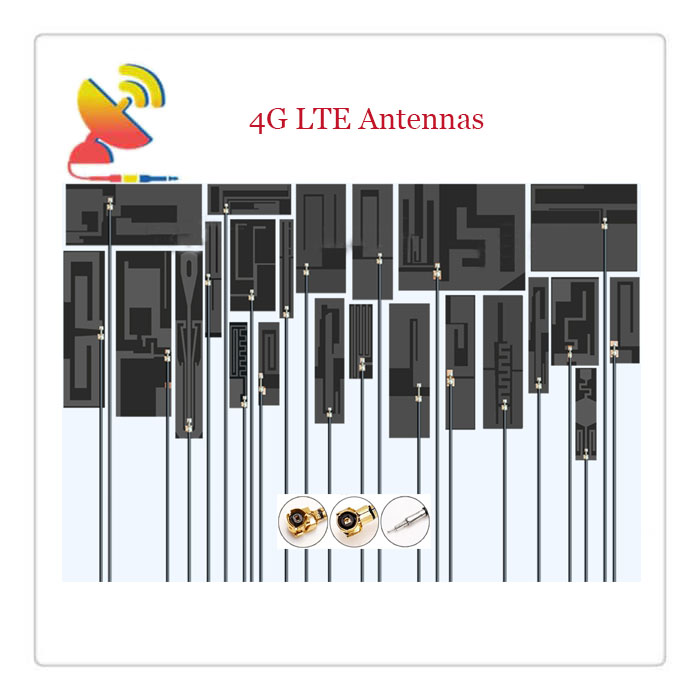

Types of High-performance 4G/LTE PCB Antennas

C&T RF Antennas Inc. provides high-performance 4G/LTE PCB antennas. Below are some of them.

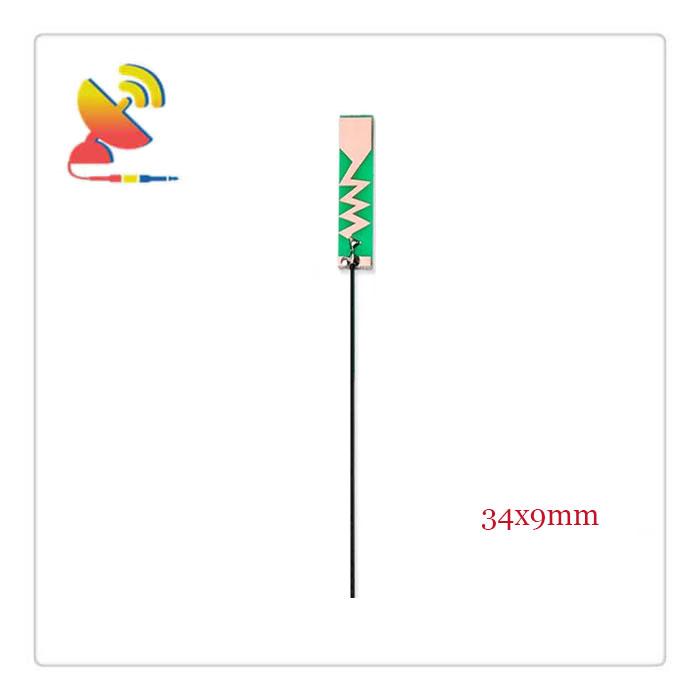

Item: CTRF-ANTENNA-PCB-7027-3409-IPEX

High-performance Small-Size GSM 4G LTE PCB Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ34x9mm

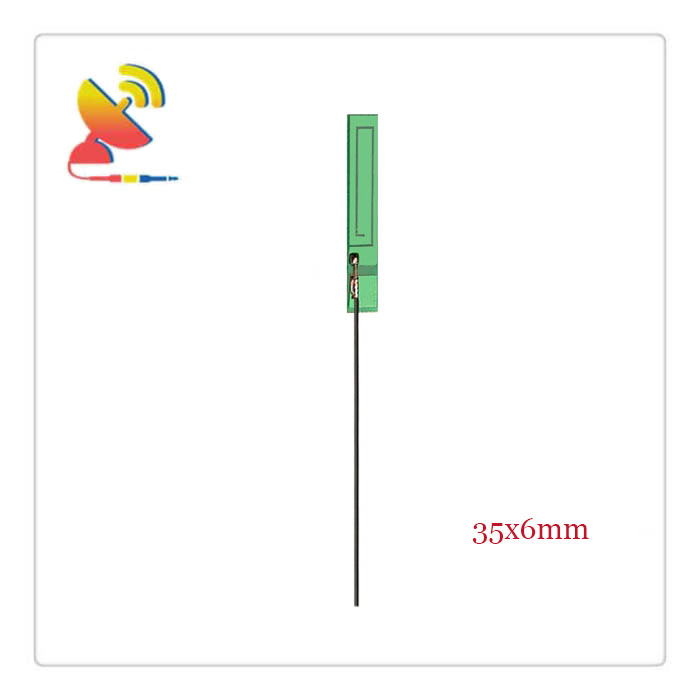

Item: CTRF-ANTENNA-PCB-7027-3506-IPEX

High-performance Small LTE Full-Band PCB Antenna IPEX u.FL Connector Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ35x6mm

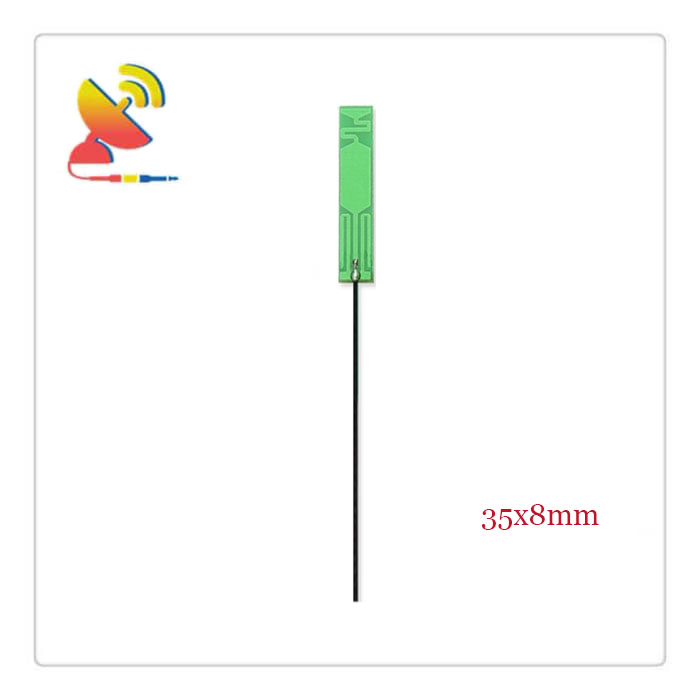

Item: CTRF-ANTENNA-PCB-7027-3508-IPEX

High-performance Small Built-in Antenna Circuit Board 4G LTE Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 2dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ35x8mm

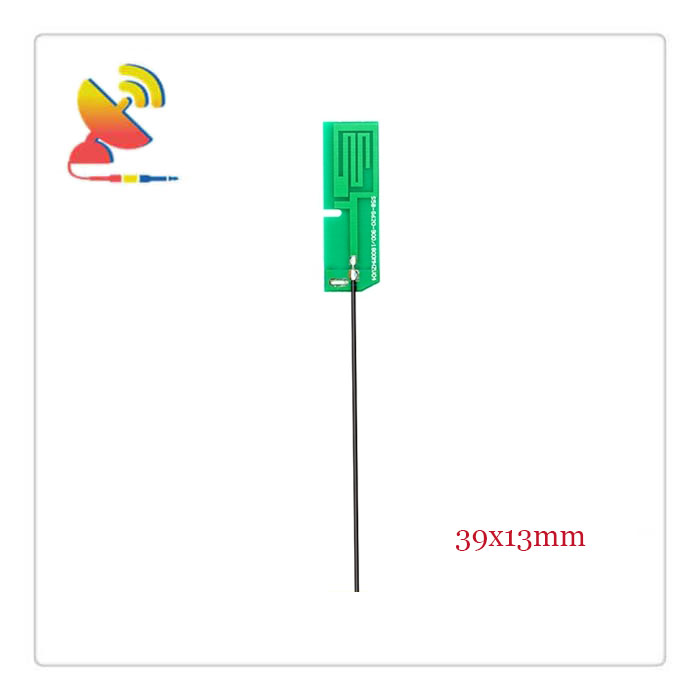

Item: CTRF-ANTENNA-PCB-7027-3913-IPEX

High-performance Compact-size GSM LTE PCB Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 2/4dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ39x13mm

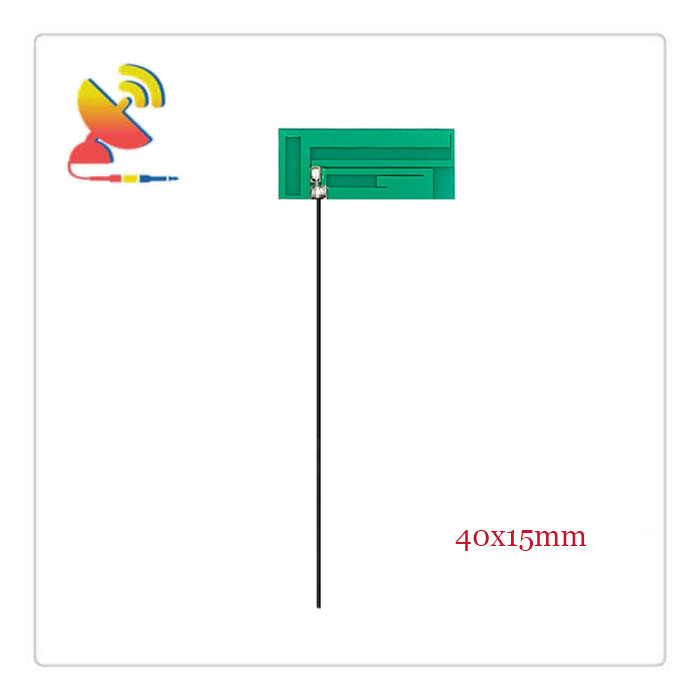

Item: CTRF-ANTENNA-PCB-7027-4015-IPEX

High-performance PCB LTE 4G Embedded Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 2/4dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Linear

Connector: IPEX

Color: Green

Dimension: Φ40x15mm

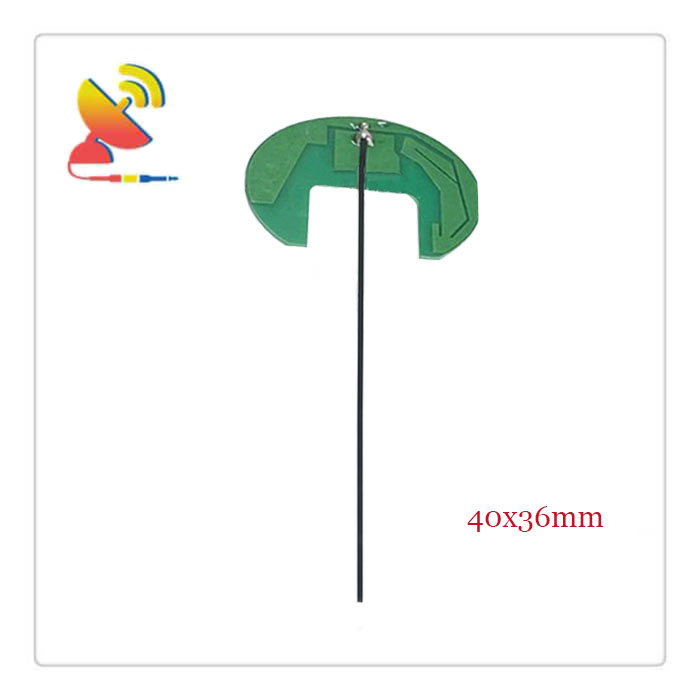

Item: CTRF-ANTENNA-PCB-7027-4036-IPEX

High-performance Customized Embedded PCB 4G LTE Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 3/5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Linear

Connector: IPEX

Color: Green

Dimension: Φ40x36mm

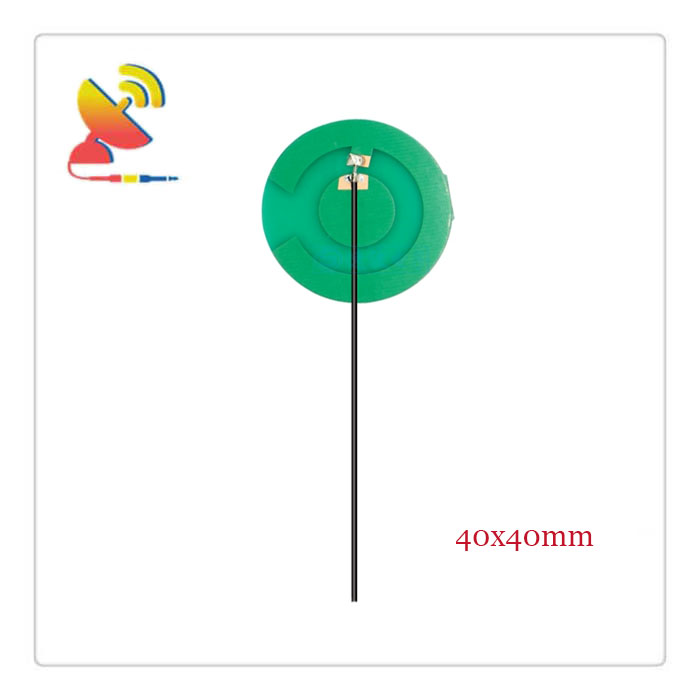

Item: CTRF-ANTENNA-PCB-7027-4040-IPEX

High-performance LTE Antenna PCB 4G Cellular Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 3/5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ40x40mm

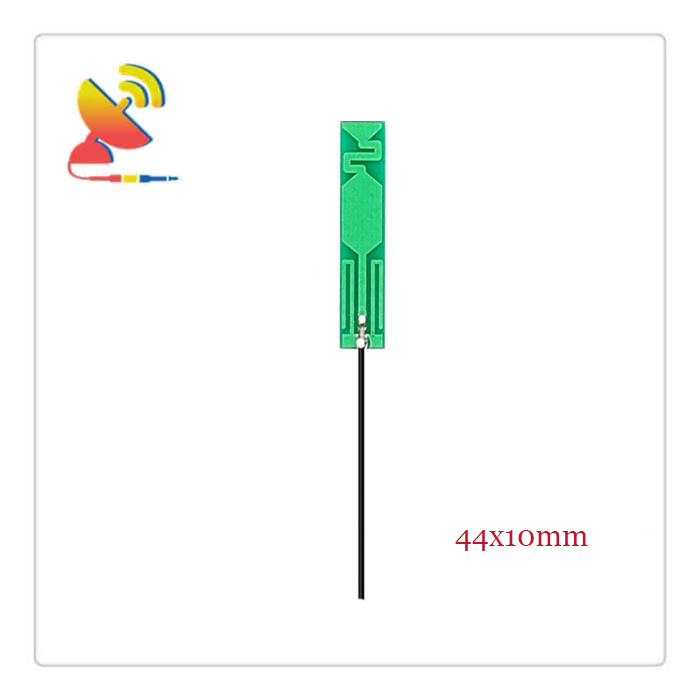

Item: CTRF-ANTENNA-PCB-7027-4410-IPEX

High-performance LTE Antenna PCB 4G Cellular Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 3/5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ44x10mm

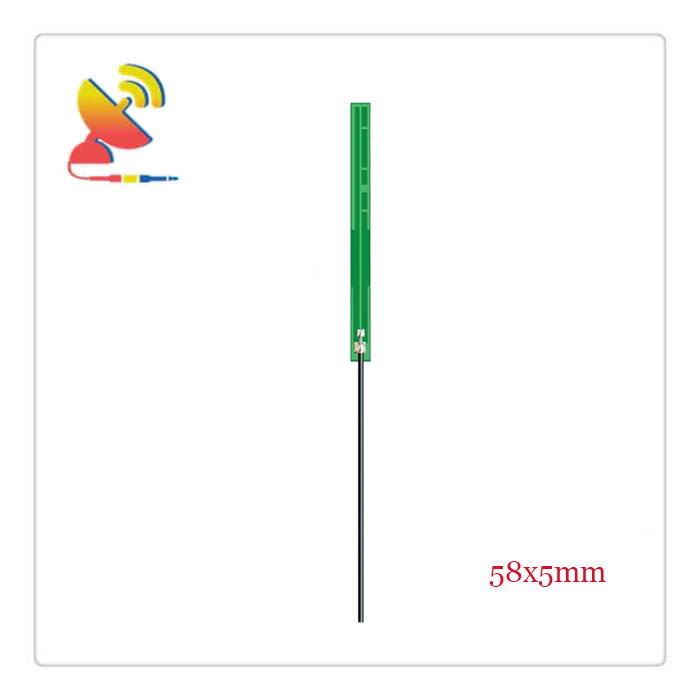

Item: CTRF-ANTENNA-PCB-7027-5805-IPEX

High-performance Low-profile 3G 4G Cellular PCB Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 3/5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ58x5mm

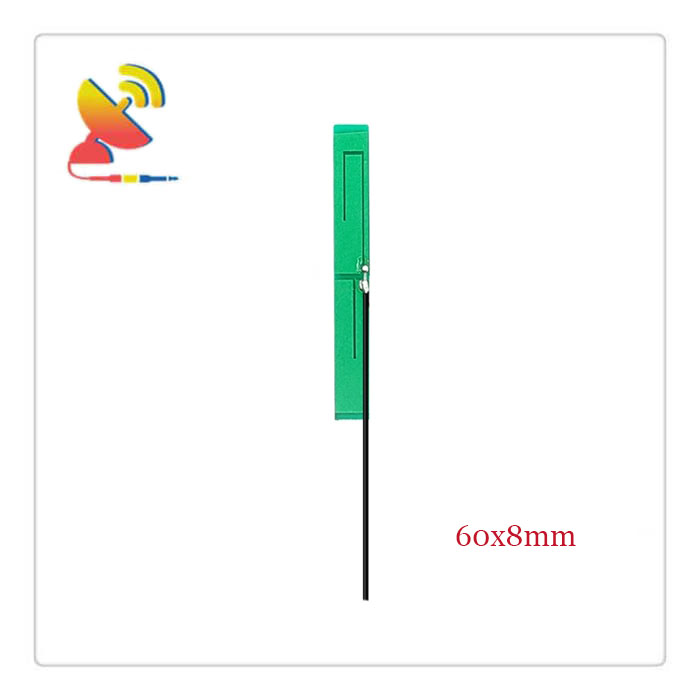

Item: CTRF-ANTENNA-PCB-7027-6008-IPEX

High-performance 4G LTE Antenna Internal PCB Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 3/5dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ60x8mm

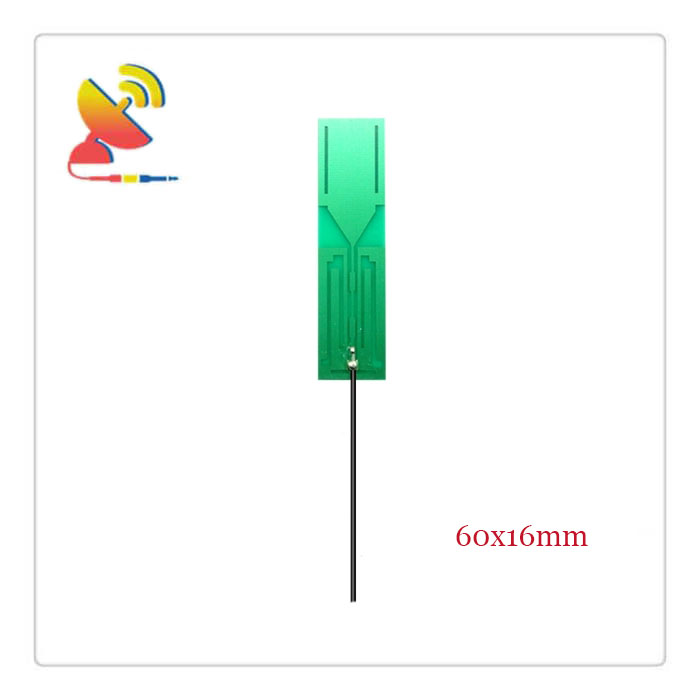

Item: CTRF-ANTENNA-PCB-7027-6016-IPEX

High-performance Internal NB-IoT 4G LTE PCB Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ60x16mm







Item: CTRF-ANTENNA-PCB-7027-6017-IPEX

High-performance Internal 2G 3G 4G LTE Antenna Intenal PCB Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Linear

Connector: IPEX

Color: Green

Dimension: Φ60x17mm

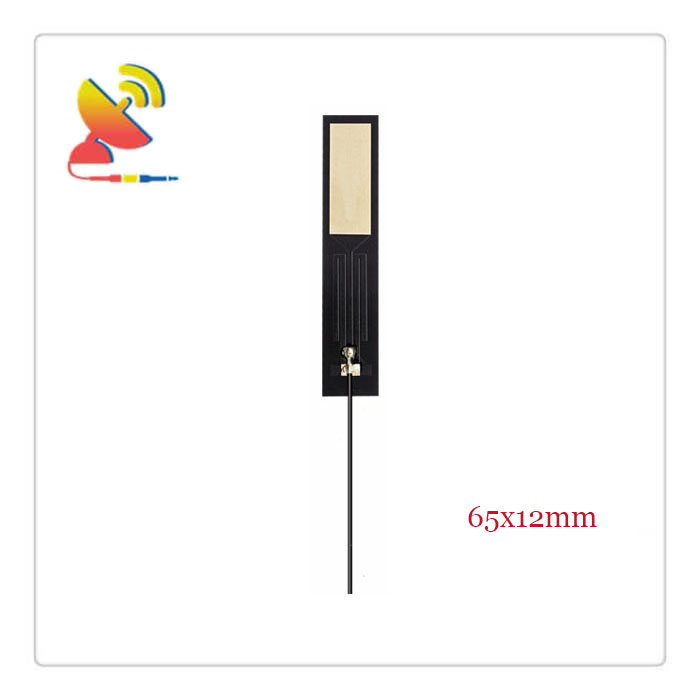

Item: CTRF-ANTENNA-PCB-7027-6512-IPEX

High-performance Internal 4G LTE IPEX Antenna Built-in PCB Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ65x12mm

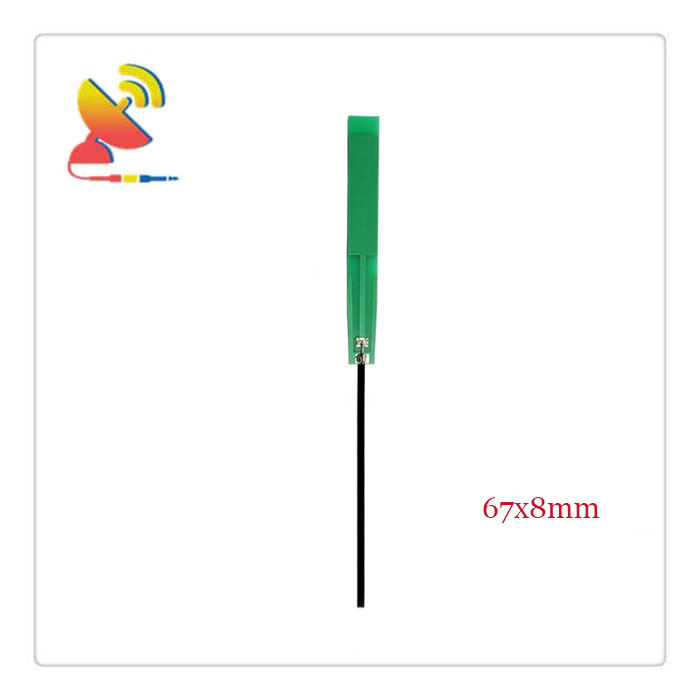

Item: CTRF-ANTENNA-PCB-7027-6708-IPEX

High-performance Internal LTE 4G Internal PCB Antenna Module Aerial

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ67x8mm







Item: CTRF-ANTENNA-PCB-7027-7013-IPEX

High-performance Internal LTE 4G 3G PCB Antenna Built-in Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ70x13mm

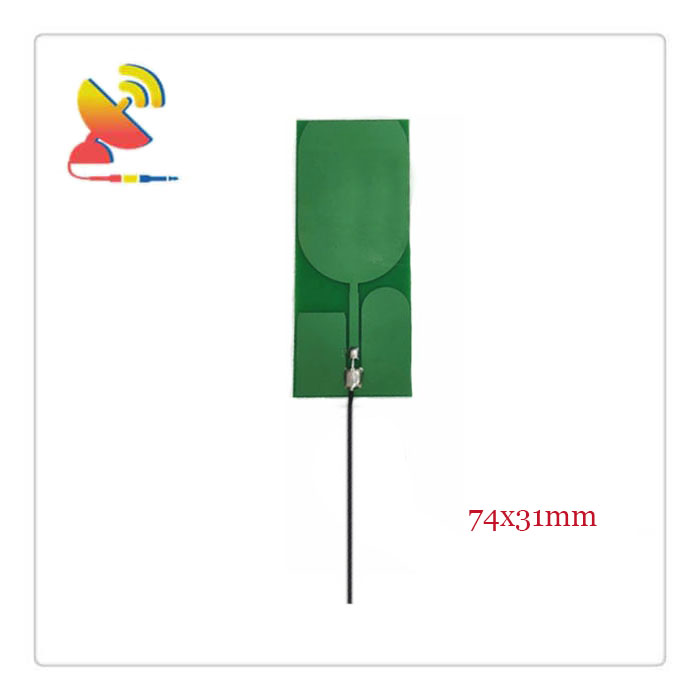

Item: CTRF-ANTENNA-PCB-7027-7431-IPEX

High-performance Internal GSM GPRS 3G 4G LTE NB-IoT Cat-M PCB Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ74x31mm

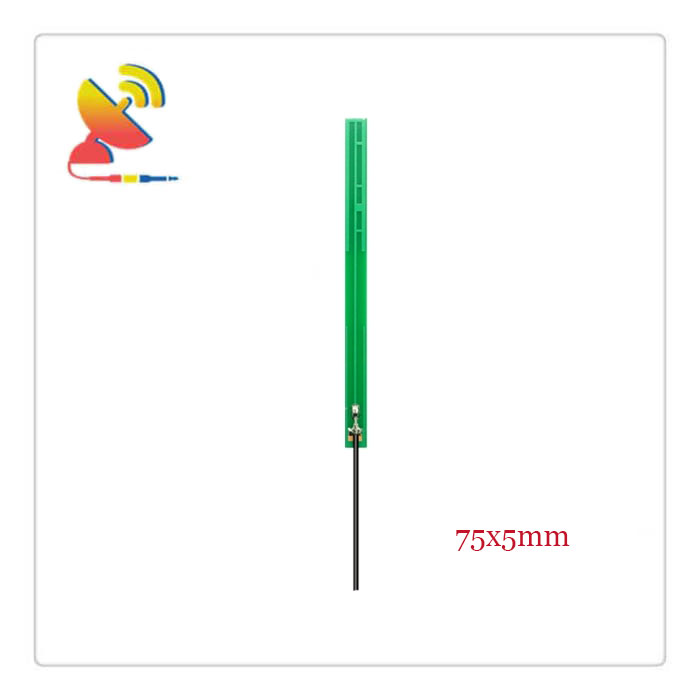

Item: CTRF-ANTENNA-PCB-7027-7505-IPEX

High-performance Small-size PCB Multi Band Cat-M NB-IoT GSM LTE Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 4/6dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ75x5mm

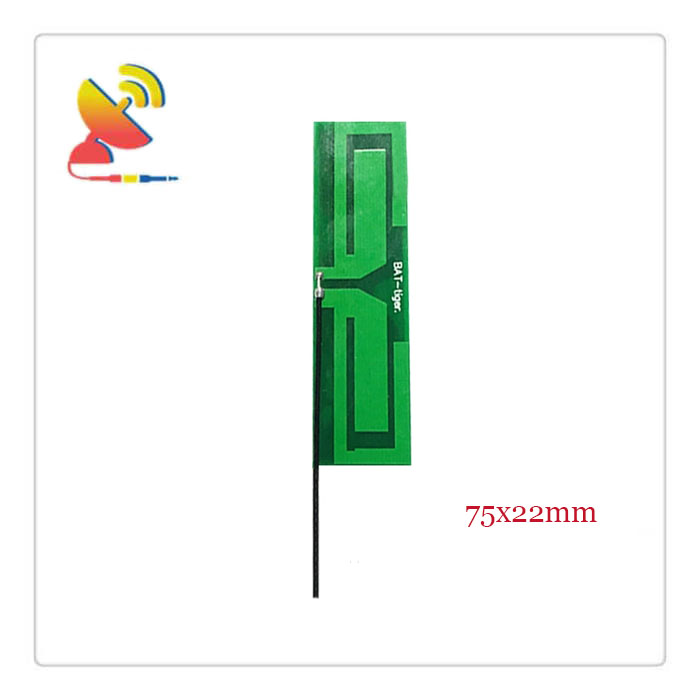

Item: CTRF-ANTENNA-PCB-7027-7522-IPEX

High-performance Internal 4G LTE PCB Dipole Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ75x22mm

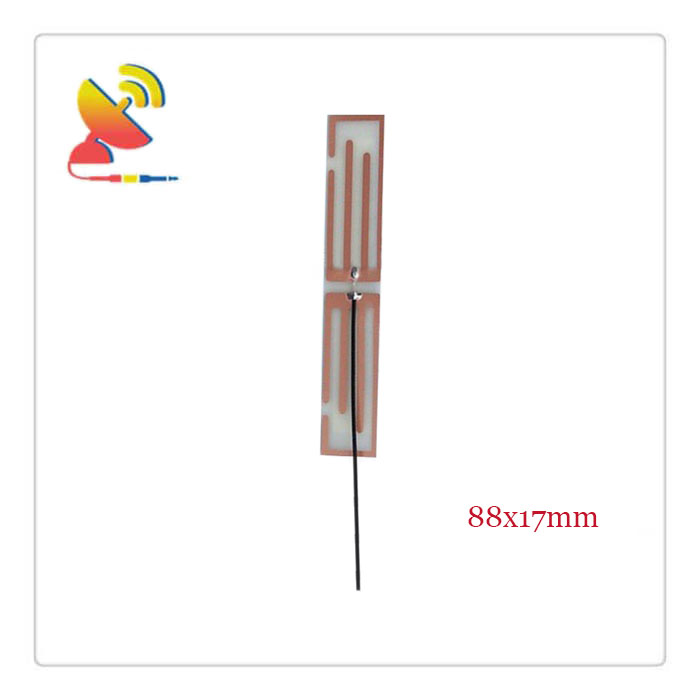

Item: CTRF-ANTENNA-PCB-7027-8817-IPEX

High-performance Internal GSM 3G 4G LTE Internal PCB Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Brown

Dimension: Φ88x17mm

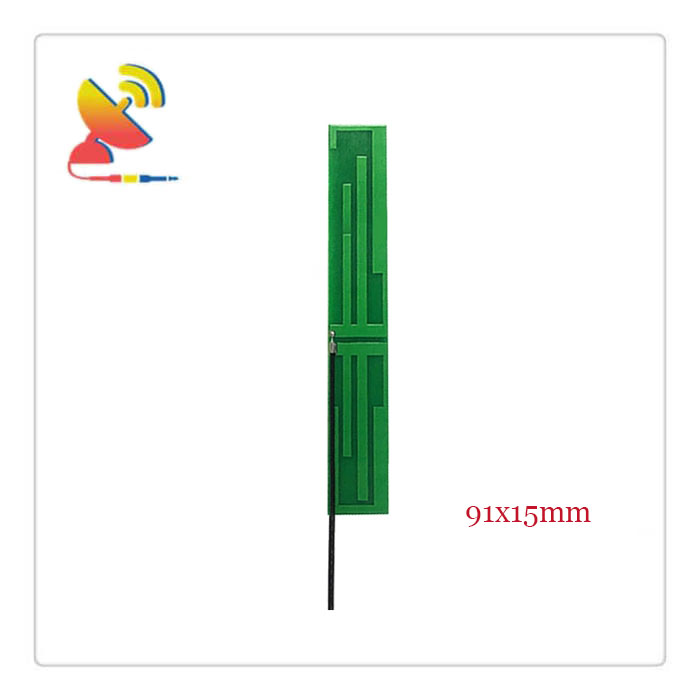

Item: CTRF-ANTENNA-PCB-7027-9115-IPEX

High-performance & High-gain 3G 4G LTE GSM PCB Board Built-in Ipex Connector Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ91x15mm

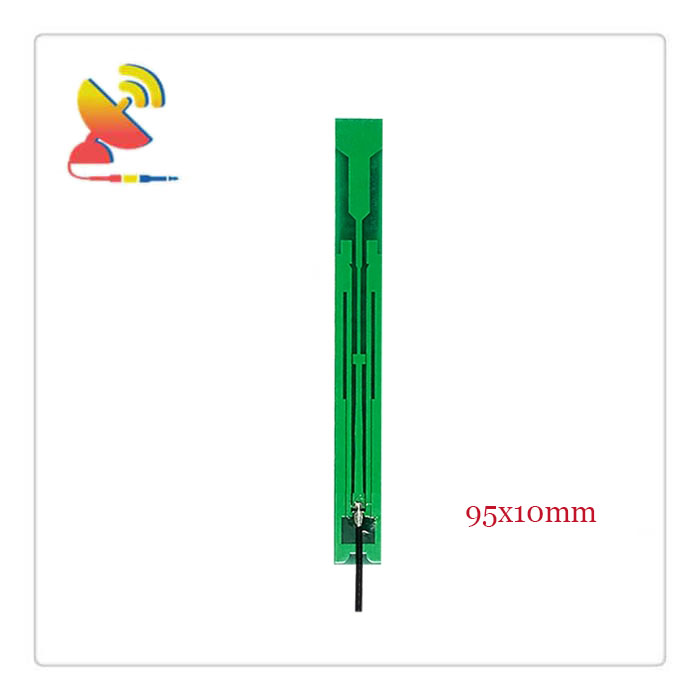

Item: CTRF-ANTENNA-PCB-7027-9510-IPEX

High-performance & High-gain 3G 4G LTE Cellular Multiband PCB Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ95x10mm

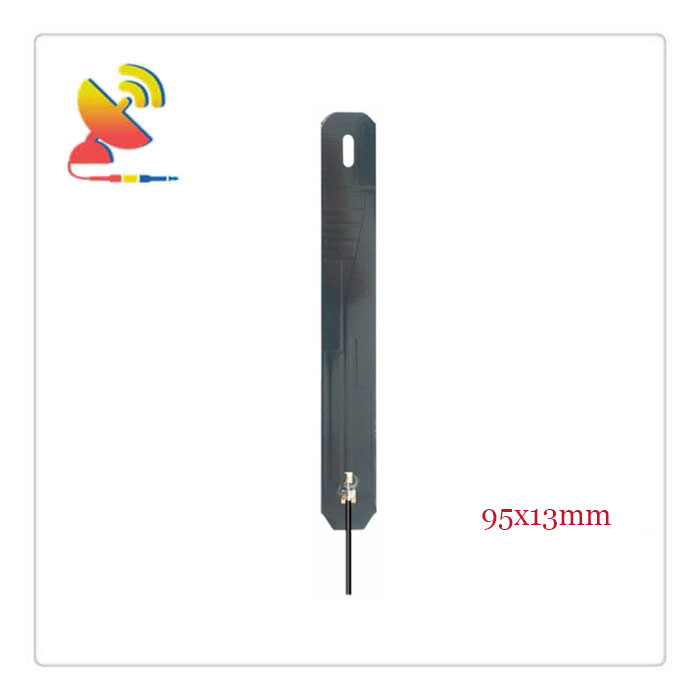

Item: CTRF-ANTENNA-PCB-7027-9513-IPEX

High-performance & High-gain LTE PCB 4G Cellular Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ95x13mm

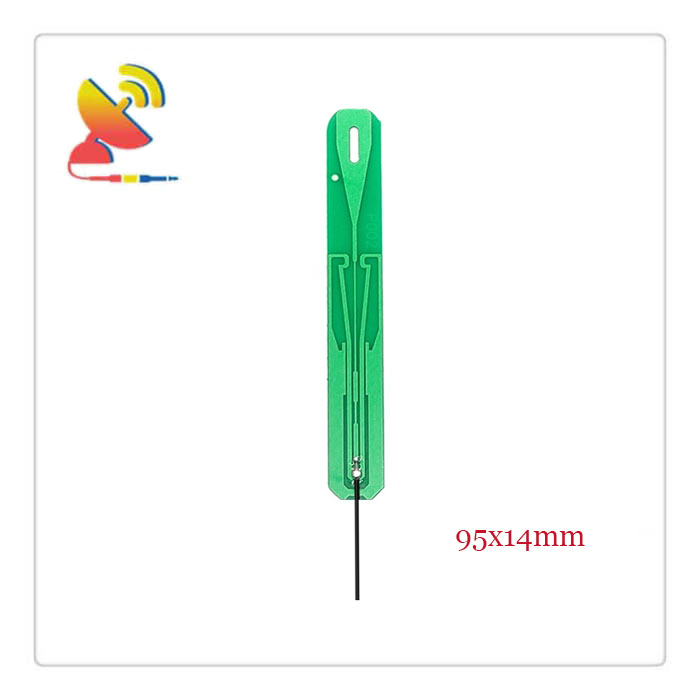

Item: CTRF-ANTENNA-PCB-7027-9514-IPEX

High-performance & High-gain Cellular 3G 4G LTE PCB Antenna Embedded Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ95x14mm

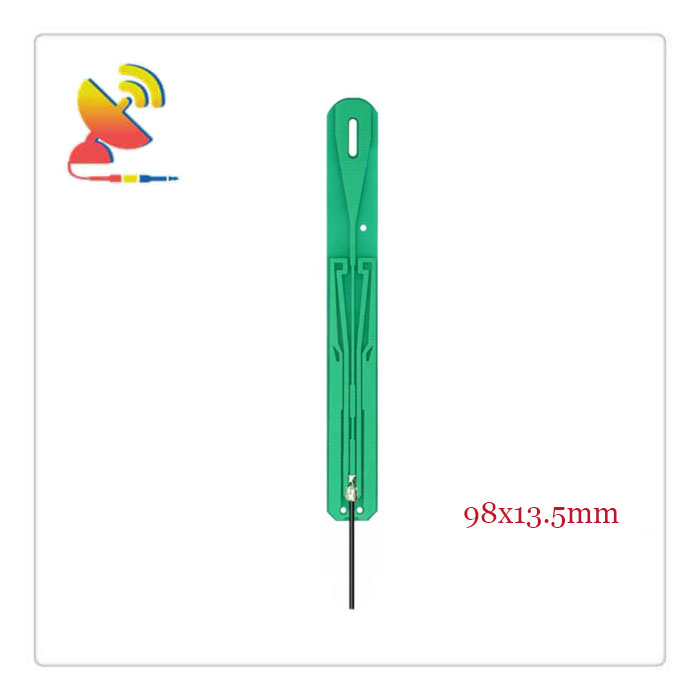

Item: CTRF-ANTENNA-PCB-7027-9813-IPEX

High-performance & High-gain 4G LTE Cellular PCB Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ98×13.5mm

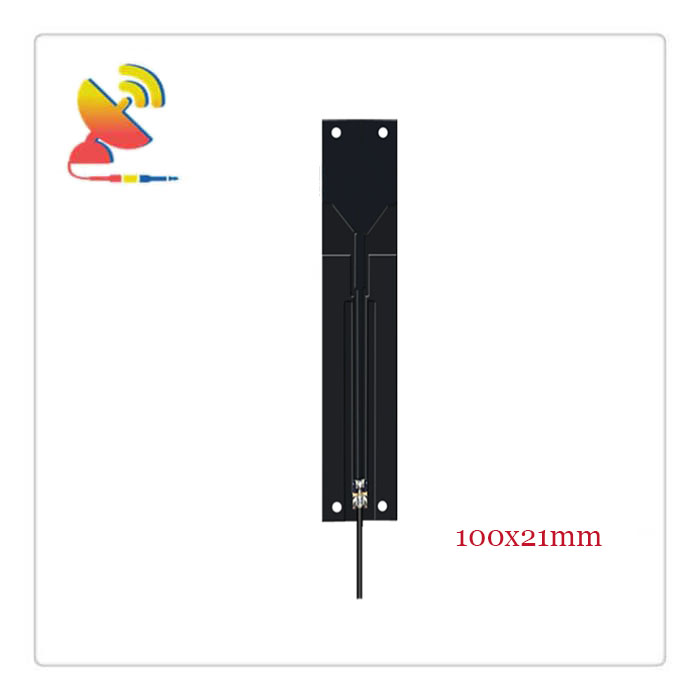

Item: CTRF-ANTENNA-PCB-7027-10021-IPEX

High-performance & High-gain 4G Antenna PCB LTE GSM NB-IoT Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ100x21mm

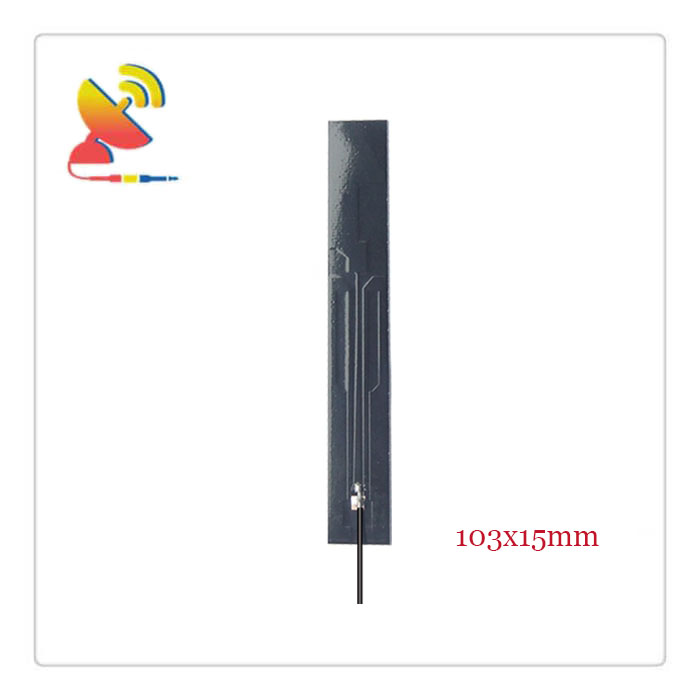

Item: CTRF-ANTENNA-PCB-7027-10315-IPEX

High-performance & High-gain LTE Antenna Printed Circuit Antenna 4G

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ103x15mm

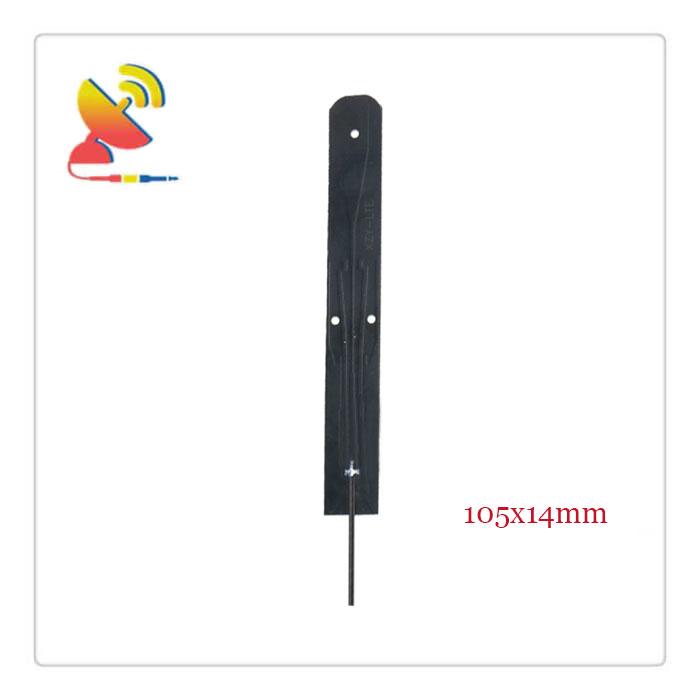

Item: CTRF-ANTENNA-PCB-7027-10514-IPEX

High-performance & High-gain 4G LTE Printed Circuit Board Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ105x14mm

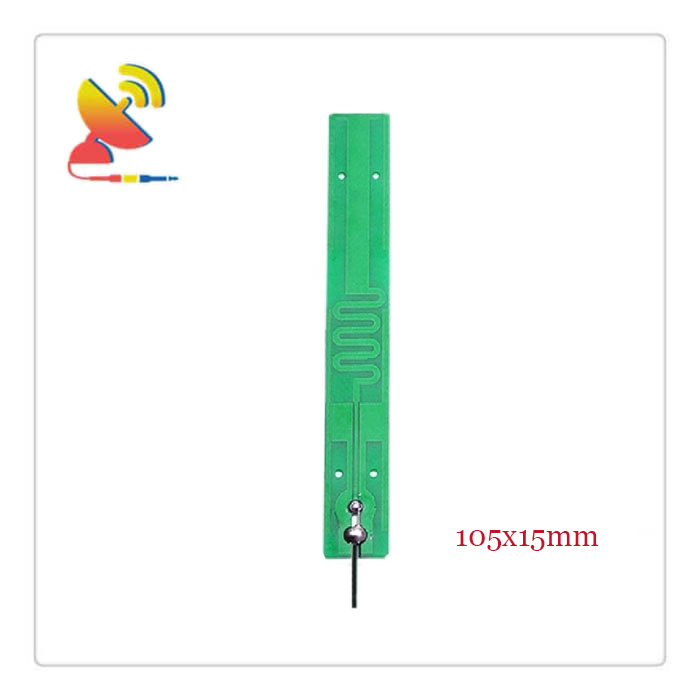

Item: CTRF-ANTENNA-PCB-7027-10515-IPEX

High-performance & High-gain 4G LTE Rigid PCB Cellular Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ105x15mm







Item: CTRF-ANTENNA-PCB-7027-10520-IPEX

High-performance & High-gain 4G PCB Multiband Antenna Cat-M LTE GSM Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Brown

Dimension: Φ105×20.5mm







Item: CTRF-ANTENNA-PCB-7027-10714-IPEX

High-performance & High-gain GSM LTE 4G PCB Antenna Internal Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ107x14mm

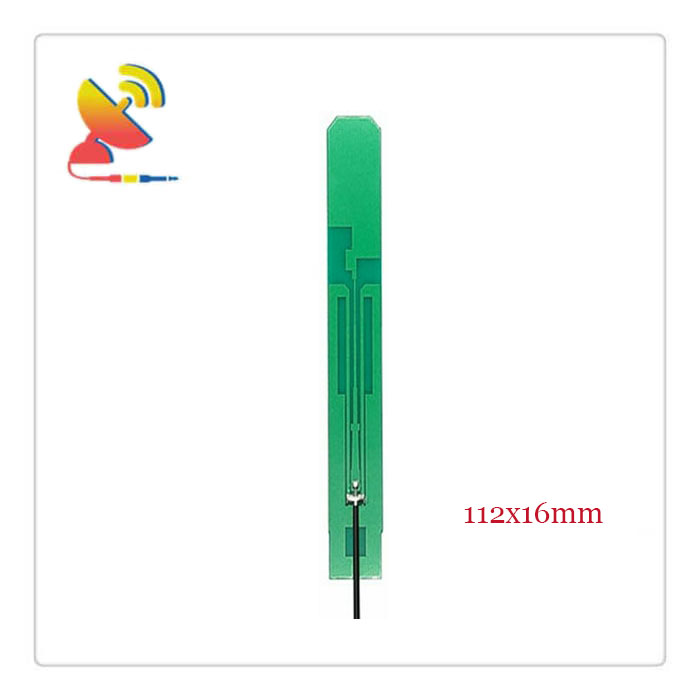

Item: CTRF-ANTENNA-PCB-7027-11216-IPEX

High-performance & High-gain Narrowband GSM LTE Internal PCB Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ112x16mm







Item: CTRF-ANTENNA-PCB-7027-11508-IPEX

High-performance Internal PCB 4G LTE Cat-M NB-IoT PCB Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 5/7dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ115x8mm

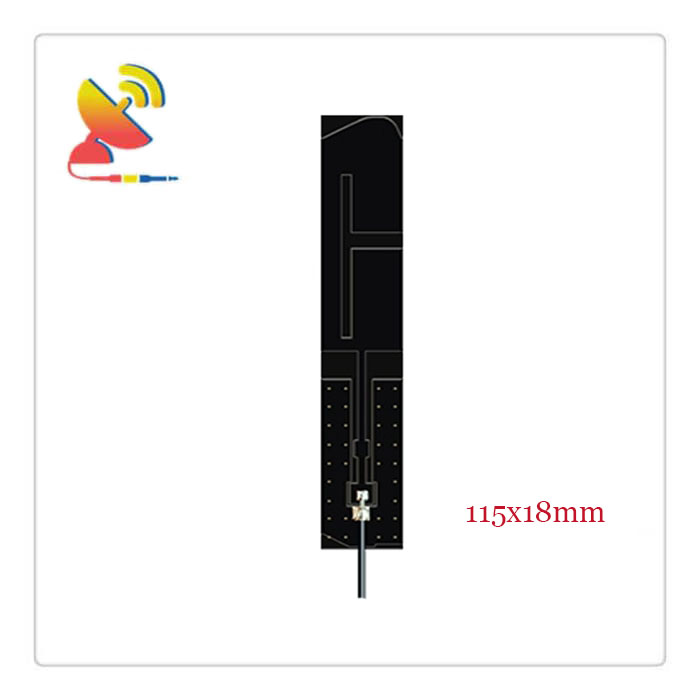

Item: CTRF-ANTENNA-PCB-7027-11518-IPEX

High-performance & High-gain 4G PCB Internal LTE Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 8/10dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Black

Dimension: Φ115x18mm







Item: CTRF-ANTENNA-PCB-7027-12013-IPEX

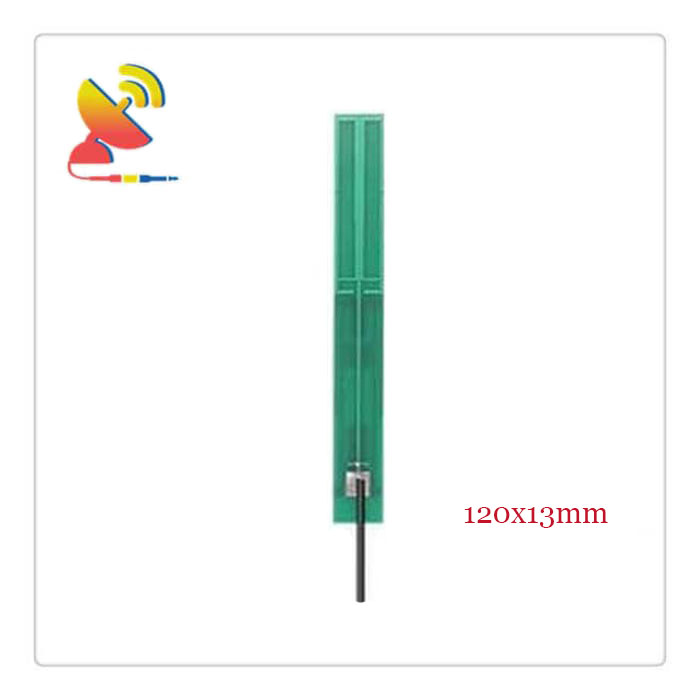

High-performance & High-gain PCB LTE Antenna Cellular Cat-M NB-IoT Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 10/12dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ120x13mm







Item: CTRF-ANTENNA-PCB-7027-12514-IPEX

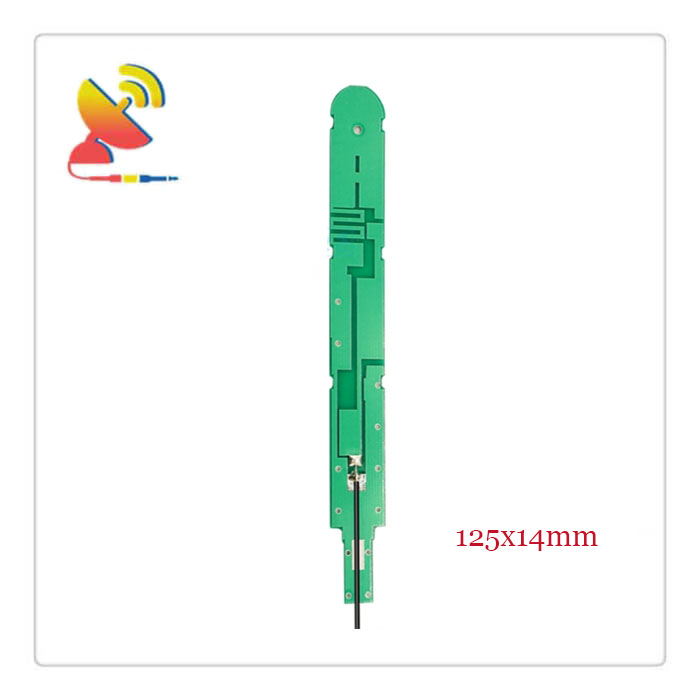

High-performance & High-gain Internal 4G Antenna PCB LTE Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 10/12dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ125x14mm







Item: CTRF-ANTENNA-PCB-7027-13412-IPEX

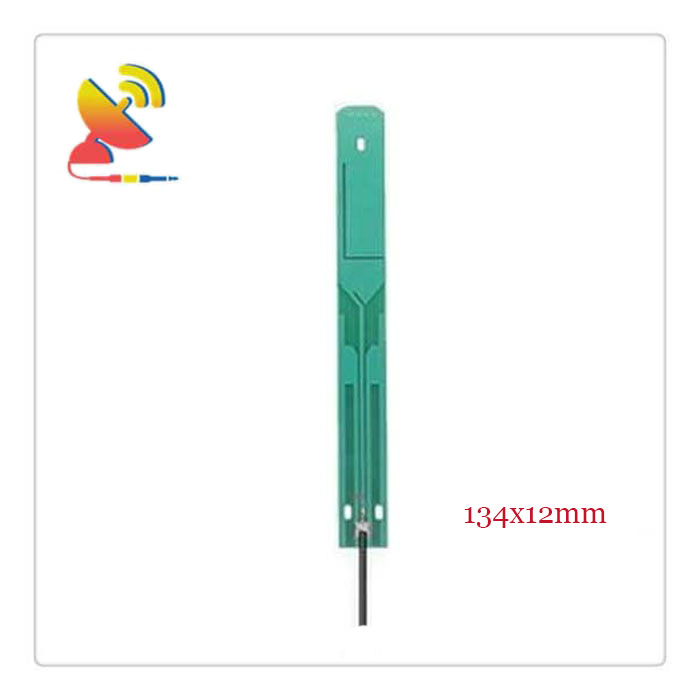

High-performance & High-gain 4G LTE PCB Internal Antennas

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 12/14dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ134x12mm







Item: CTRF-ANTENNA-PCB-7027-13632-IPEX

High-performance & High-gain LTE Antenna 4G PCB Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 12/15dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ136.5×32.5mm







Item: CTRF-ANTENNA-PCB-7027-14512-IPEX

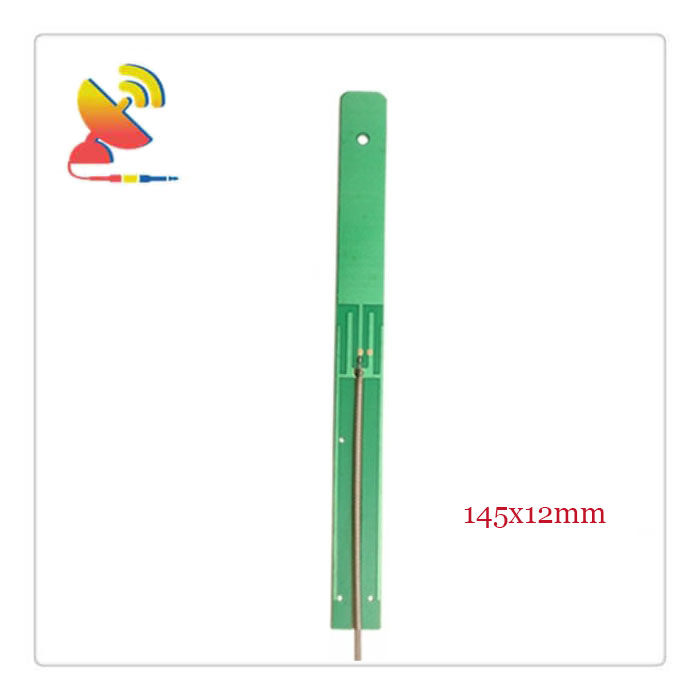

High-performance & High-gain 4G Antenna LTE PCB Antenna

Specifications:

Material: PCB

Frequency range: 698-960 MHz, 1710-2700 MHz

Gain: 12/15dBi

H-Beam width: 360°

V.S.W.R:≤2.0

Polarization: Vertical

Connector: IPEX

Color: Green

Dimension: Φ145x12mm







The high-performance 4G/LTE PCB antennas with u.FL/IPEX1/MHF4 connectors or opening ends are choosable.







Besides the PCB antennas, C&T RF Antennas Inc. also offers 4G LTE antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas, internal ceramic antennas, flexible PCB antennas, helical antennas, etc. Contact us for more specs you need.
