C&T RF Antennas Inc. manufactures a series of 433MHz SMA antenna Omni rubber duck antennas—the SMA and RP-SMA 433MHz terminal external antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance 433MHz SMA antennas such as the 433MHz SMA antenna datasheet, 433MHz RP-SMA antenna pricing, and 433MHz rubber duck antenna inventory.
Or other indoor-outdoor 433MHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 433MHz SMA antennas operate at a center frequency of 433MHz. The 433MHz SMA rubber duck antennas, manufactured by C&T RF Antennas Inc., are external Omnidirectional antennas commonly used in ISM and LoRa applications.
433MHz SMA antennas are mainly used in radio communication, broadcasting, television, radar, navigation, electronic countermeasures, remote sensing, radio astronomy, and other fields, especially in the smart home, wireless meter reading, portable devices, vehicle-mounted terminals, smart locks, and robotics control and other scenarios with a wide range of applications.
Besides the 433MHz SMA antennas, we also provide single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/UMTS/LTE/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, passive GPS SMA antennas, 2.4GHz, 5GHz single-band and dual-band 2.4/5GHz WiFi SMA antennas, 169MHz/230MHz/315MHz SMA antennas, 1.2G/1.4G/1.8G SMA antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.
Stable signal: A 433MHz SMA antenna can provide stable signal transmission and reduce the possibility of signal interruption and interference.
Low loss: A reasonable antenna design can effectively reduce the loss of signal in the transmission process and improve the signal quality.
Strong compatibility: Supports a variety of connector forms and frequency ranges, which makes the 433MHz glue stick antenna widely used in a variety of radio equipment.
Affordable price: Compared with other types of high-gain antennas, the price of 433MHz glue stick antenna is more affordable and suitable for users with limited budgets.
Two SMA connectors: SMA male or RP-SMA male connector is choosable.
Two connector types: Straight SMA or right-angle SMA connector is choosable.
Two colors: Black color or white color is choosable.
etc.
433MHz SMA antennas are widely used in radio communication, remote control equipment, smart homes, car electronics, the Internet of Things, and other fields. Some common application scenarios are as follows.
433MHz SMA antennas are usually used in remote access control systems, which can automatically control the door opening and closing by a wireless signal.
433MHz SMA antennas can be installed on security equipment such as alarms, cameras, and controllers, to realize the functions of remote monitoring and alarm notification.
433MHz SMA antennas are used in smart home equipment, suitable for realizing wireless transmission, remote control of home appliances and equipment, detecting room temperature, and other functions.
433MHz SMA antennas are widely used in IoT transmission equipment, such as automatic access control systems, and payment of small ticket intelligent weather stations.
etc.
C&T RF Antennas Inc. provides high-performance 433MHz SMA male connector and RP-SMA male connector rubber duck antennas. Below are some of the 433MHz SMA antennas.

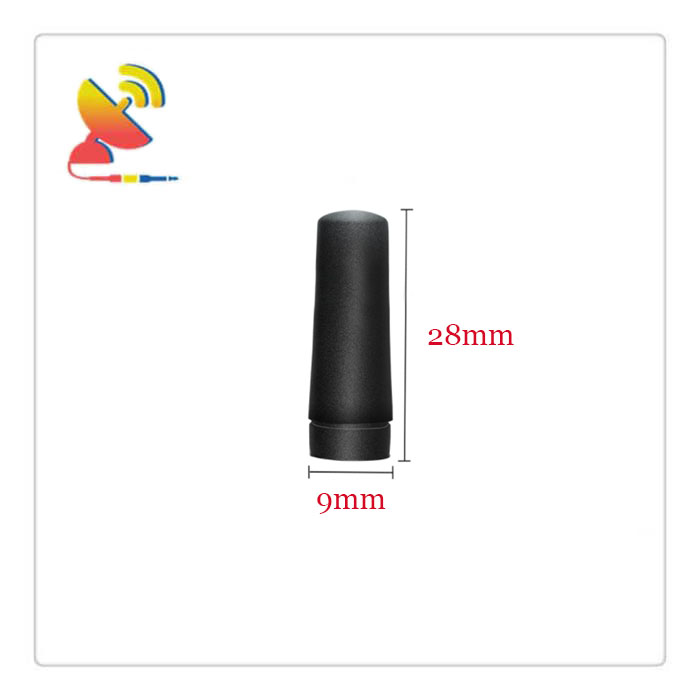

Item: CTRF-ANTENNA-AP-0433-0928B-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 1.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ9x28mm

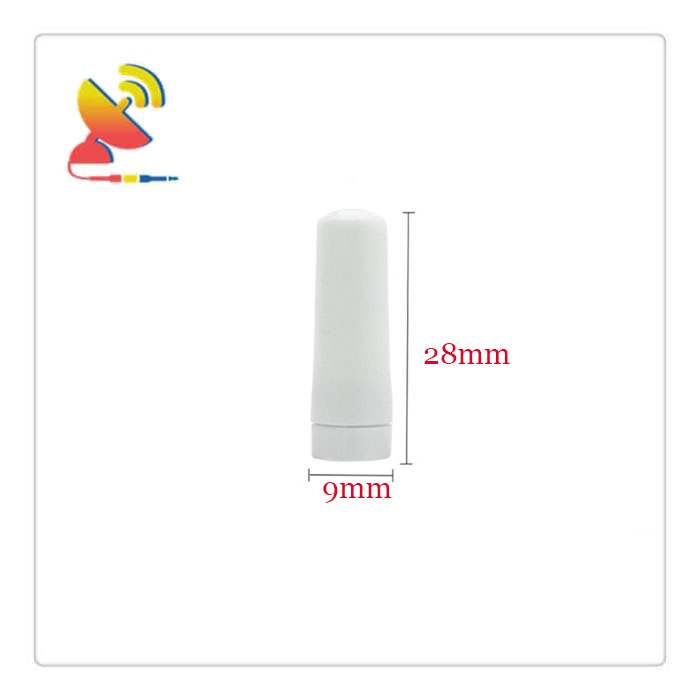

Item: CTRF-ANTENNA-AP-0433-0928W-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 1.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: White
Dimension: Φ9x28mm

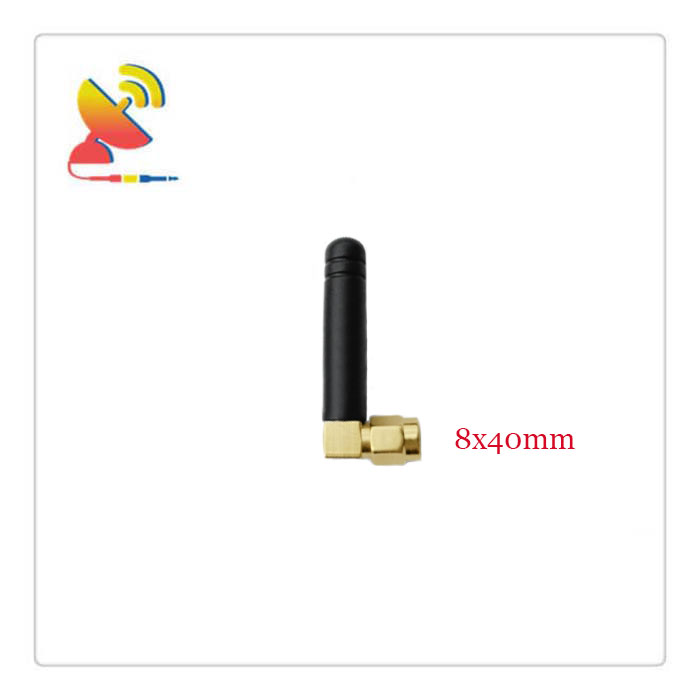

Item: CTRF-ANTENNA-AP-0433-0840-SMAW
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right-Angle SMA Male
Color: Black
Dimension: Φ8x40mm

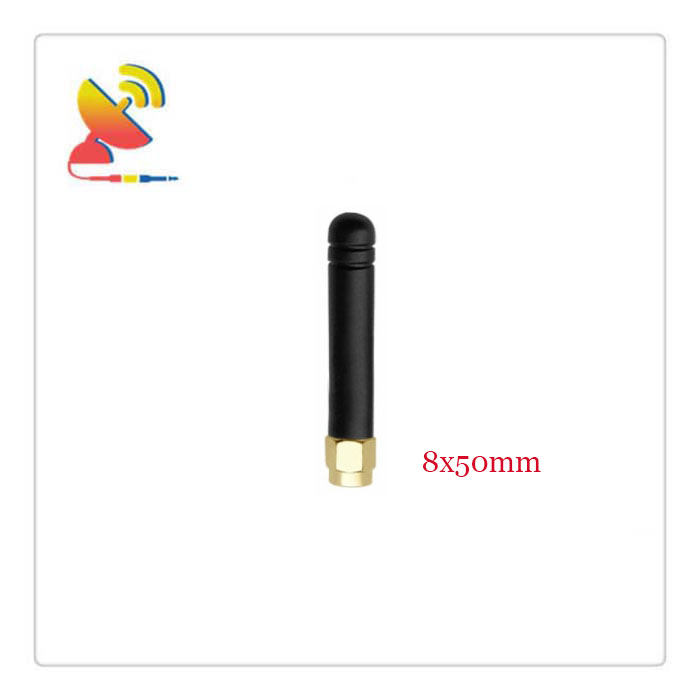

Item: CTRF-ANTENNA-AP-0433-0850B-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ8x50mm

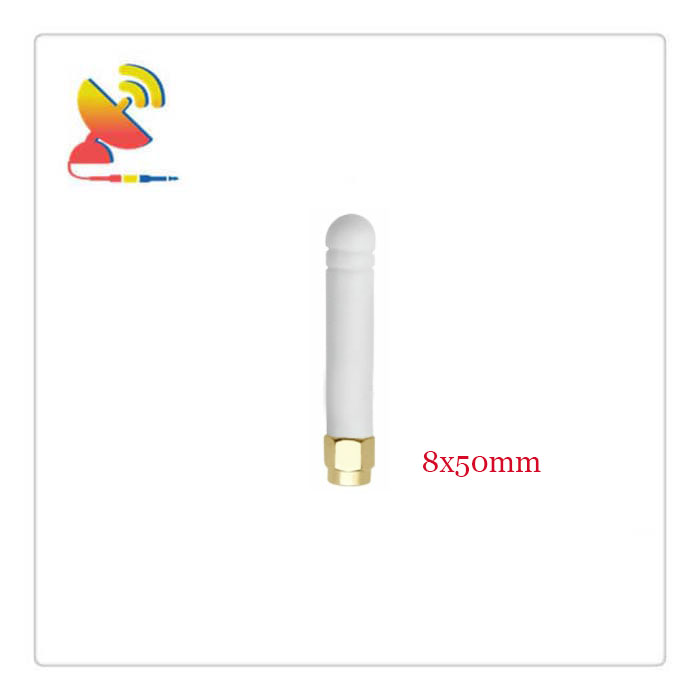

Item: CTRF-ANTENNA-AP-0433-0850W-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: White
Dimension: Φ8x50mm

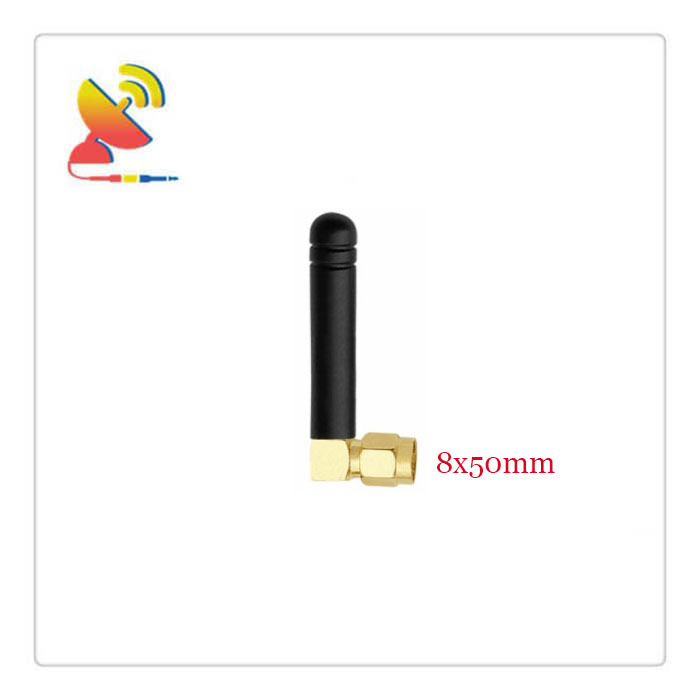

Item: CTRF-ANTENNA-AP-0433-0850B-SMAW
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: Black
Dimension: Φ8x50mm

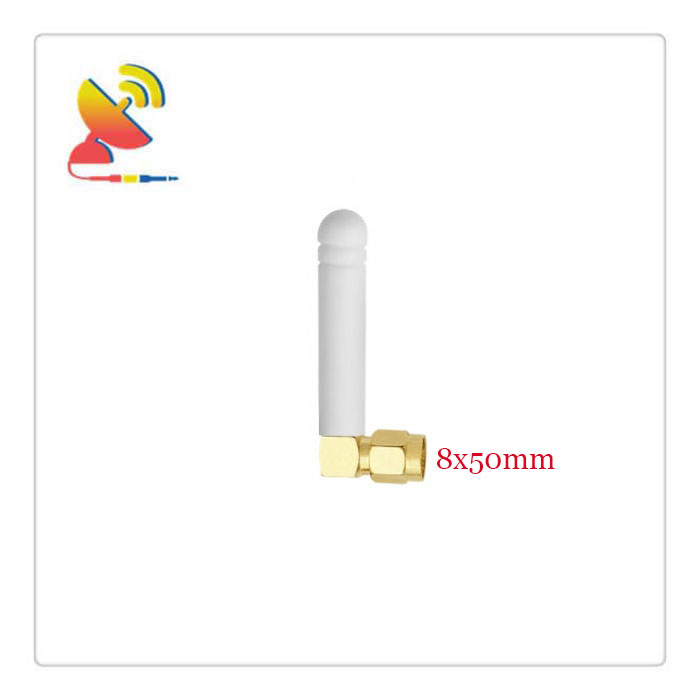

Item: CTRF-ANTENNA-AP-0433-0850W-SMAW
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: White
Dimension: Φ8x50mm

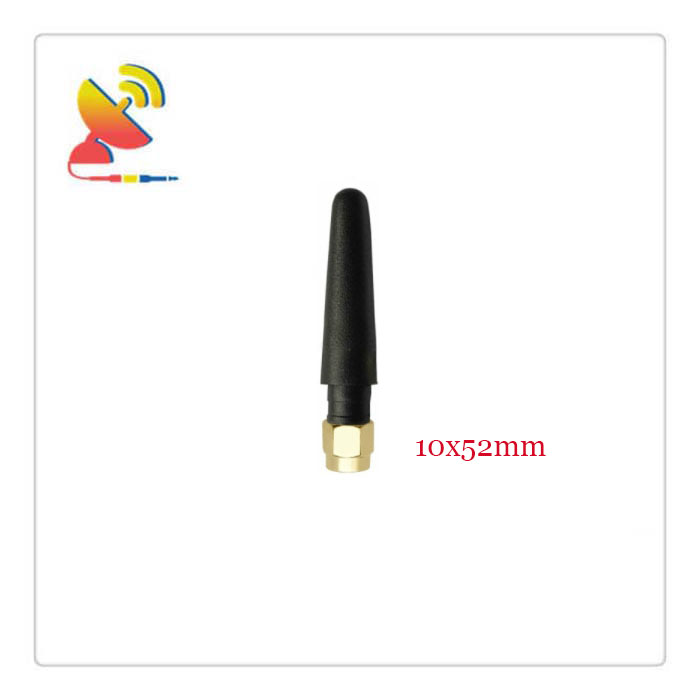

Item: CTRF-ANTENNA-AP-0433-1052B-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x52mm
Item: CTRF-ANTENNA-AP-0433-1052W-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: White
Dimension: Φ10x52mm

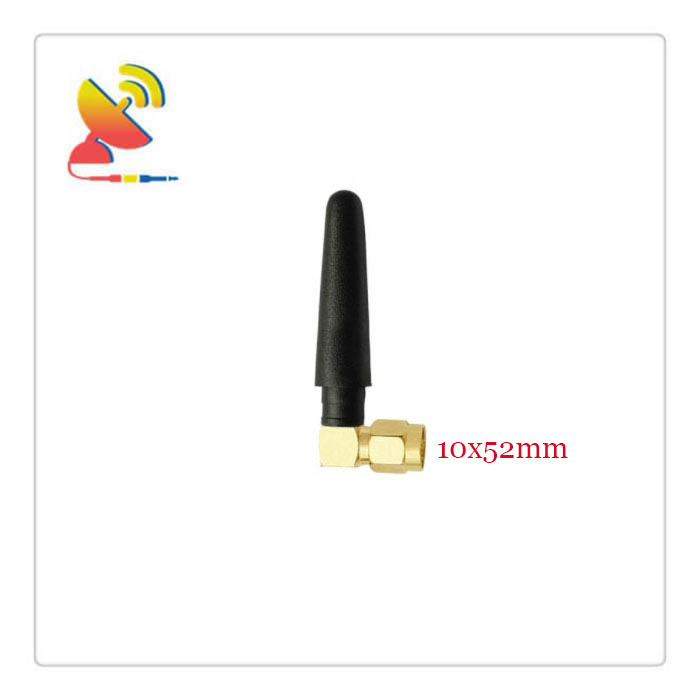

Item: CTRF-ANTENNA-AP-0433-1052B-SMAW
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x52mm
Item: CTRF-ANTENNA-AP-0433-1052W-SMAW
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: White
Dimension: Φ10x52mm

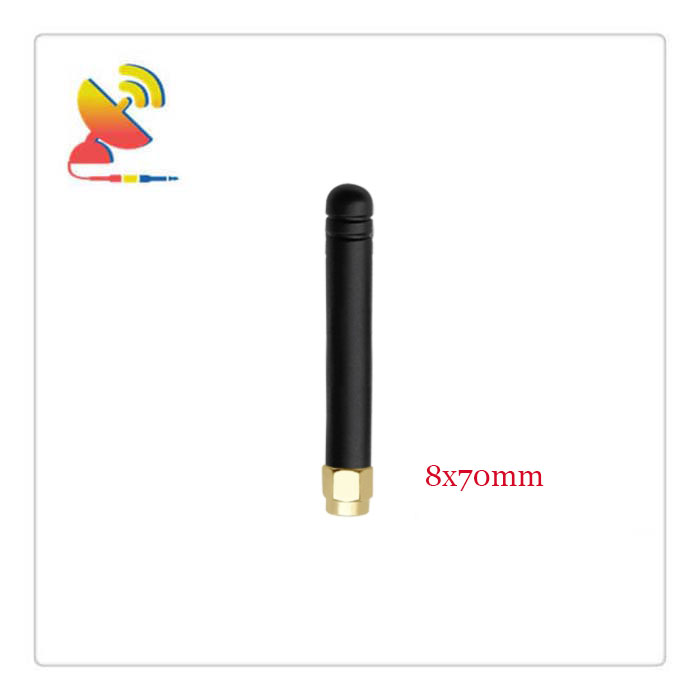

Item: CTRF-ANTENNA-AP-0433-0870-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ8x70mm

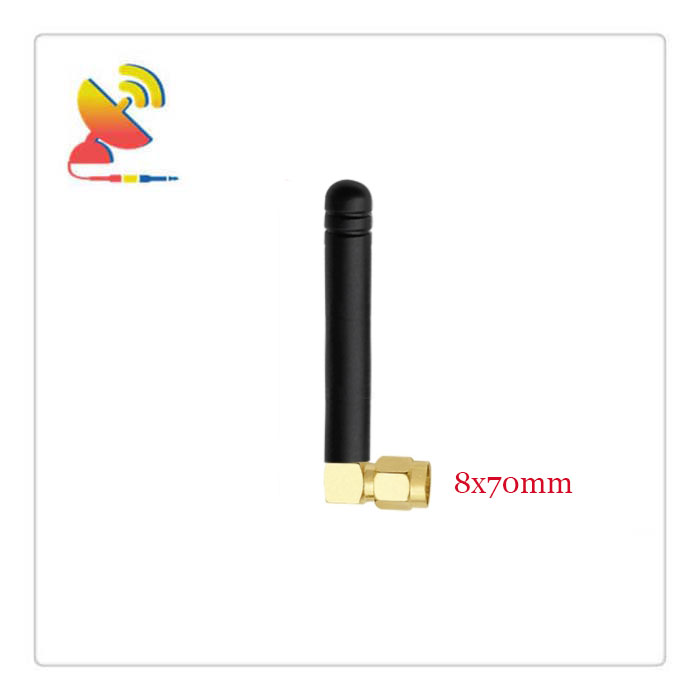

Item: CTRF-ANTENNA-AP-0433-0870-SMAW
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: Black
Dimension: Φ8x70mm

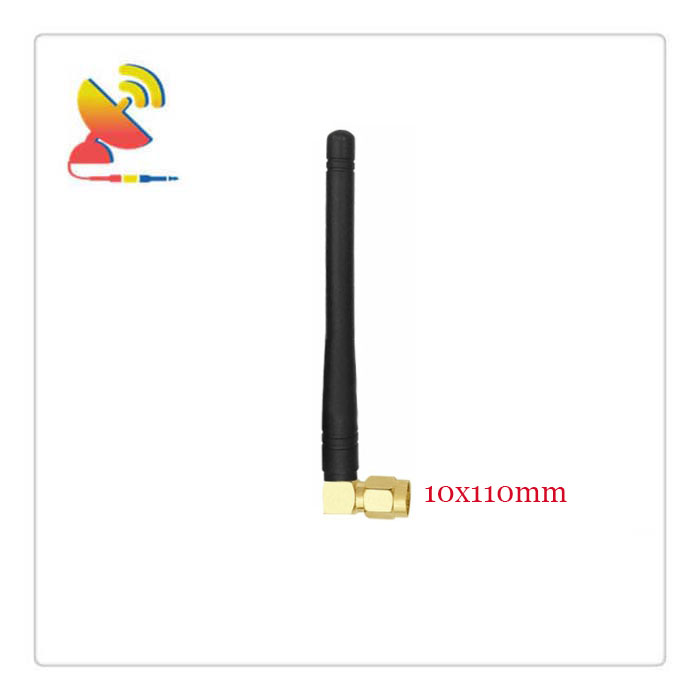

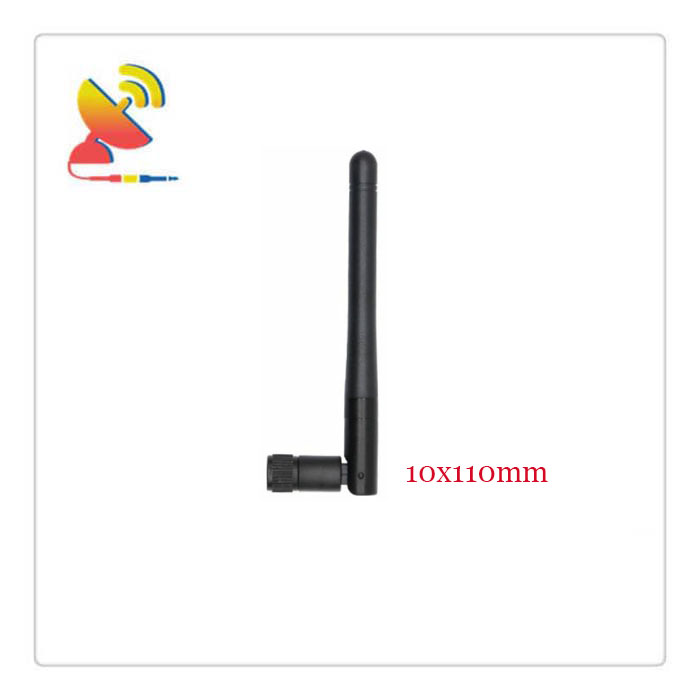

Item: CTRF-ANTENNA-AP-0433-10110B-SMAW
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right-Angle SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x110mm

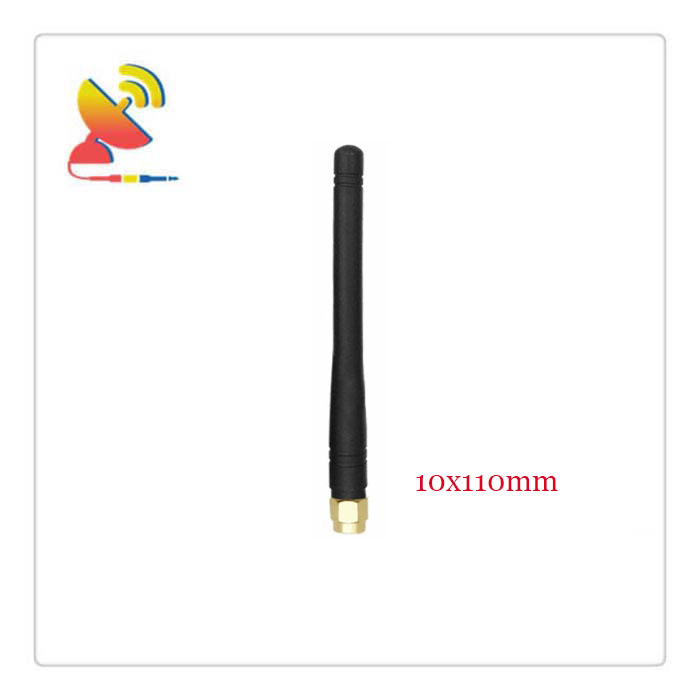

Item: CTRF-ANTENNA-AP-0433-10110B-SMAS
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x110mm
Item: CTRF-ANTENNA-AP-0433-10110B-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ10x110mm

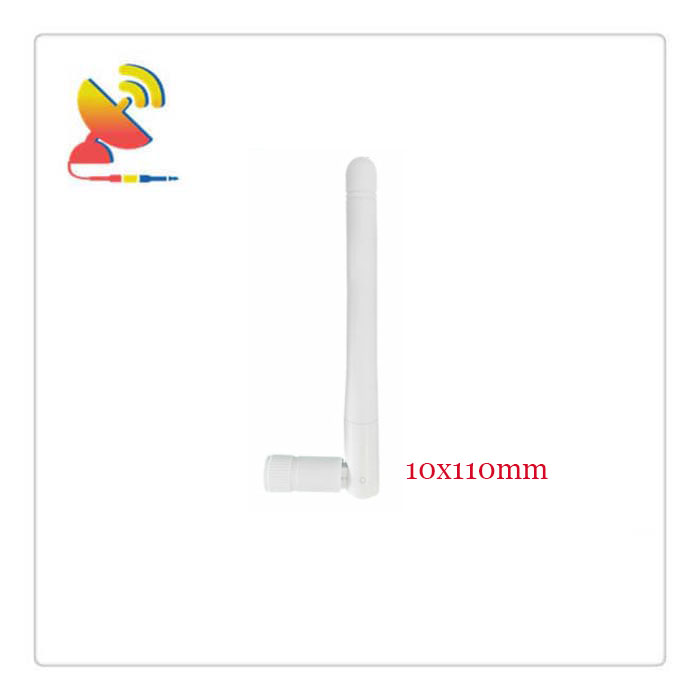

Item: CTRF-ANTENNA-AP-0433-10110W-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ10x110mm

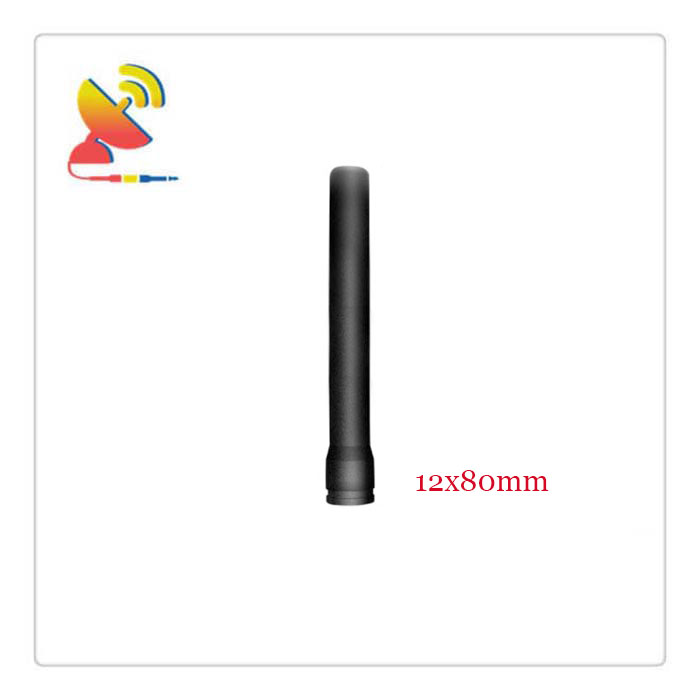

Item: CTRF-ANTENNA-AP-0433-1280-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 2.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ12x80mm

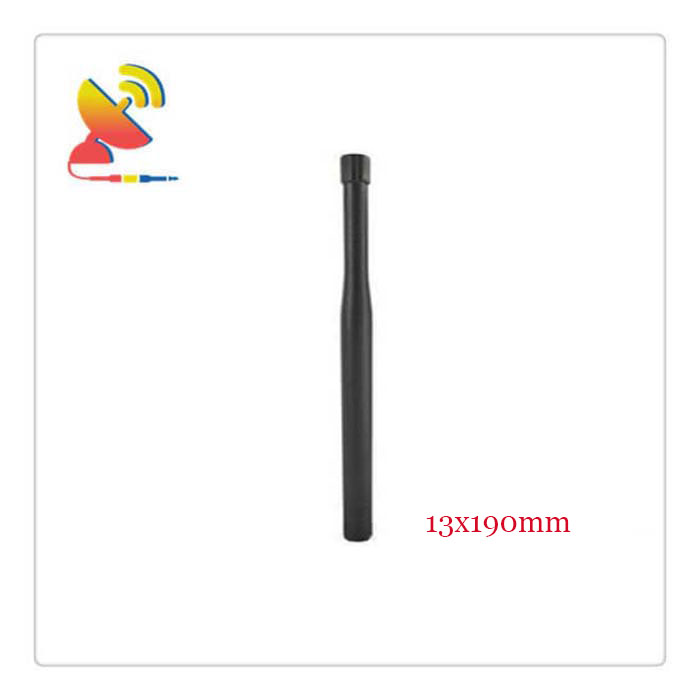

Item: CTRF-ANTENNA-AP-0433-13190-SMA
Specifications:
Material: Plastic TPEE
Frequency center: 433MHz
Gain: 3.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x190mm

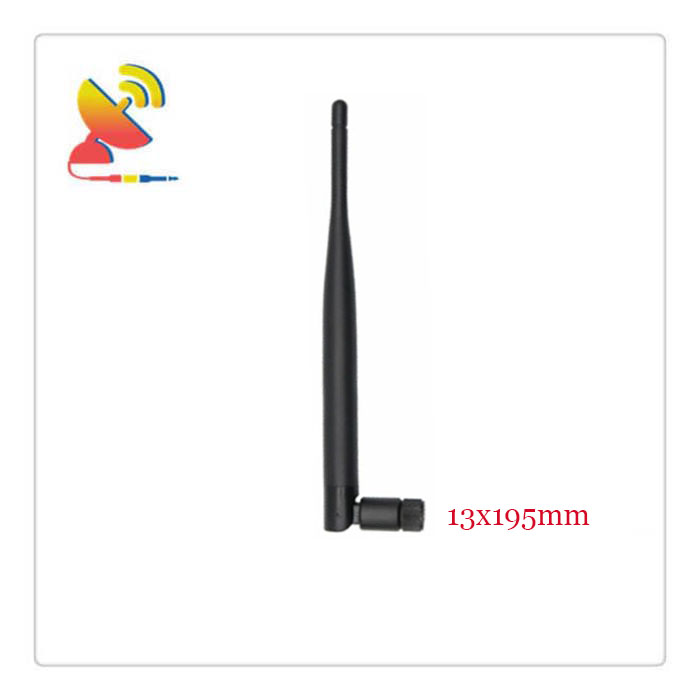

Item: CTRF-ANTENNA-AP-0433-13195B-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x195mm
Item: CTRF-ANTENNA-AP-0433-13195W-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x195mm

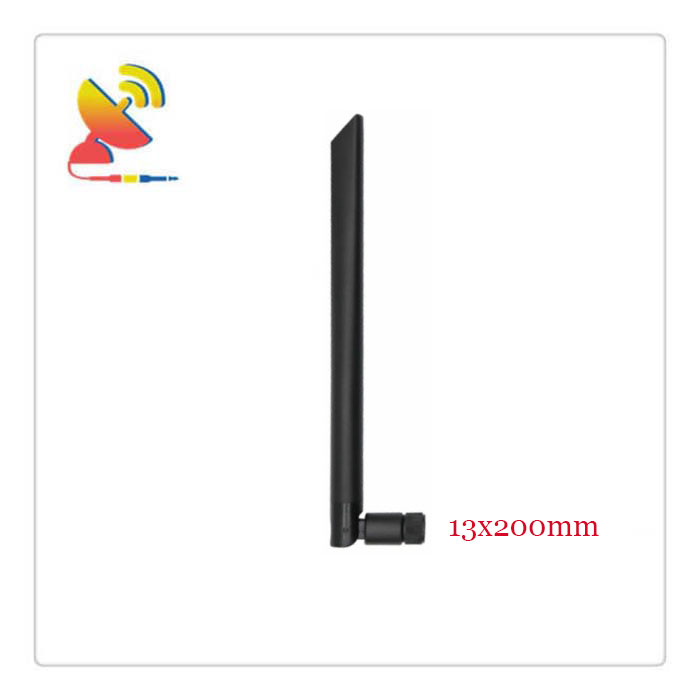

Item: CTRF-ANTENNA-AP-0433-13200B-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x200mm

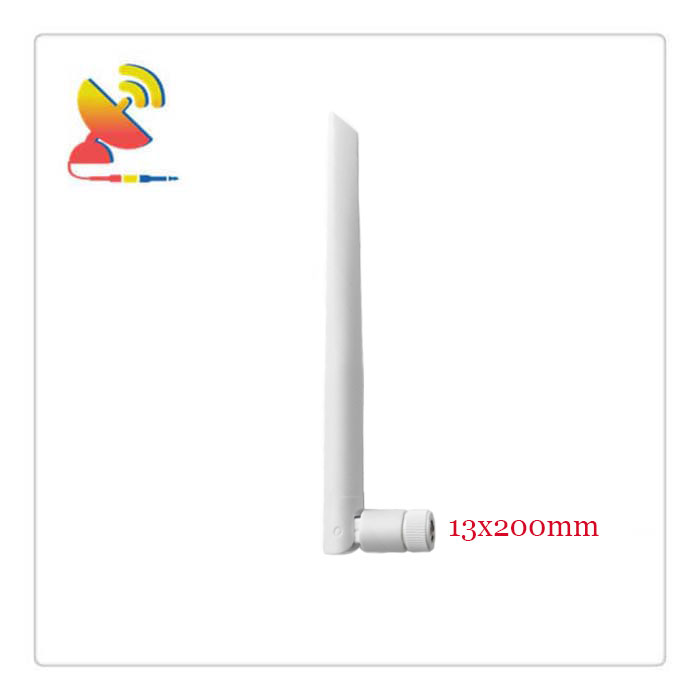

Item: CTRF-ANTENNA-AP-0433-13200W-SMA
Specifications:
Material: Plastic ABS
Frequency center: 433MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x200mm

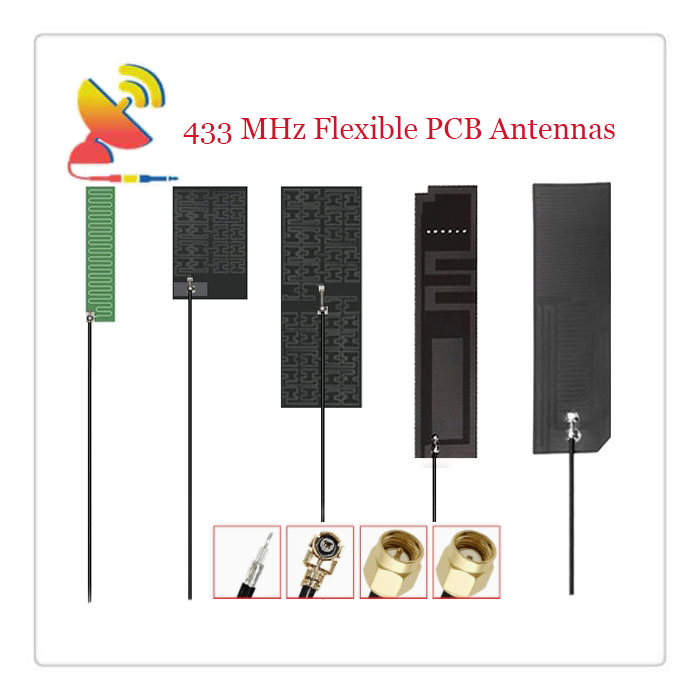

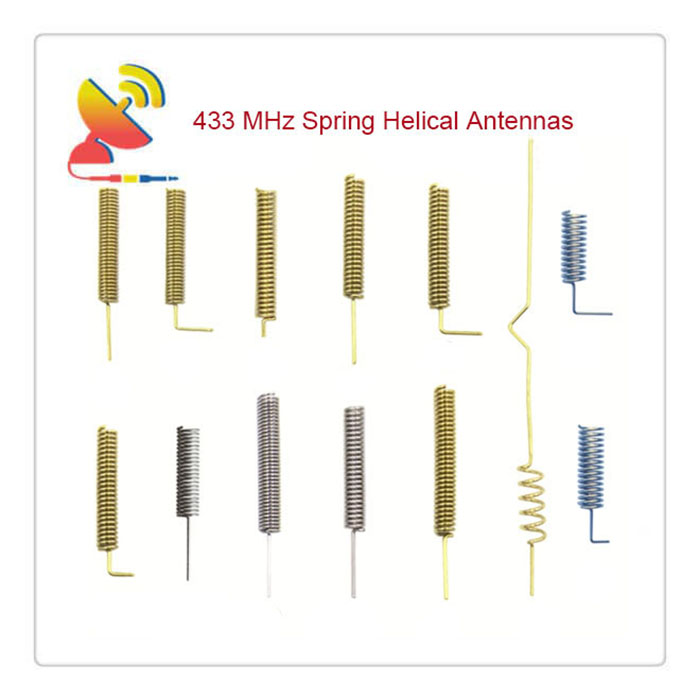

Besides the rubber duck antennas, C&T RF Antennas Inc. also offers 433 MHz antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas. etc. Contact us for more specs you need.
