C&T RF Antennas Inc. manufactures a series of high-performance 433MHz PCB antennas. The 433MHz internal PCB antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance 433MHz PCB antennas, such as the 433MHz PCB antenna datasheet, 433MHz antenna pricing, and 433MHz antenna inventory.
Or other indoor-outdoor 433MHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 433MHz PCB antennas are rigid printed circuit board antennas that operate in 423-443MHz, and the center frequency is 433MHz. The 433MHz PCB antennas are manufactured by C&T RF Antennas Inc. for ISM and LoRa bands.
The high-performance 433MHz PCB antennas are specialized antennas integrated directly onto a printed circuit board (PCB) for transmitting and receiving signals at the 433 MHz frequency. They are commonly used in various wireless applications, including remote controls, alarm systems, and IoT devices. These antennas are designed to be compact and efficient, often utilizing microstrip or monopole designs.

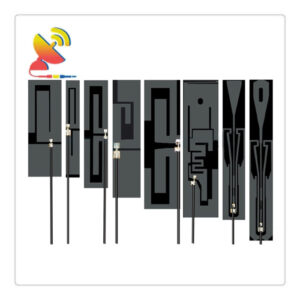

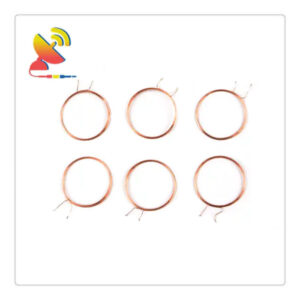

Besides the High-performance 433MHz PCB antennas, we also provide 13.56 MHz PCB antennas, single-band 868MHz/915MHz PCB antennas, dual-band 868/915MHz PCB antennas, LTE-M/NB-IoT/3G GSM PCB antennas, WiFi 2..4GHz/2.4&5GHz PCB antennas, 4G LTE/5G NR/3.5G CBRS PCB antennas, and GNSS/GPS PCB antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.
The high-performance 433MHz PCB antenna has the following characteristics.
433MHz PCB antenna has gradually become an important branch in the field of wireless communication technology with its innate advantages, such as a thin dielectric substrate and low production cost. The printed antenna is a form of antenna formed by printing the radiating patch on the dielectric substrate, and the production cost is relatively low.
The radiating patch of the printed antenna is etched on the PCB dielectric layer, which is flexible in structure and light in quality. This design makes the antenna easier to integrate into a variety of equipment, especially suitable for the need for lightweight designs.
High degree of integration:
The feed network and antenna of the printed antenna can be fabricated in an integrated manner, which helps to reduce the number of components and connecting wires and improve the overall performance and reliability of the device.
Through the use of short-circuit loading technology, passive collector element loading technology, curved flow technology, and the use of high dielectric constant dielectric material, the miniaturised design of a 433MHz PCB antenna can be realised, and it is suitable for devices with strict requirements on size.
433MHz PCB antennas are widely used in a variety of wireless communication devices, such as portable devices like smartphones, tablets, and laptops, as well as Internet of Things (IoT) devices.
These devices usually require a small size, low power consumption, and low cost. PCB antenna design can meet these requirements, and at the same time, by optimising the antenna structure and board layout, the performance and signal coverage of the device can be improved.
etc.
Wireless communication
Telemetry
Alarm systems
Remote controls
IoT devices
etc.
C&T RF Antennas Inc. provides high-performance 433MHz PCB antennas. Below are some of the 433MHz PCB antennas.

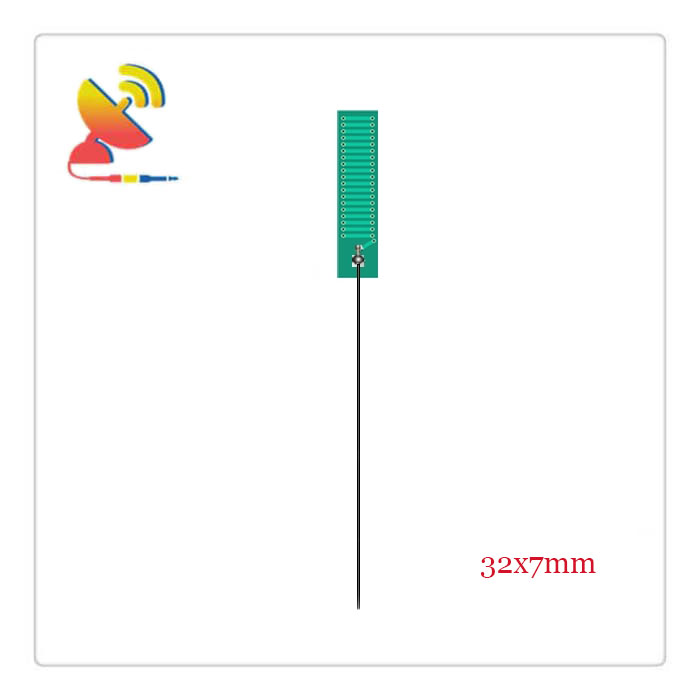

Item: CTRF-ANTENNA-PCB-0433-3207-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency center: 433MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Color: Green
Dimension: Φ32x7mm

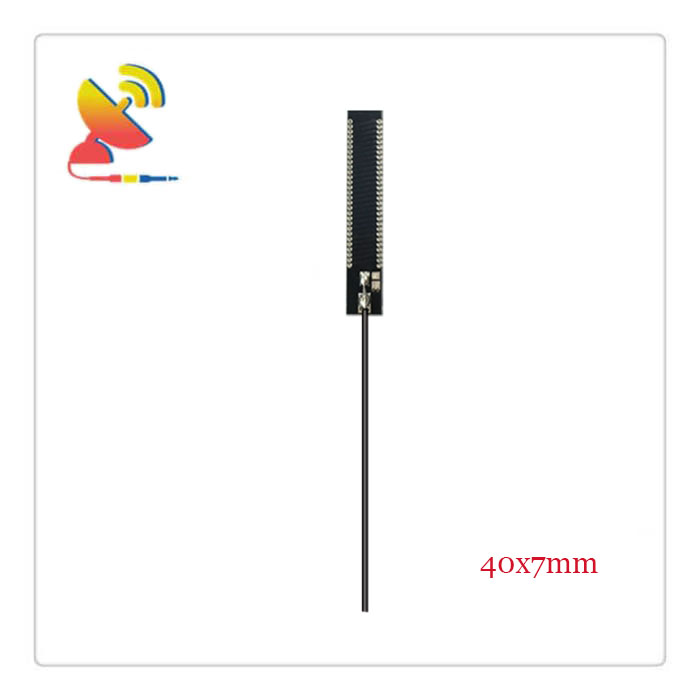

Item: CTRF-ANTENNA-PCB-0433-4007-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency center: 433MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ40x7mm

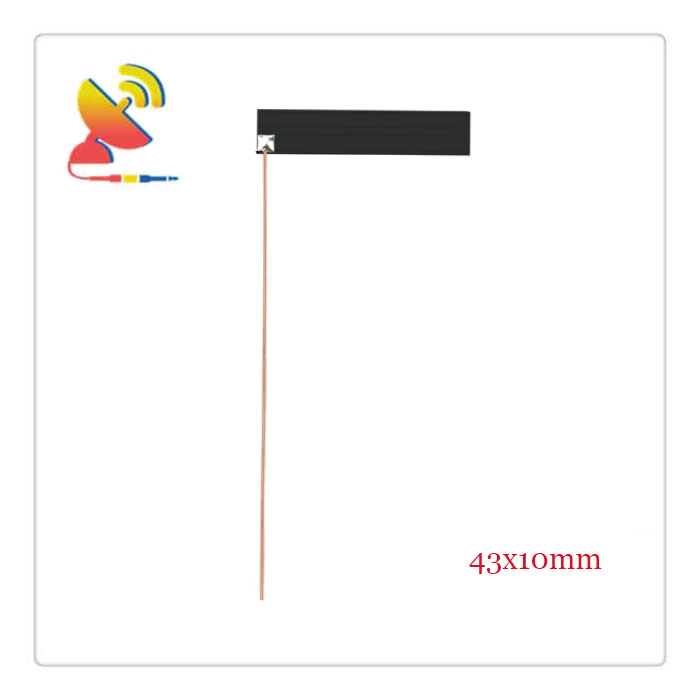

Item: CTRF-ANTENNA-PCB-0433-4310-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency center: 433MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ43x10mm

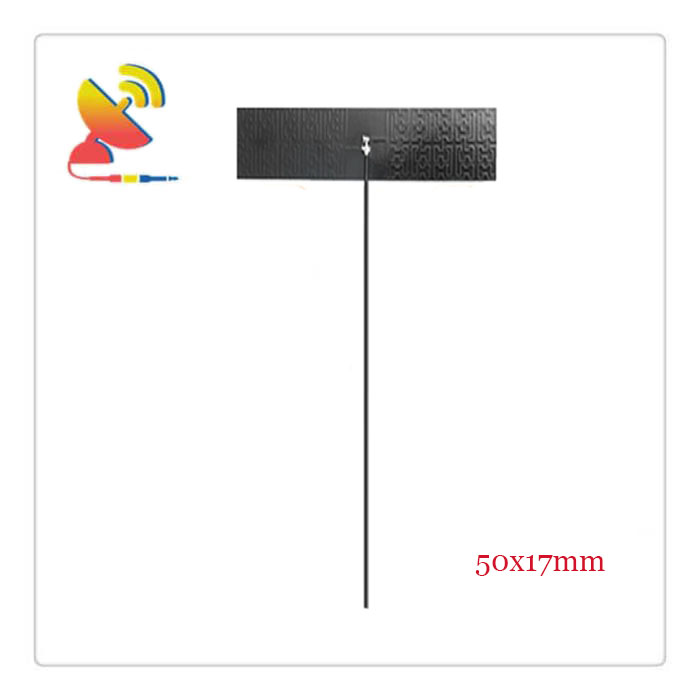

Item: CTRF-ANTENNA-PCB-0433-5017-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency center: 433MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ50x17mm

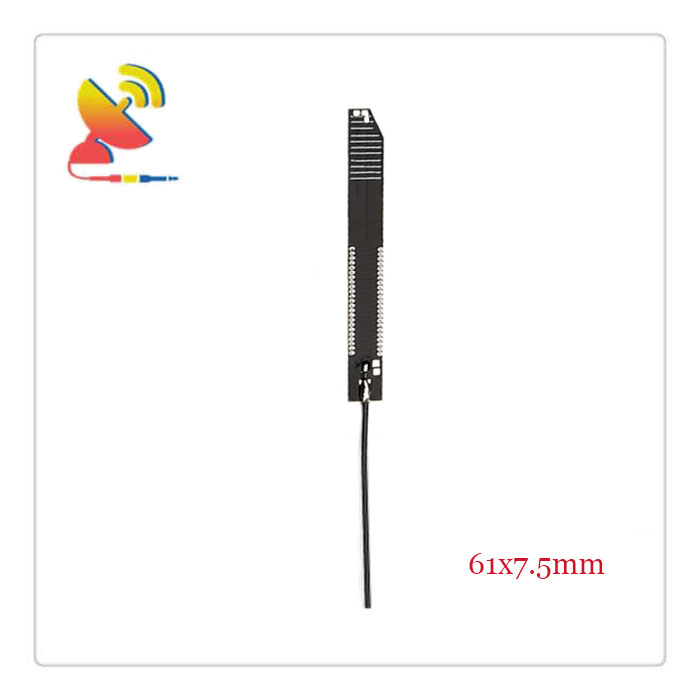

Item: CTRF-ANTENNA-PCB-0433-6107-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency center: 433MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Color: Black
Dimension: Φ61×7.5mm

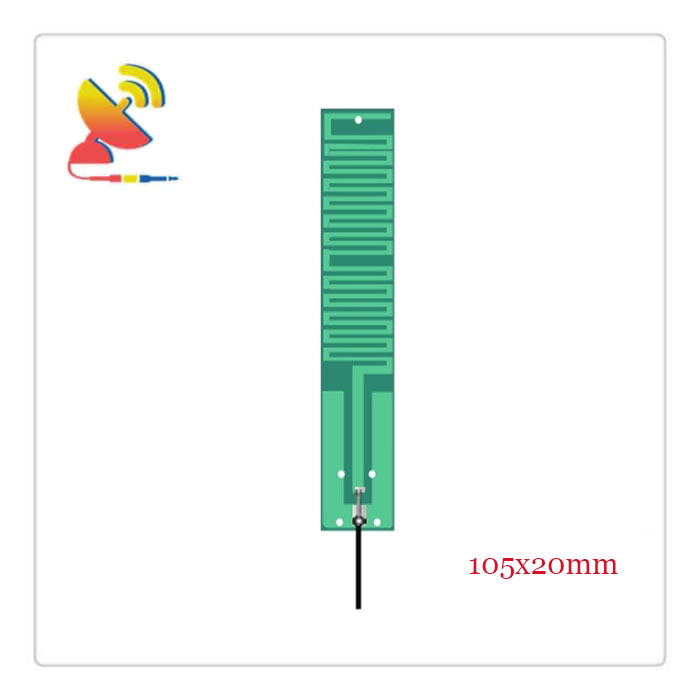

Item: CTRF-ANTENNA-PCB-0433-10520-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency center: 433MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF1
Color: Green
Dimension: Φ105x20mm

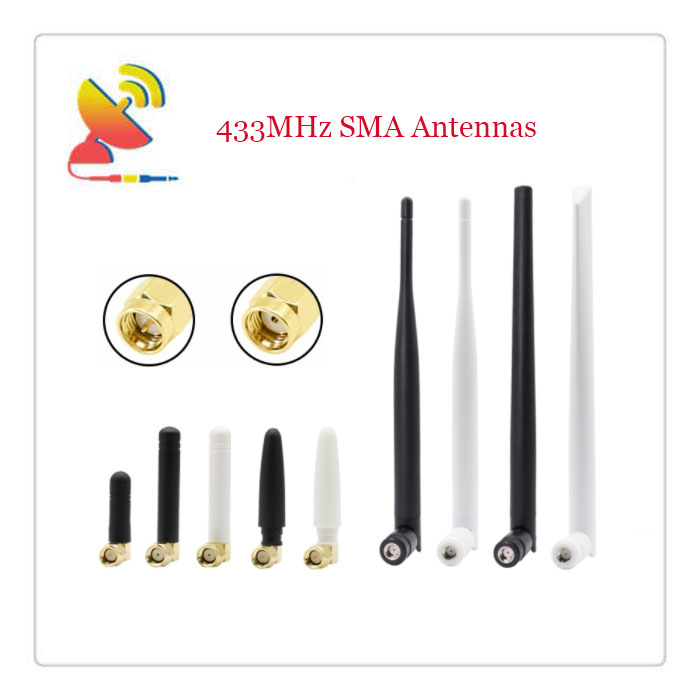

Besides the PCB antennas, C&T RF Antennas Inc. also offers 433 MHz antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, helical antennas, etc. Contact us for more specs you need.
