C&T RF Antennas Inc. manufactures a series of 3G UMTS antenna SMA Omni rubber duck antennas—the SMA and RP-SMA 3G UMTSexternal antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance 3G UMTS antenna SMA such as the 3G UMTS antenna SMA datasheet, 3G UMTS SMA antenna pricing, and 3G UMTS SMA rubber duck antenna inventory.
Or other indoor-outdoor 3G UMTS antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 3G UMTS antenna SMA is a 3G full-band antenna made with an SMA connector rubber ducky antenna, omnidirectional UMTS antenna manufactured by C&T RF Antennas Inc.
The 3G UMTS antennas come with the full frequency of 824-960 MHz and 1710-2200 MHz for UMTS wireless networks, along with some of the 2G, 4G, 5G, LoRa, RFID, GSM, LTE, and NB-IoT applications.
Besides the high-performance 3G UMTS SMA antennas, we also provide 433MHz SMA antennas, single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/GSM/LTE/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, passive GPS SMA antennas, 2.4GHz, 5GHz single-band and dual-band 2.4/5GHz WiFi SMA antennas, 169MHz/230MHz/315MHz SMA antennas, 1.2G/1.4G/1.8G SMA antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.
Universal Mobile Telecommunications System, abbreviated as UMTS, is a complete 3G mobile communication technology standard, not limited to defining the air interface. In addition to WCDMA as the preferred air interface technology for continuous improvement, UMTS successfully introduced TD-SCDMA and HSDPA technology.
A third-generation (3G) mobile phone technology. It uses WCDMA as the underlying standard and was finalized by the 3GPP to represent Europe’s response to the ITU IMT-2000 requirements for 3G cellular radio systems.
UMTS is also sometimes called 3GSM, emphasizing that it incorporates 3G technology and is the successor to the GSM standard. The UMTS packet-switching system is an evolution of the GPRS system, so its architecture is quite similar.
The 3G UMTS SMA antennas are primarily used for applications that require moderate data speeds over a cellular network, including mobile internet access, video streaming, mobile gaming, data transfer for IoT devices, basic mobile phone calls, and applications where reliable connectivity is needed even in areas with limited 4G coverage; essentially, any application that benefits from a 3G network connection, which is based on the UMTS standard.

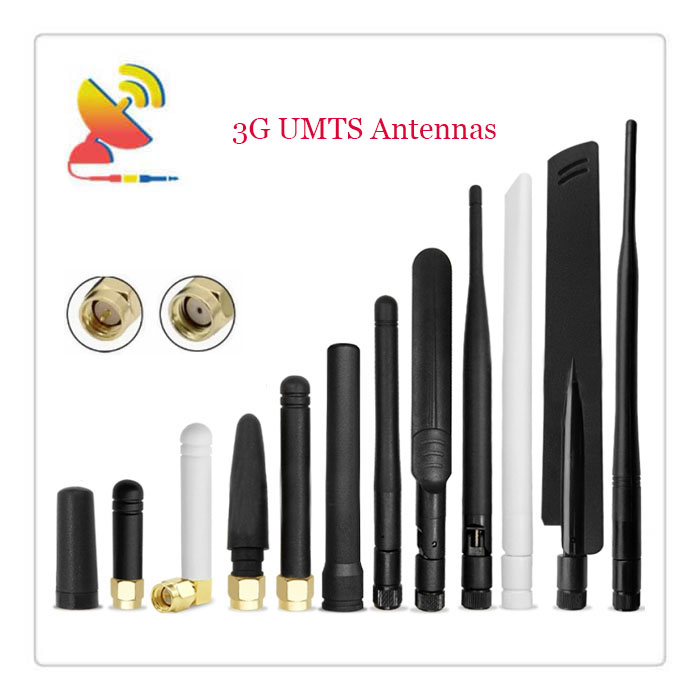

C&T RF Antennas Inc. provides high-performance 3G UMTS antenna SMA and RP-SMA male connector rubber duck antennas. Below are some of the 3G UMTS antenna SMA styles.

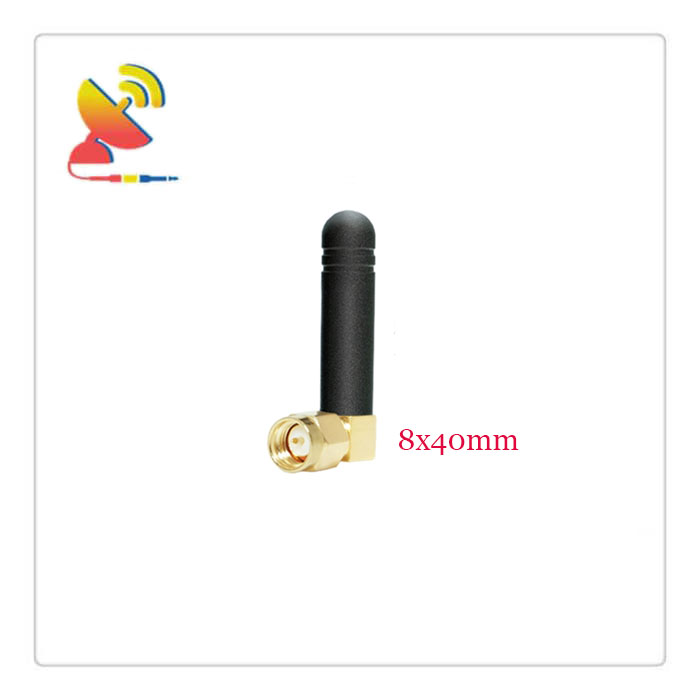

Item: CTRF-ANTENNA-AP-8222-0840B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male Right-Angle
Color: Black
Dimension: Φ8x40mm

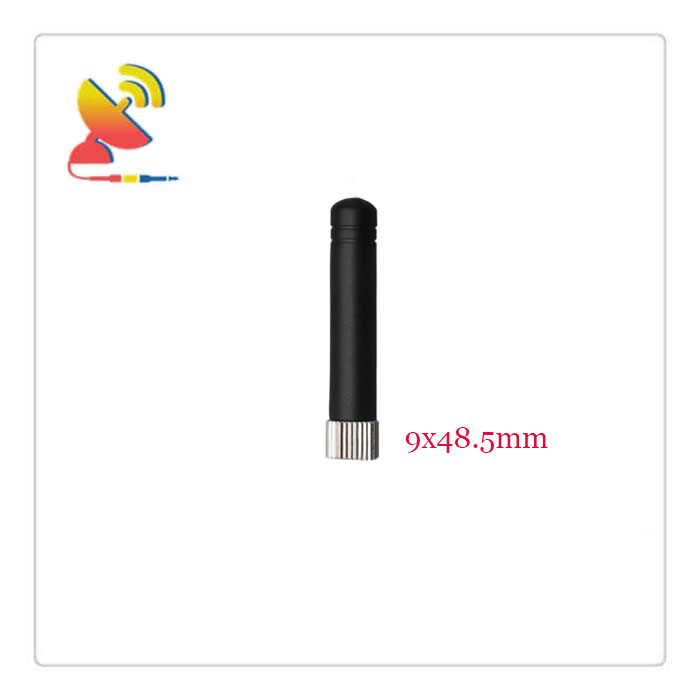

Item: CTRF-ANTENNA-AP-8222-0948B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ9×48.5mm

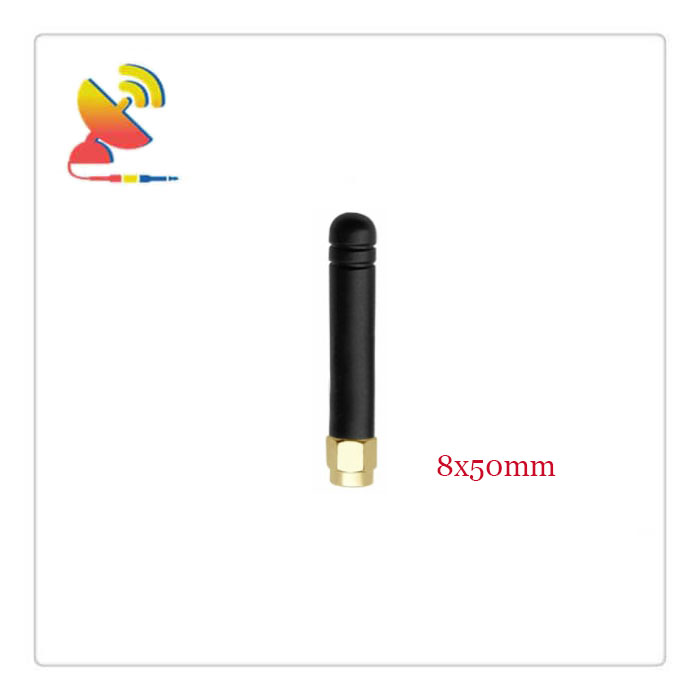

Item: CTRF-ANTENNA-AP-8222-0850B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ8x50mm

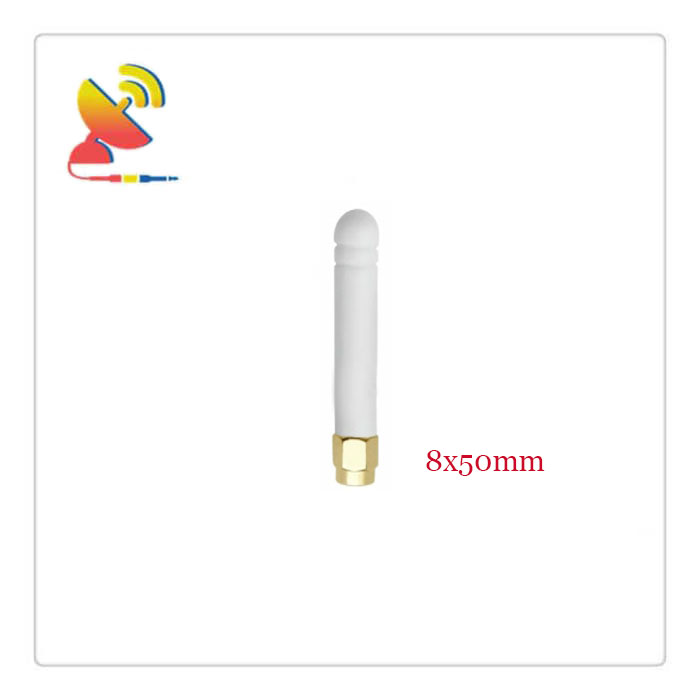

Item: CTRF-ANTENNA-AP-8222-0850W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: White
Dimension: Φ8x50mm

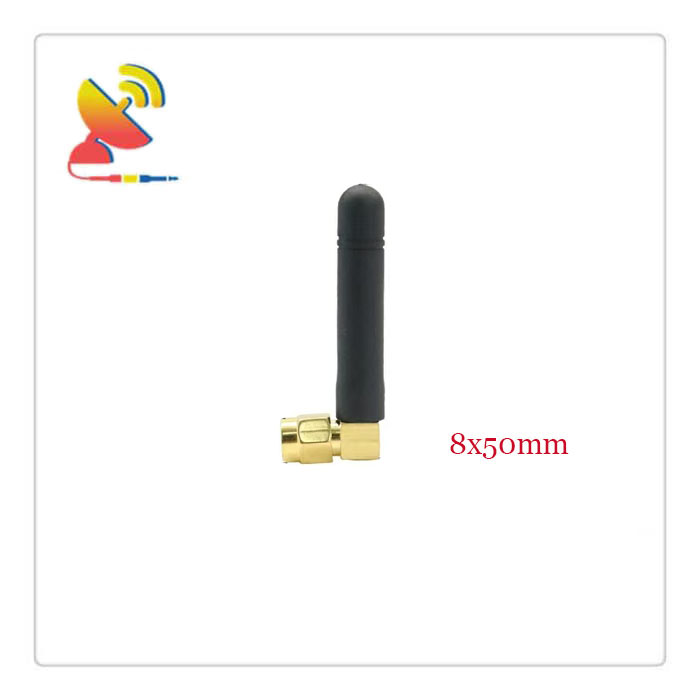

Item: CTRF-ANTENNA-AP-8222-0850B-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: Black
Dimension: Φ8x50mm

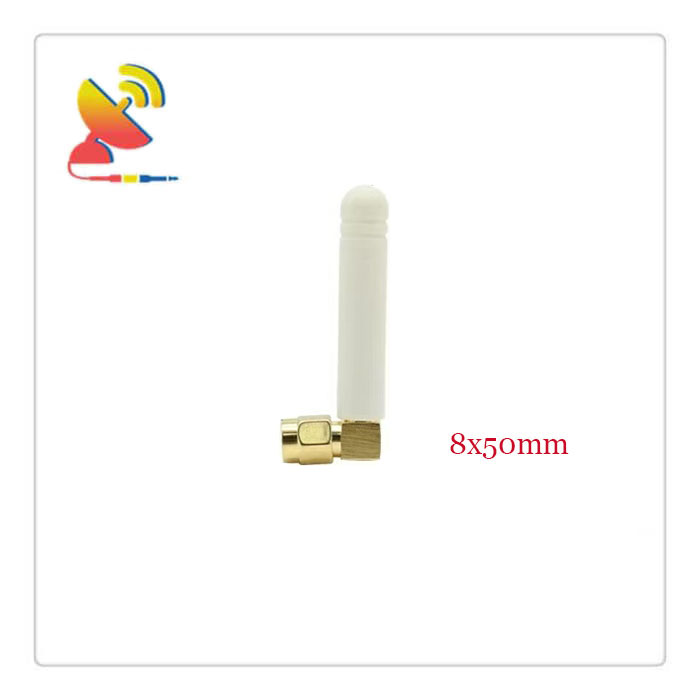

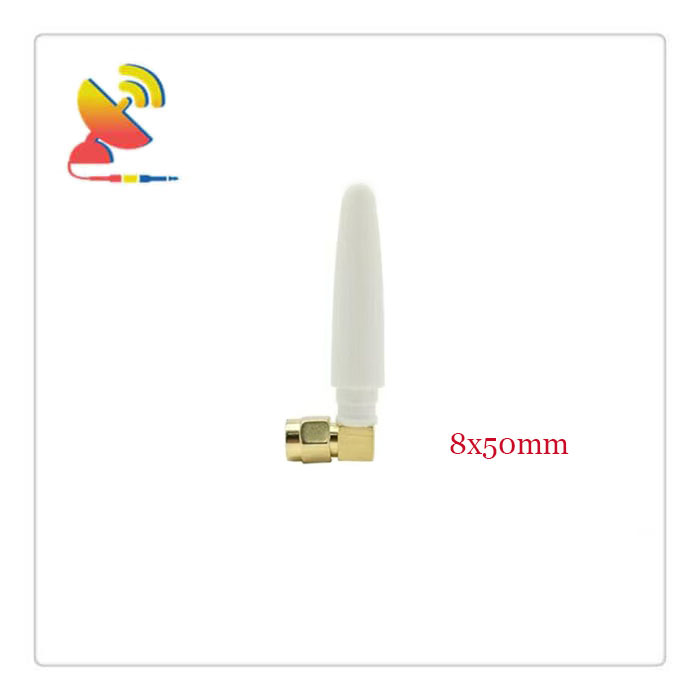

Item: CTRF-ANTENNA-AP-8222-0850W-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: White
Dimension: Φ8x50mm
Item: CTRF-ANTENNA-AP-8222-1052B-SMAS
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x52mm

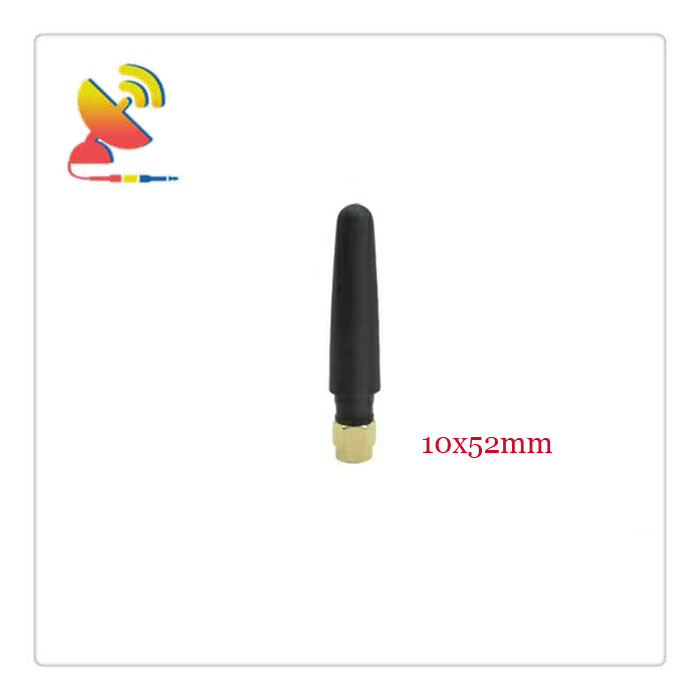

Item: CTRF-ANTENNA-AP-8222-1052B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x52mm

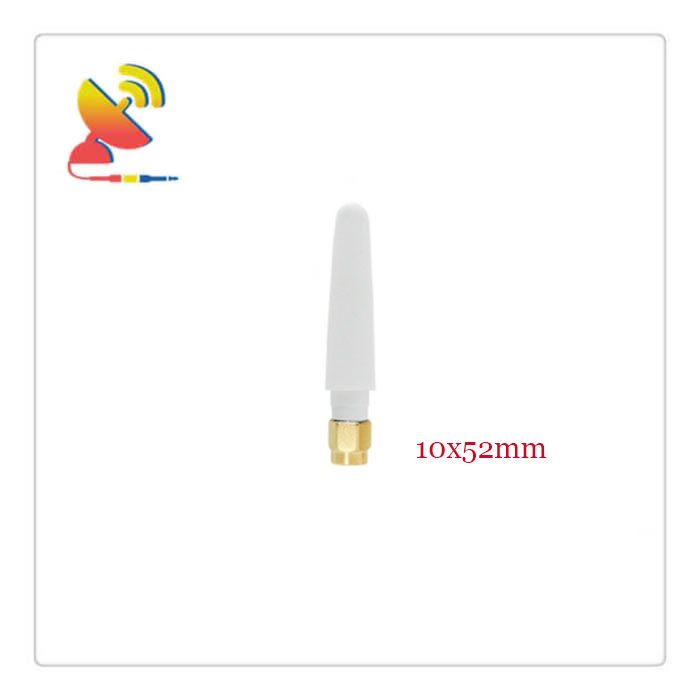

Item: CTRF-ANTENNA-AP-8222-1052W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male (or RP-SMA)
Color: White
Dimension: Φ10x52mm
Item: CTRF-ANTENNA-AP-8222-1052B-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: Black
Dimension: Φ10x52mm
Item: CTRF-ANTENNA-AP-8222-1052W-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Right Angle SMA Male (or RP-SMA)
Color: White
Dimension: Φ10x52mm

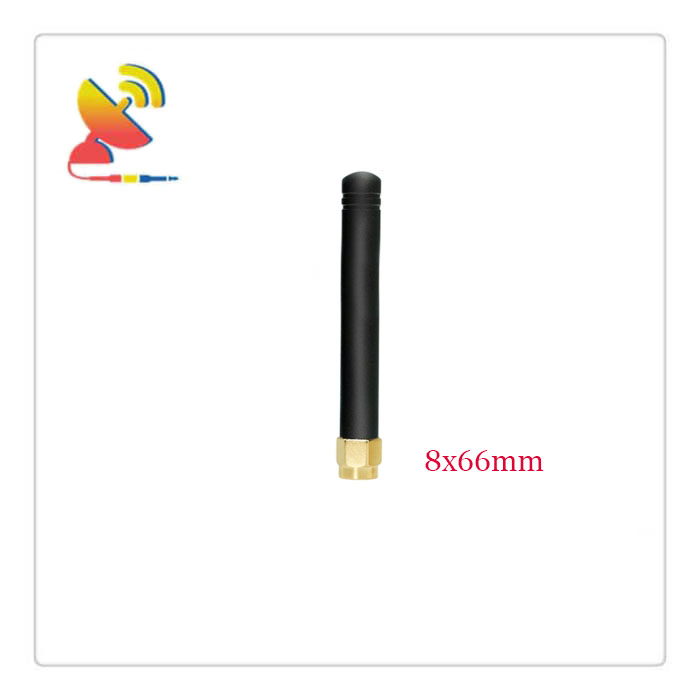

Item: CTRF-ANTENNA-AP-8222-0866-SMAS
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ8x66mm

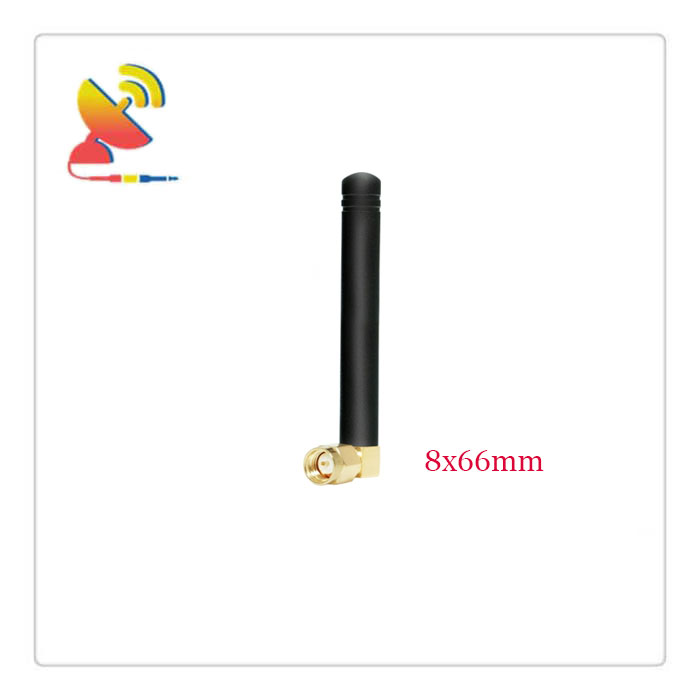

Item: CTRF-ANTENNA-AP-8222-0866-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2.5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: White
Dimension: Φ8x66mm

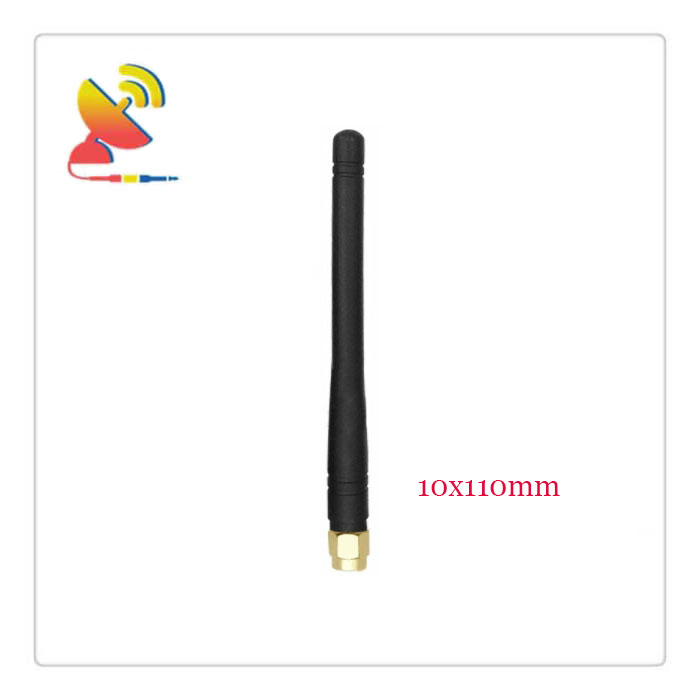

Item: CTRF-ANTENNA-AP-8222-10110-SMAS
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ10x110mm

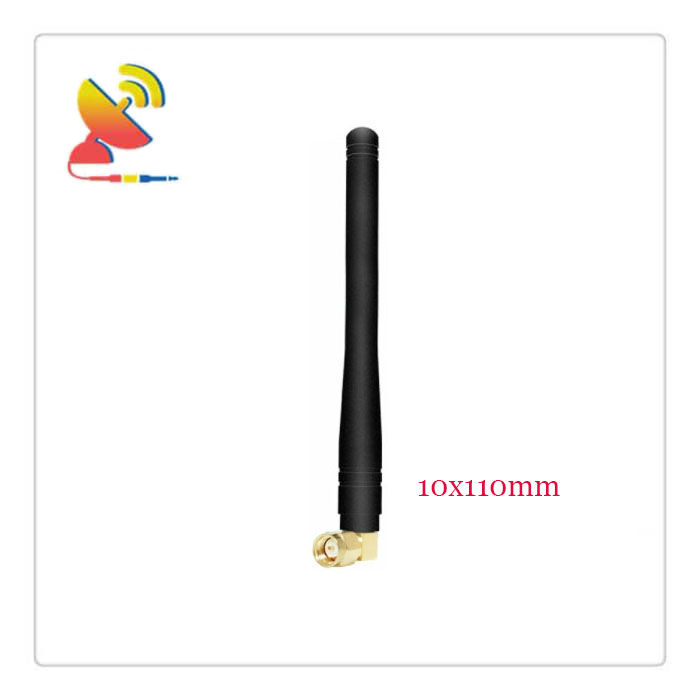

Item: CTRF-ANTENNA-AP-8222-10110-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male RIght-Angle
Color: Black
Dimension: Φ10x110mm
Item: CTRF-ANTENNA-AP-8222-10110B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ10x110mm

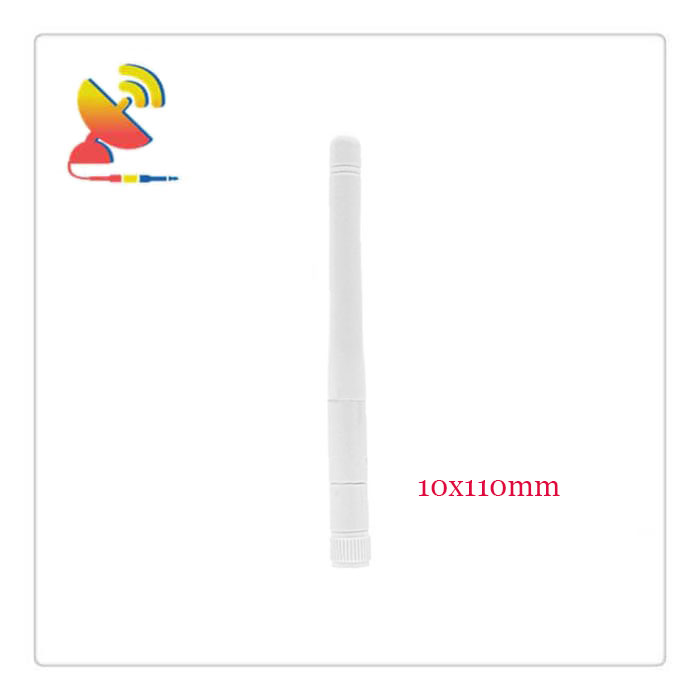

Item: CTRF-ANTENNA-AP-8222-10110W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ10x110mm

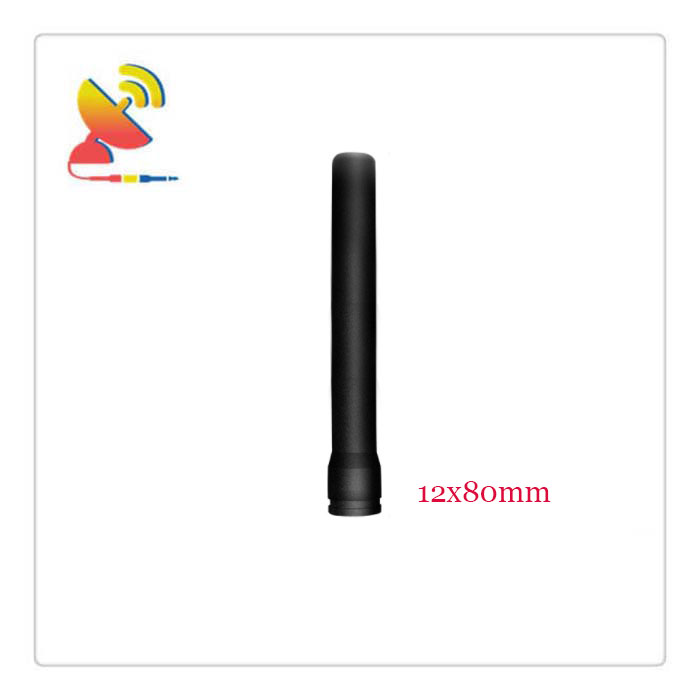

Item: CTRF-ANTENNA-AP-8222-1280-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 2/3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ12x80mm

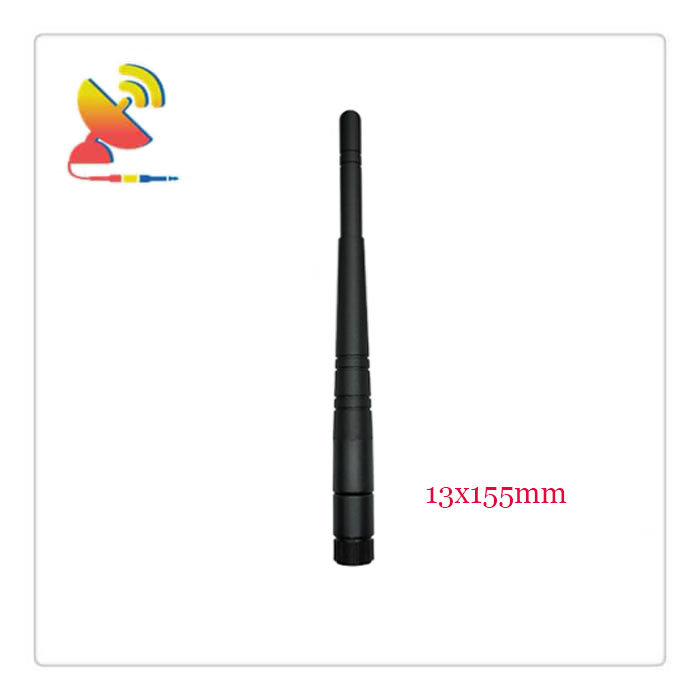

Item: CTRF-ANTENNA-AP-8222-13155B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 3/4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x155mm

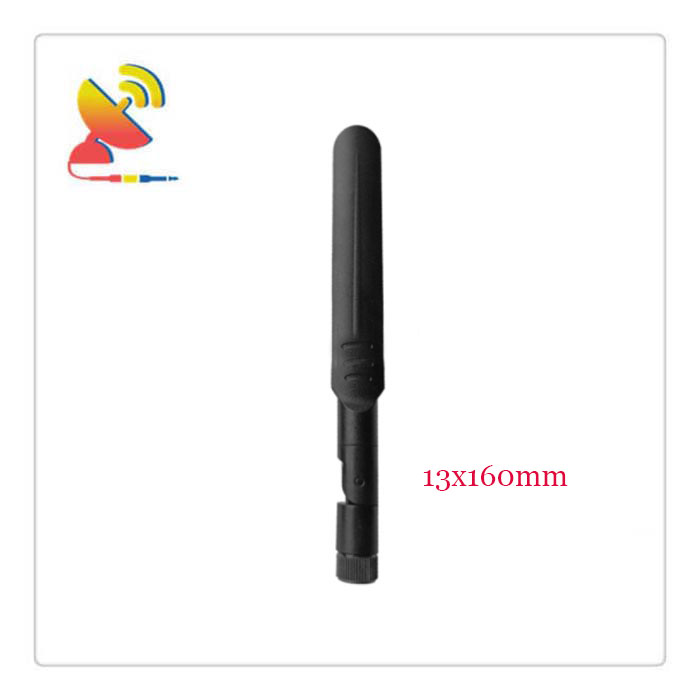

Item: CTRF-ANTENNA-AP-8222-13160B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 3/4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x160mm

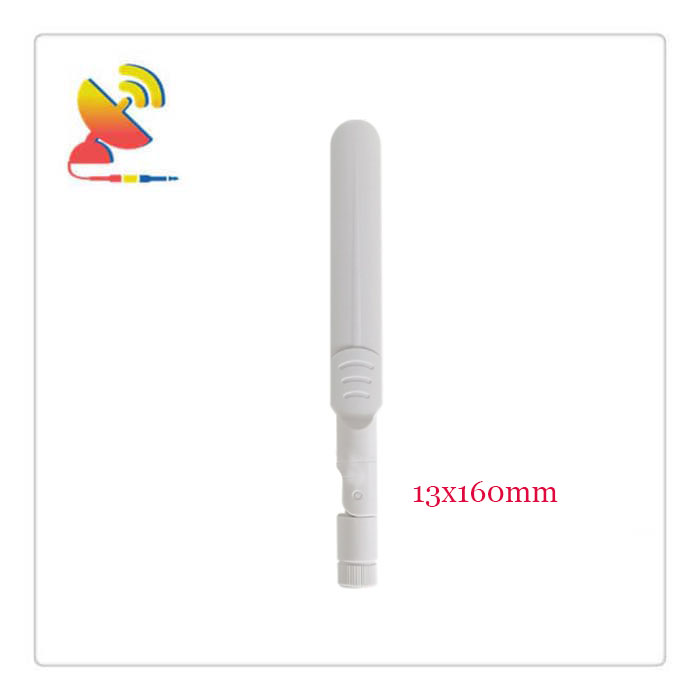

Item: CTRF-ANTENNA-AP-8222-13160W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 3/4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x160mm

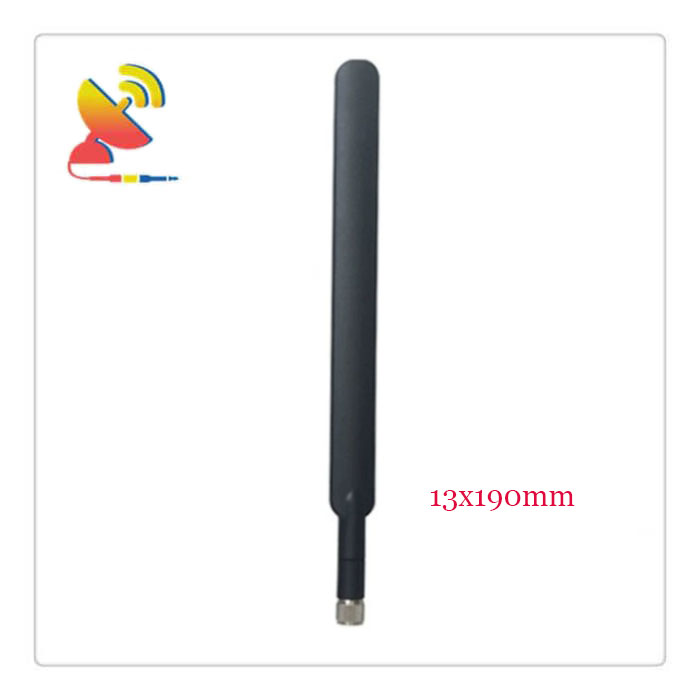

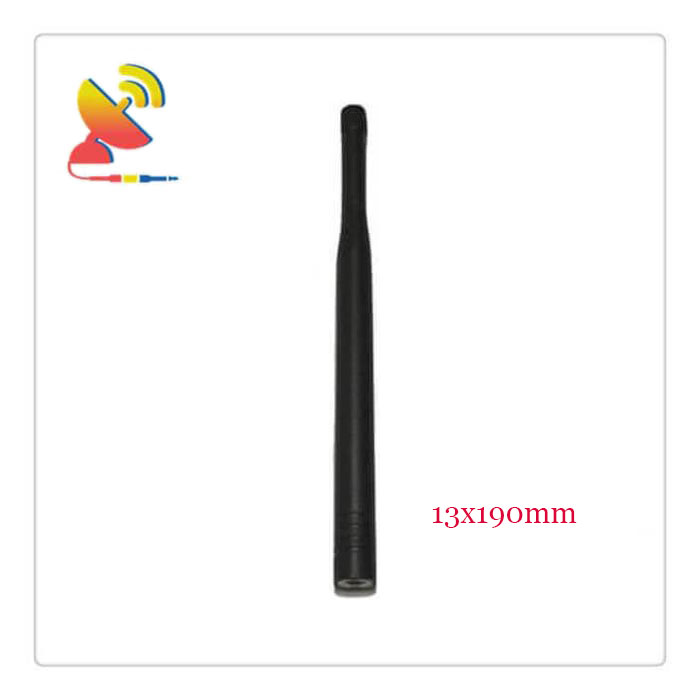

Item: CTRF-ANTENNA-AP-8222-13190-SMAS
Specifications:
Material: Plastic TPEE
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x190mm

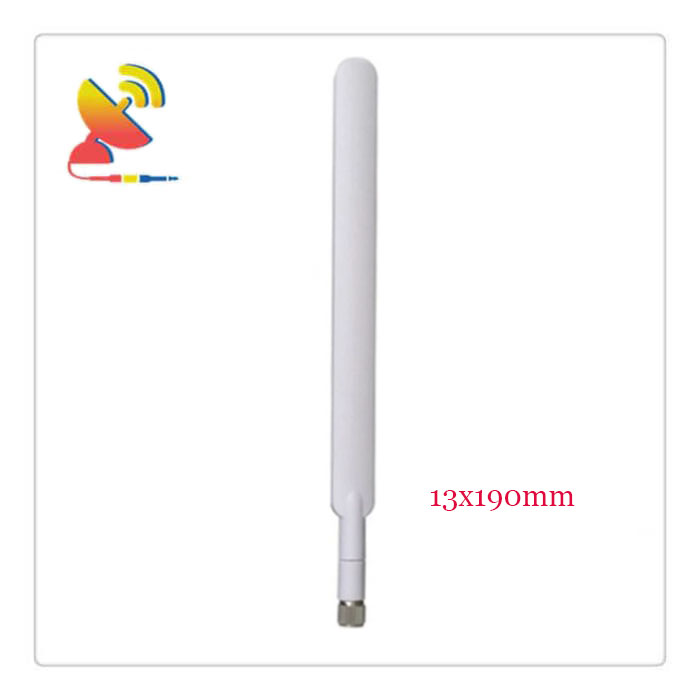

Item: CTRF-ANTENNA-AP-8222-13190W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x190mm
Item: CTRF-ANTENNA-AP-8222-13190B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x190mm

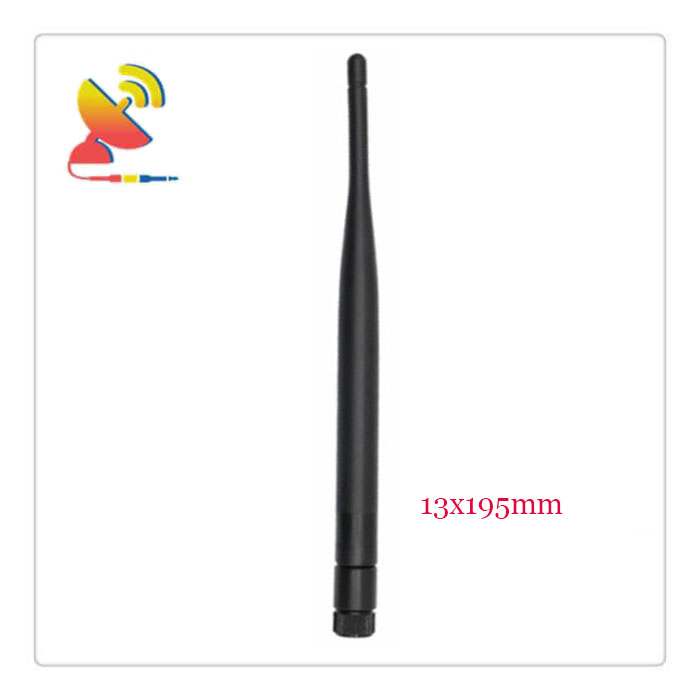

Item: CTRF-ANTENNA-AP-8222-13195B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x195mm

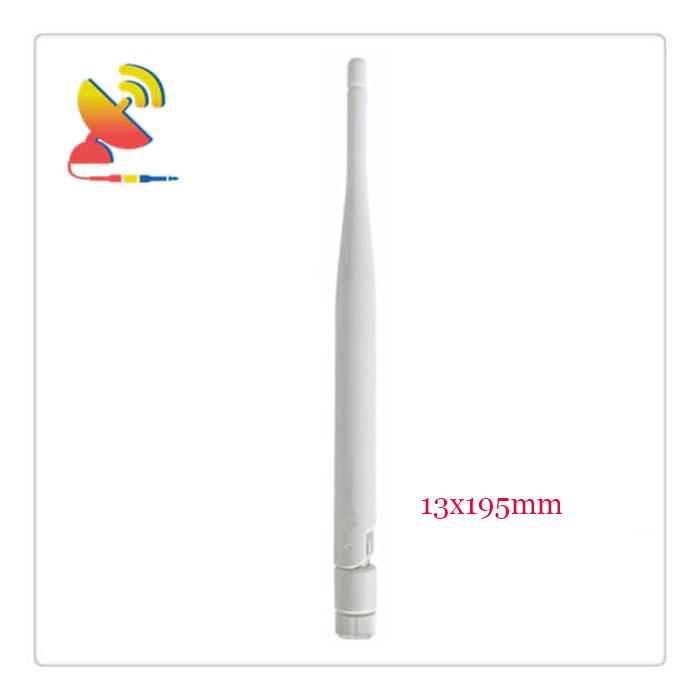

Item: CTRF-ANTENNA-AP-8222-13195W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x195mm

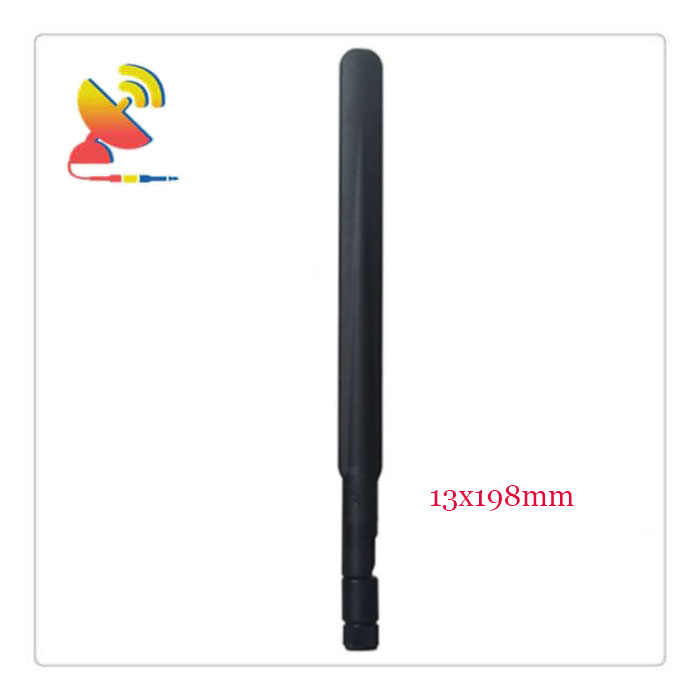

Item: CTRF-ANTENNA-AP-8222-13198-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x2198mm
Item: CTRF-ANTENNA-AP-8222-13200B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x200mm

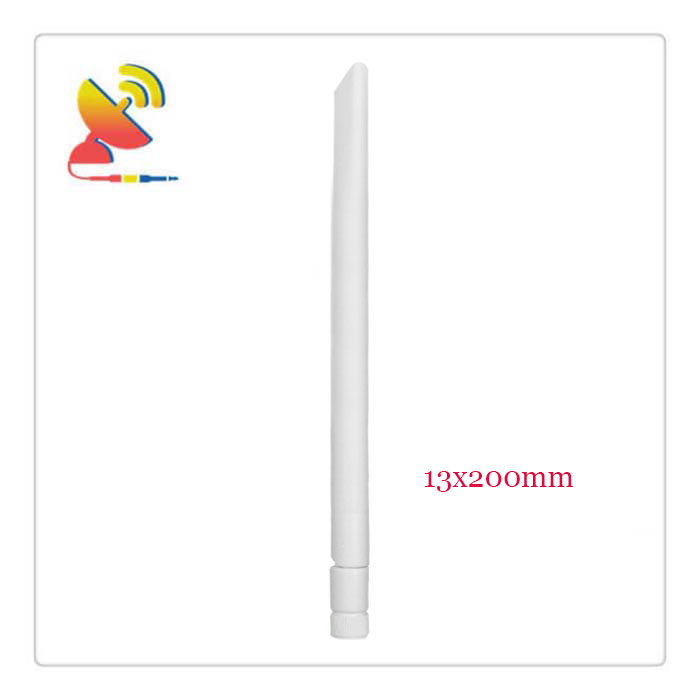

Item: CTRF-ANTENNA-AP-8222-13200W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 3/5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x200mm

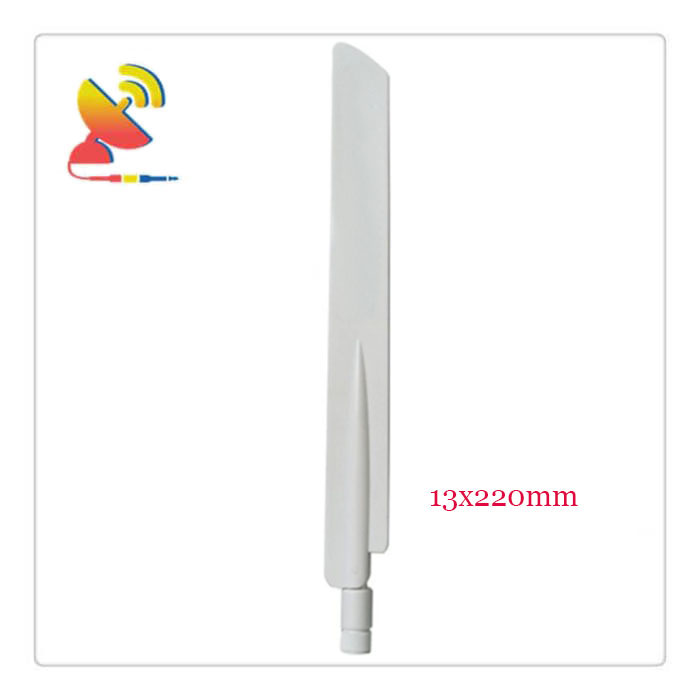

Item: CTRF-ANTENNA-AP-8222-13220W-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 5/7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: White
Dimension: Φ13x220mm

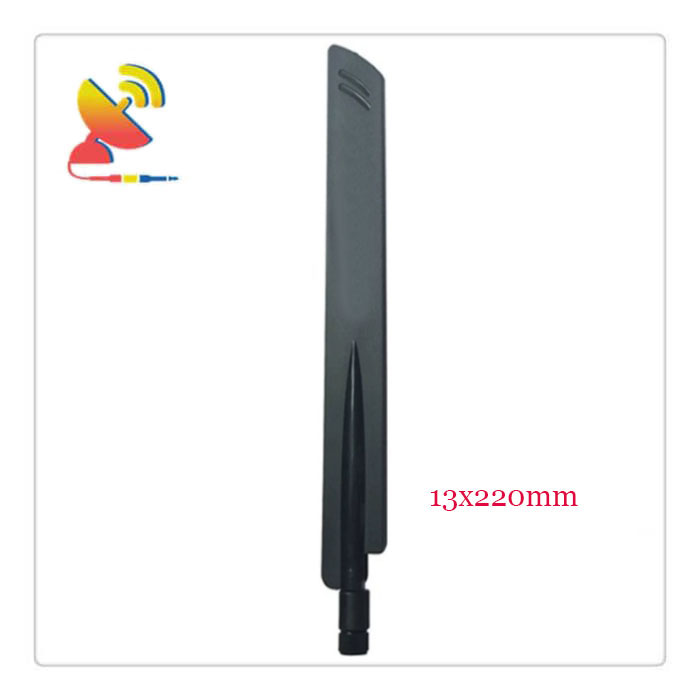

Item: CTRF-ANTENNA-AP-8222-13220B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 5/7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x220mm

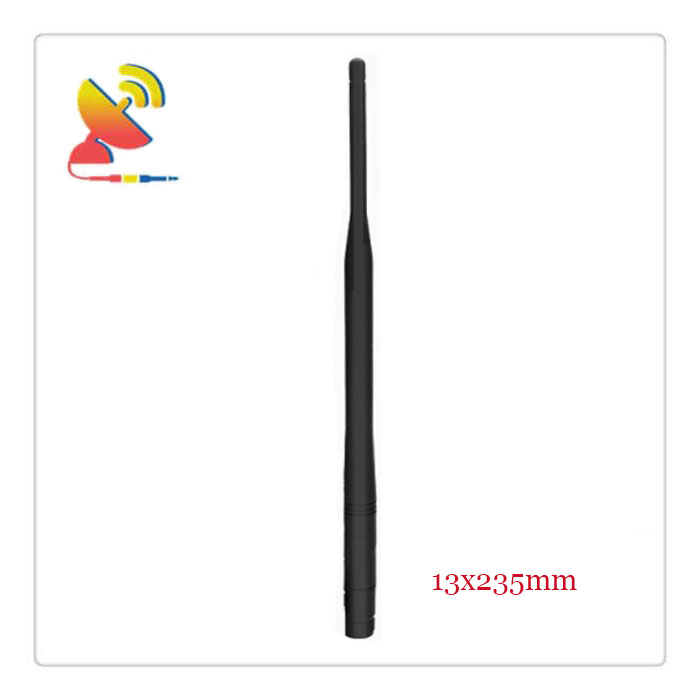

Item: CTRF-ANTENNA-AP-8222-13235-SMA
Specifications:
Material: Plastic ABS
Frequency range: 824-960 MHz, 1710-2200 MHz
Gain: 5/7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x235mm
Besides the rubber duck antennas, C&T RF Antennas Inc. also offers 3G UMTS antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas. etc. Contact us for more specs you need.
