C&T RF Antennas Inc. manufactures a series of high-performance 3G GSM PCB antennas, the internal antennas for 3G GSM frequency band applications. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance 3G GSM PCB antennas, such as the 3G GSM internal antenna datasheet, 3G GSM indoor antenna pricing, and 3G GSM embedded antenna inventory.
Or other 3G GSM antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 3G GSM PCB antennas are internal rigid PCB material antennas with an 824-2170 MHz frequency range, embedded printed circuit board antennas manufactured by C&T RF Antennas Inc. for indoor-outdoor 2G, 3G, GSM, GPRS, PCS, UMTS wireless network communication applications.
The high-performance 3G GSM PCB antennas are multi-band GSM flexible PCB antennas covering 850/900/1800/1900/2100MHz, with an average efficiency 50%, an I-PEX MHF® I connector, and RG cable Ø1.13 antenna extension.
Besides the high-performance 3G GSM PCB antennas, we also provide 13.56 MHz PCB antennas, 433MHz PCB antennas, single-band 868MHz/915MHz PCB antennas, dual-band 868/915MHz PCB antennas, LTE-M/NB-IoT PCB antennas, 4G/LTE PCB antennas, WiFi 2..4GHz/2.4&5GHz PCB antennas, 4GLTE/5GNR/3.5G CBRS PCB antennas, and GNSS/GPS PCB antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
GSM (Global System for Mobile Communications) is a cellular network standard widely used in mobile communications.GSM antennas are widely used in many fields.
2G/GPRS/GSM frequency range: 824- 960MHz, 1710- 1990MHz
3G is the abbreviation of “Third Generation Mobile Communication Technology” (3rd Generation), which refers to the cellular mobile communication technology that supports high-speed data transmission.
3G/UMTS frequency range: 824-960MHz, 1710-2170MHz
The application of 3G GSM PCB antennas mainly includes the following aspects.
3G GSM modules can be used in intelligent home devices to achieve remote control and data transmission. For example, through the 3G network, users can remotely monitor the security system and temperature control equipment at home to achieve intelligent home management.
In Telematics, the 3G GSM module can realise the connection between vehicles and the Internet, providing real-time navigation, remote diagnosis, and vehicle status monitoring. In addition, the 3G network can also support in-vehicle entertainment systems, providing online music and video services.
3G GSM modules are widely used in a variety of IoT devices, such as smart sensors and industrial control devices. Through the 3G network, these devices can realise remote data transmission and control, which are widely used in agriculture, logistics, environmental monitoring, and other fields.
3G GSM module supports mobile commerce applications such as online shopping, mobile payment, and e-banking. Through the 3G network, users can make transactions and payments anytime and anywhere, promoting the development of the mobile Internet economy.
3G GSM module with integrated GPS function can provide map navigation, neighborhood information query, and location sharing service. This has a wide range of applications in areas such as logistics tracking and emergency rescue.
GSM, GPRS, and 3G have played different roles in the development of mobile communications technology.GSM, or Global System for Mobile Communications, is the most widely used mobile phone standard today.
GSM enables the ability to make phone calls, while GPRS, or Generic Packet Radio Service, further expands the ability to transmit data, although the data it transmits needs to be in a specific format.
3G, or third-generation mobile communications technology, offers faster data transmission speeds than GPRS and GSM, supports broadband data services at rates typically above several hundred kbps, and is capable of handling a wide range of media forms, such as images, music, and video, enabling services such as teleconferencing and e-commerce.
C&T RF Antennas Inc. lists high-performance 3G GSM PCB antennas. Below are some of the styles.

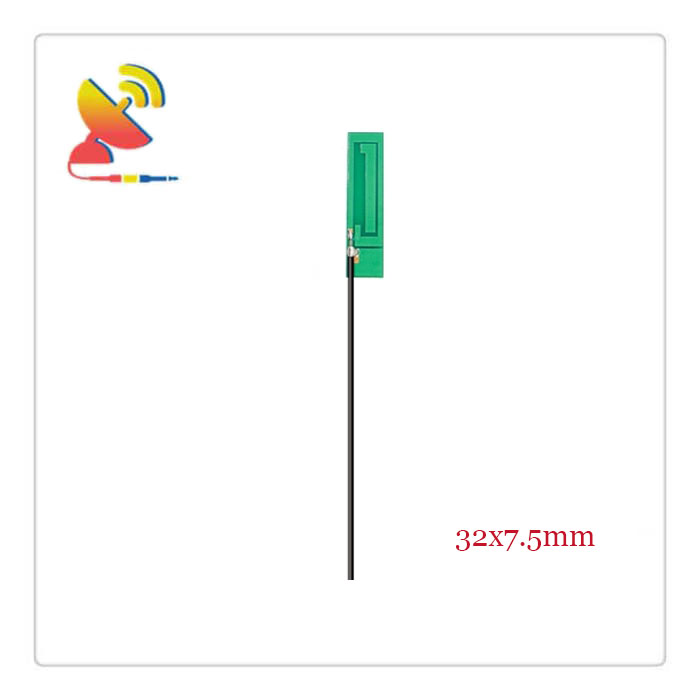

Item: CTRF-ANTENNA-PCB-8221-3207-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ32×7.5mm

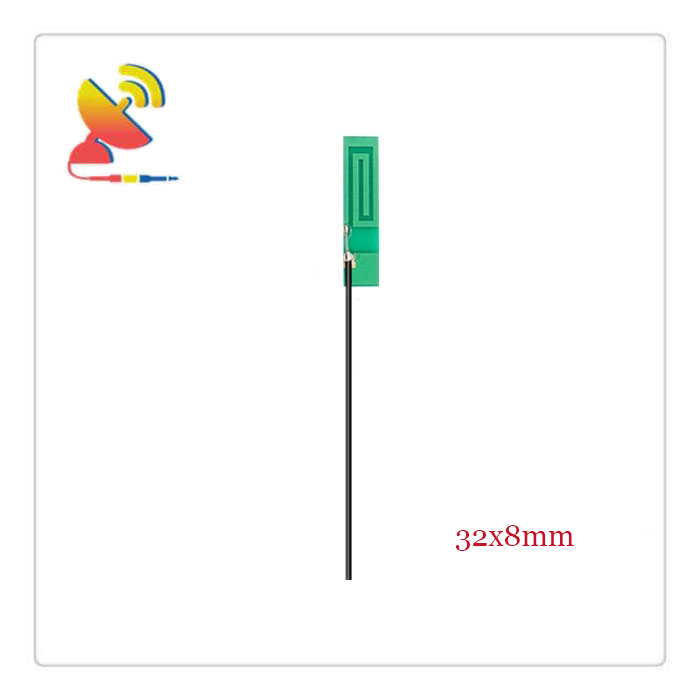

Item: CTRF-ANTENNA-PCB-8221-3208-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ32x8mm

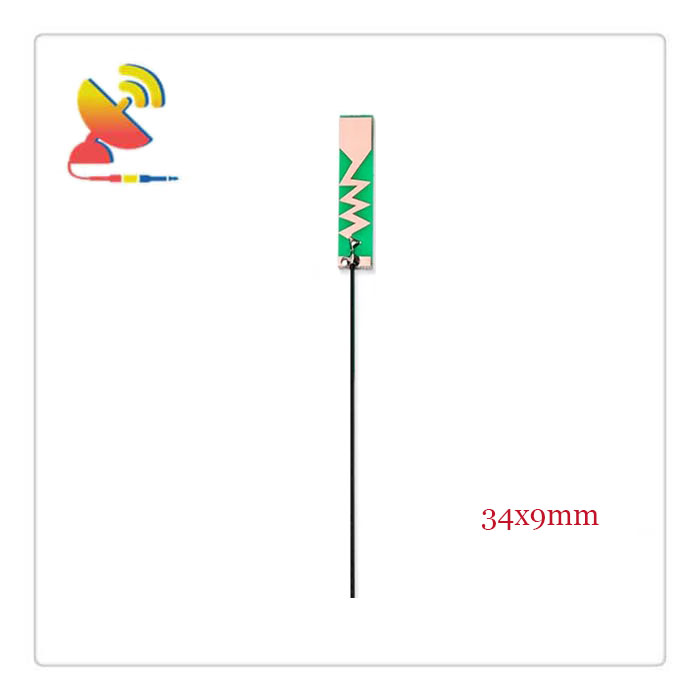

Item: CTRF-ANTENNA-PCB-8221-3409-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ34x9mm

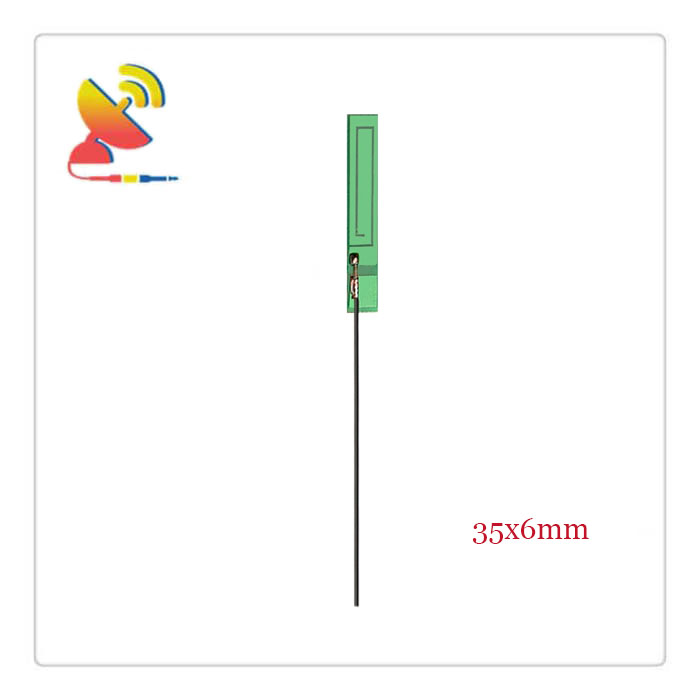

Item: CTRF-ANTENNA-PCB-8221-3506-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ35x6mm

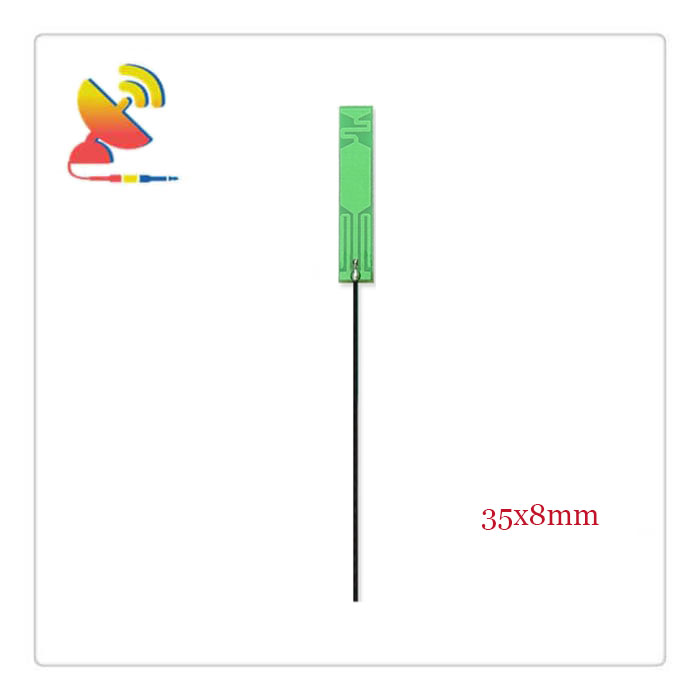

Item: CTRF-ANTENNA-PCB-8221-3508-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ35x8mm

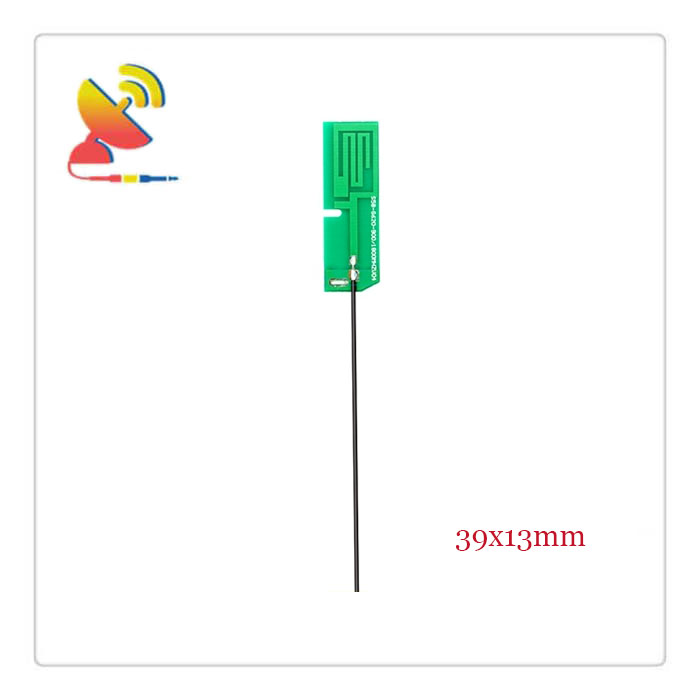

Item: CTRF-ANTENNA-PCB-8221-3913-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ39x13mm

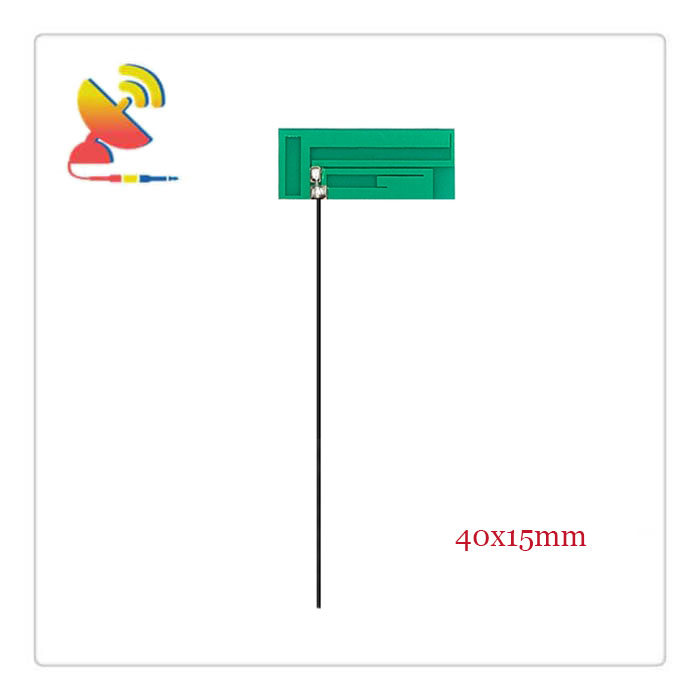

Item: CTRF-ANTENNA-PCB-8221-4015-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Linear
Connector: IPEX
Color: Green
Dimension: Φ40x15mm

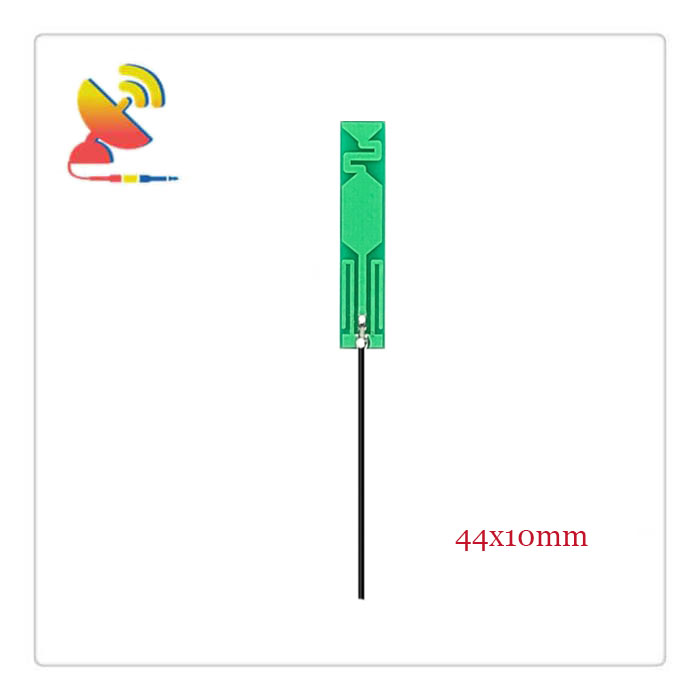

Item: CTRF-ANTENNA-PCB-8221-4410-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ44x10mm

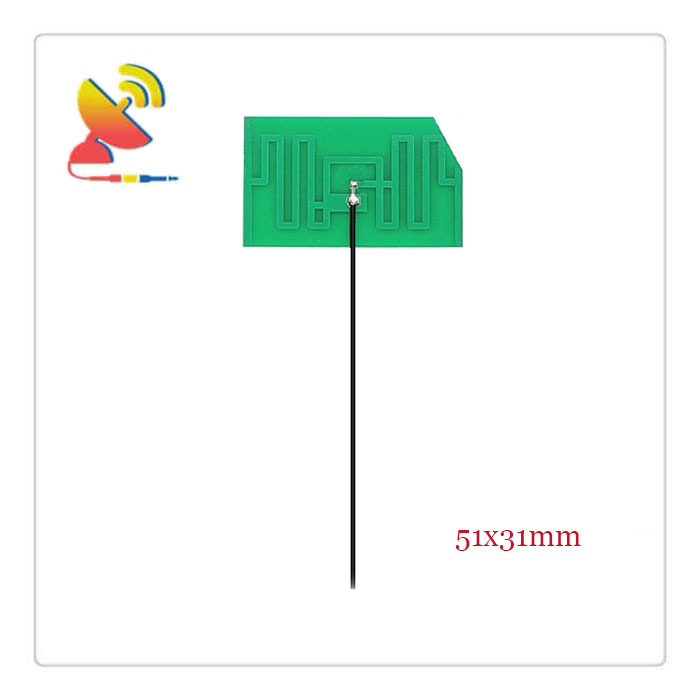

Item: CTRF-ANTENNA-PCB-8221-5131-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Linear
Connector: IPEX
Color: Green
Dimension: Φ51x31mm

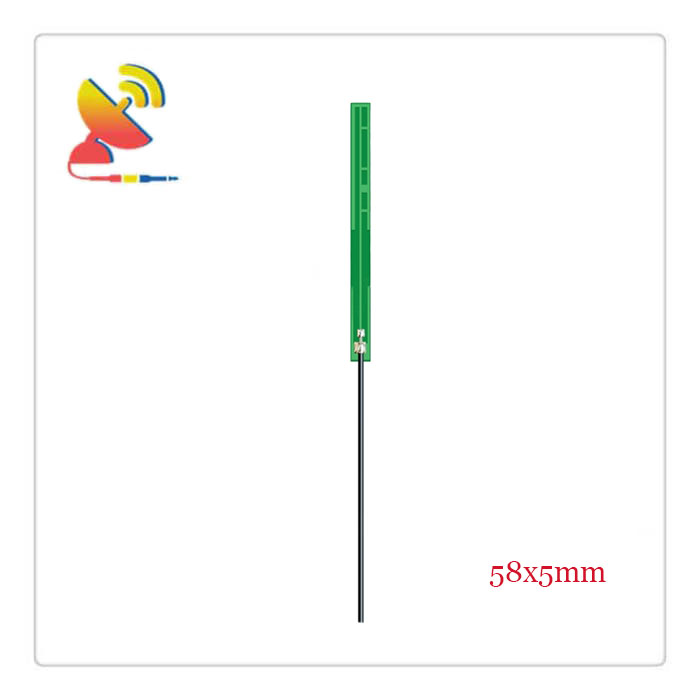

Item: CTRF-ANTENNA-PCB-8221-5805-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ58x5mm

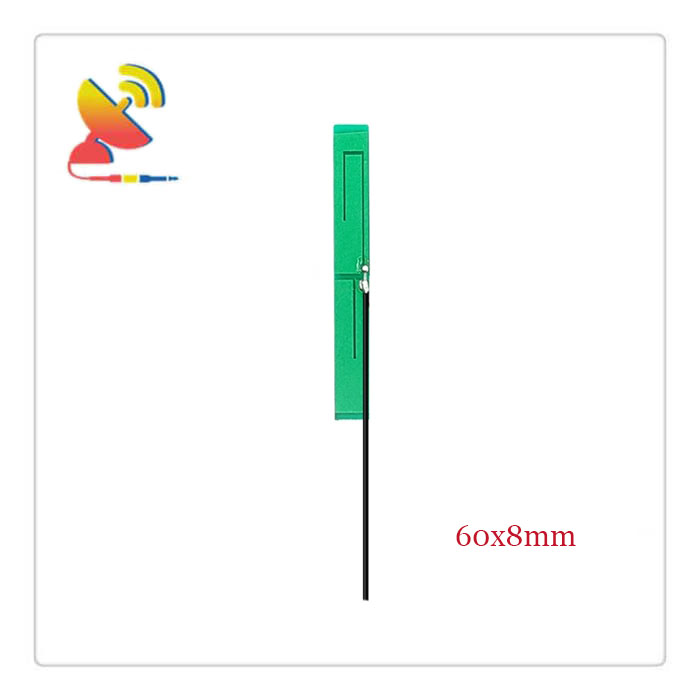

Item: CTRF-ANTENNA-PCB-8221-6008-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ60x8mm

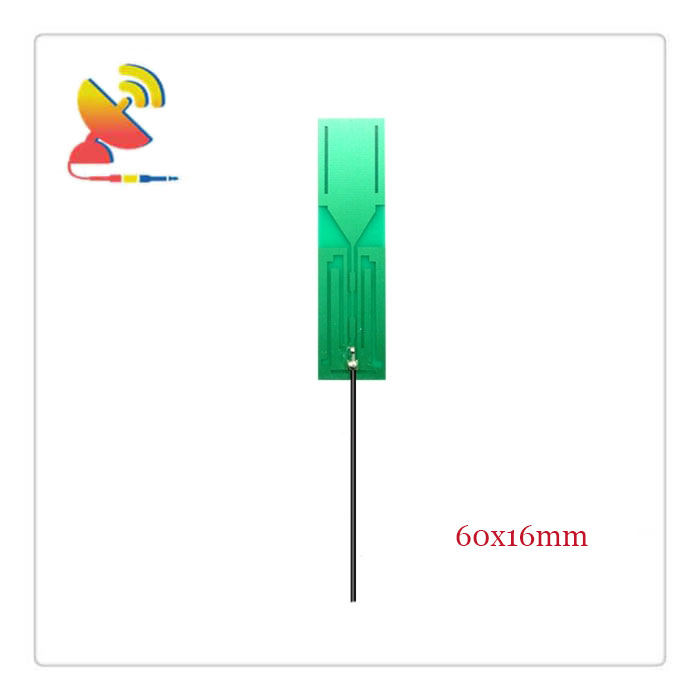

Item: CTRF-ANTENNA-PCB-8221-6016-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Linear
Connector: IPEX
Color: Green
Dimension: Φ60x16mm

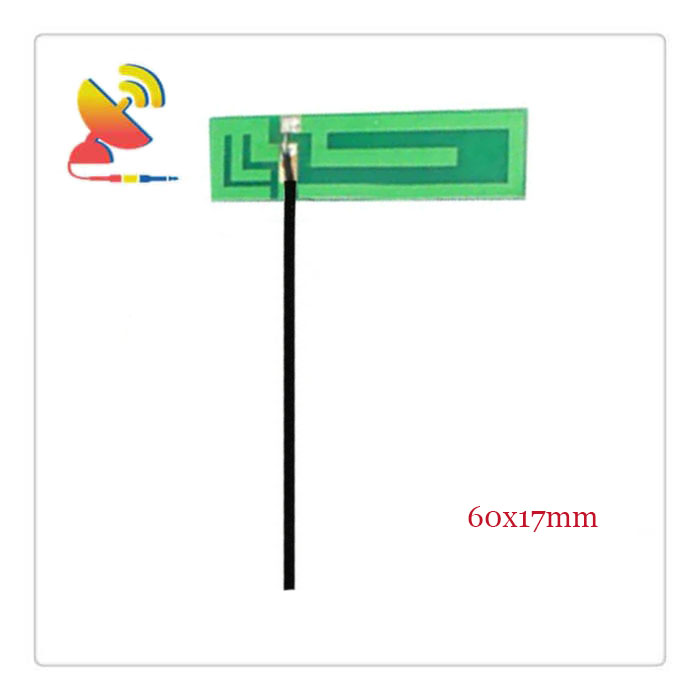

Item: CTRF-ANTENNA-PCB-8221-6017-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ60x17mm

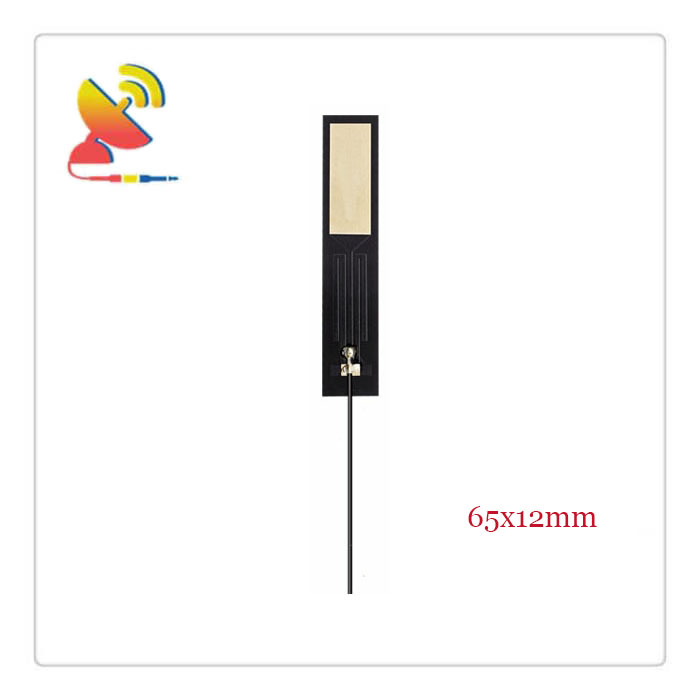

Item: CTRF-ANTENNA-PCB-8221-6512-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Black
Dimension: Φ65x12mm

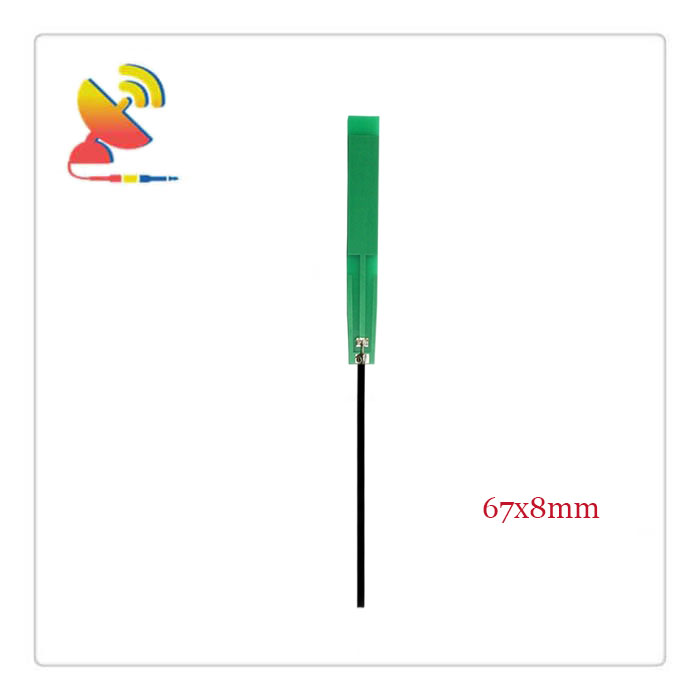

Item: CTRF-ANTENNA-PCB-8221-6708-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ67x8mm

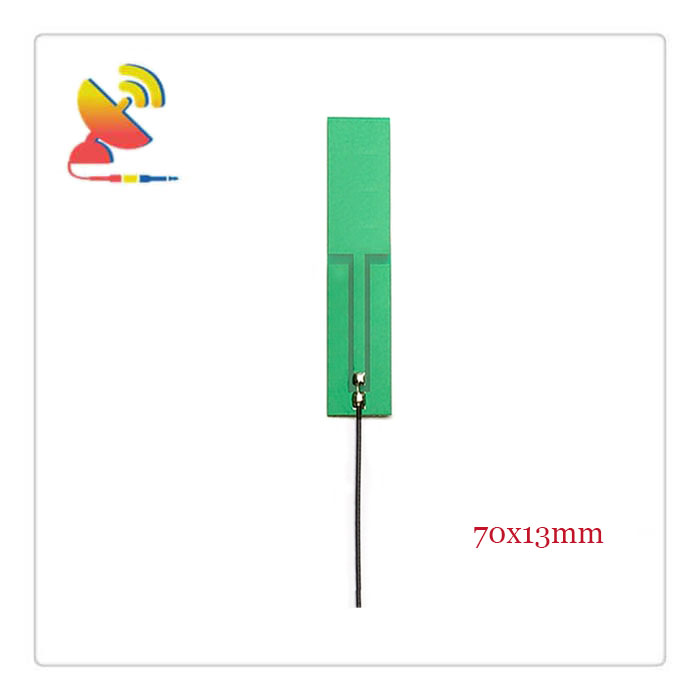

Item: CTRF-ANTENNA-PCB-8221-7013-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ70x13mm
Item: CTRF-ANTENNA-PCB-8221-7431-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ74x31mm
Item: CTRF-ANTENNA-PCB-8221-7522-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ75x22mm

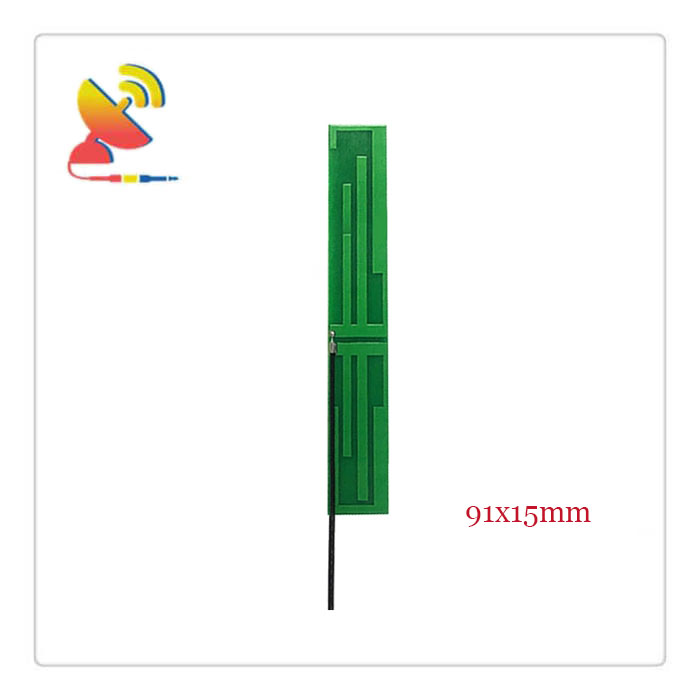

Item: CTRF-ANTENNA-PCB-8221-9115-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ91x15mm

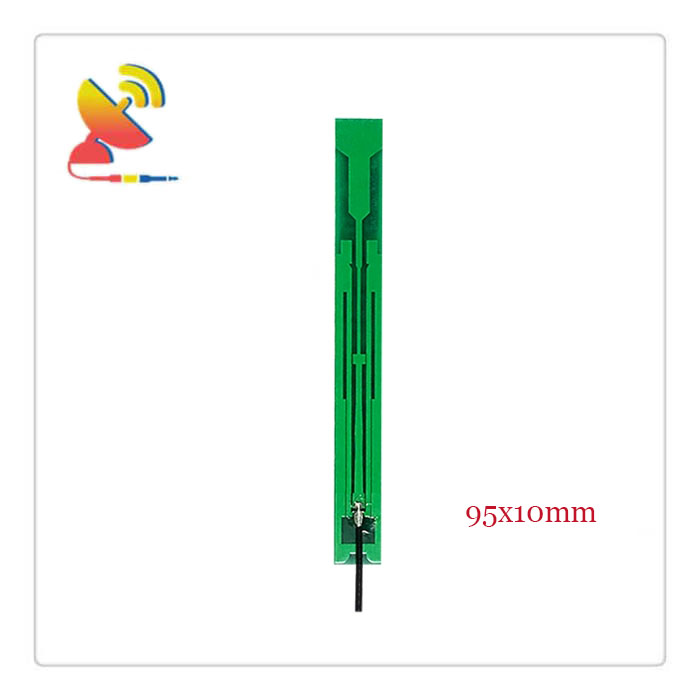

Item: CTRF-ANTENNA-PCB-8221-9510-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ95x10mm

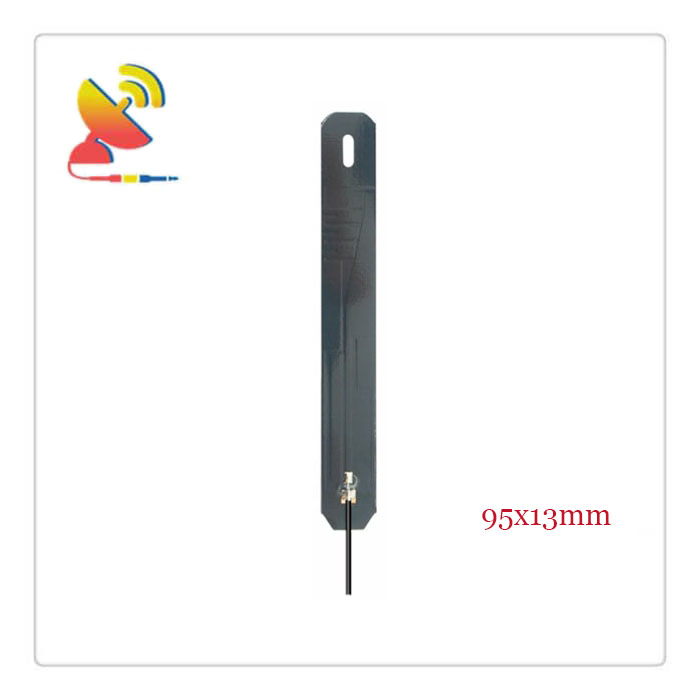

Item: CTRF-ANTENNA-PCB-8221-9513-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Black
Dimension: Φ95x13mm
Item: CTRF-ANTENNA-PCB-8221-9514-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ95x14mm

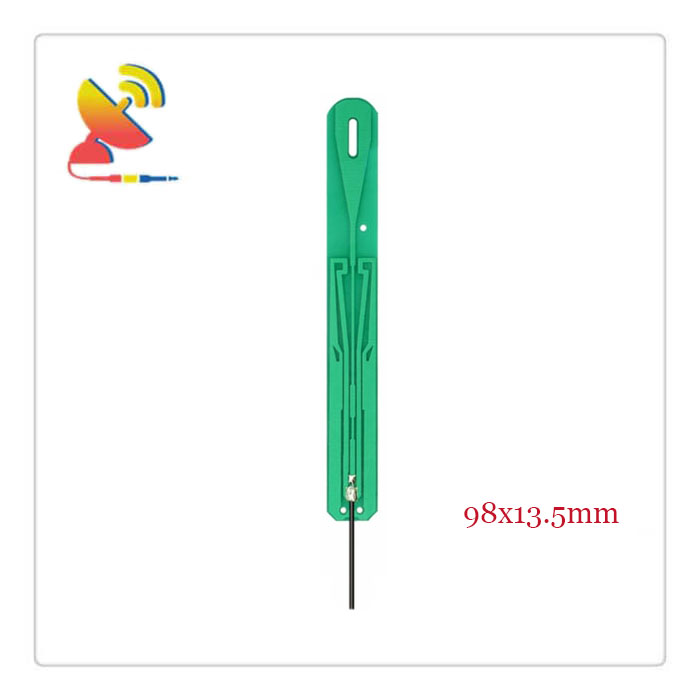

Item: CTRF-ANTENNA-PCB-8221-9813-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ98×13.5mm
Item: CTRF-ANTENNA-PCB-8221-10514-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ105x14mm

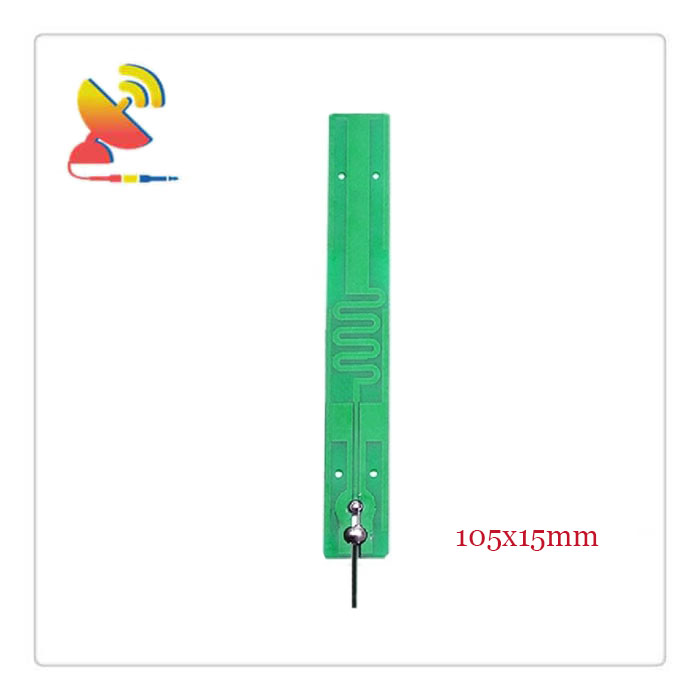

Item: CTRF-ANTENNA-PCB-8221-10515-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ105x15mm
Item: CTRF-ANTENNA-PCB-8221-10520-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Brown
Dimension: Φ105×20.5mm

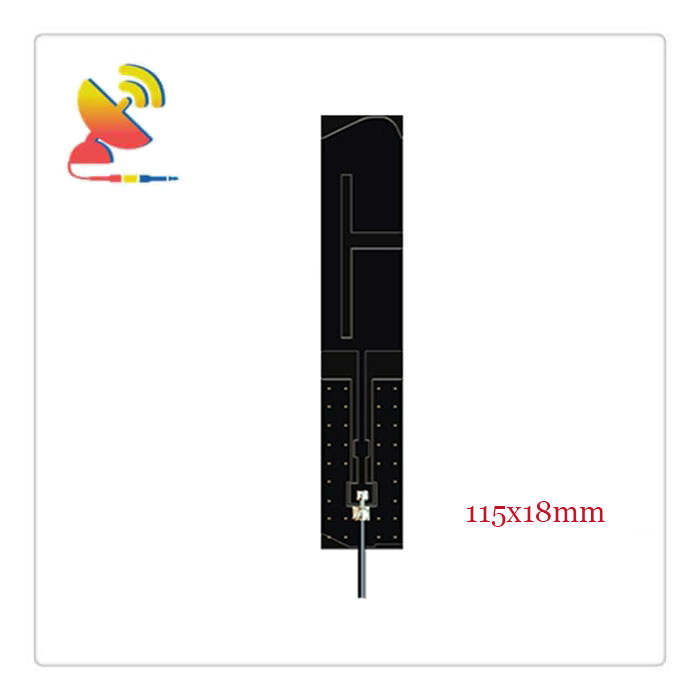

Item: CTRF-ANTENNA-PCB-8221-11518-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Black
Dimension: Φ115x18mm

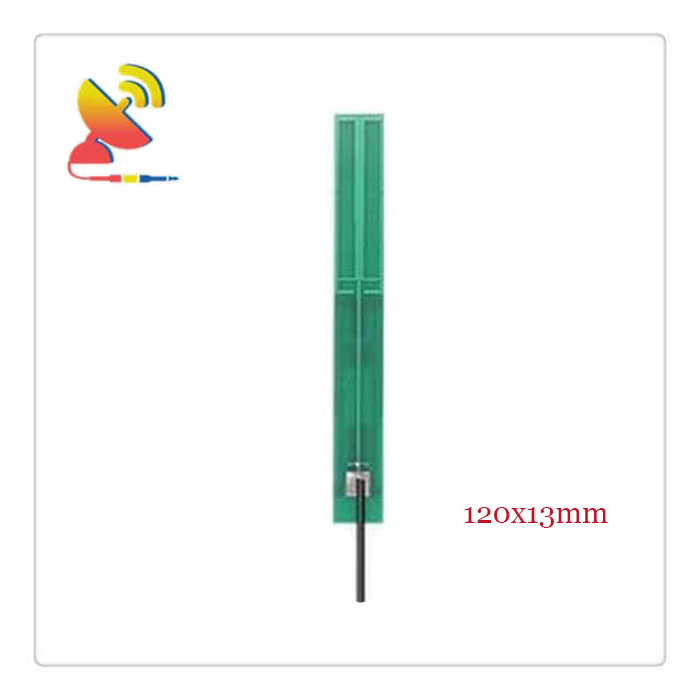

Item: CTRF-ANTENNA-PCB-8221-12013-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ120x13mm

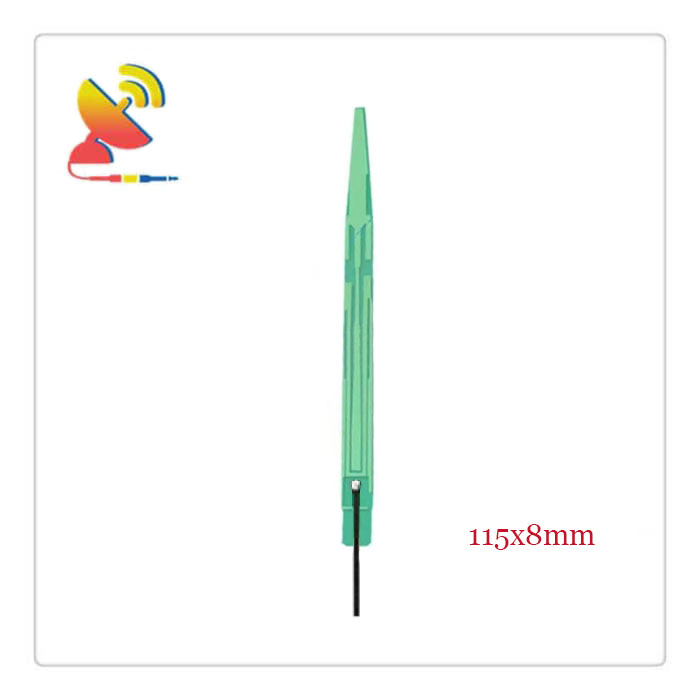

Item: CTRF-ANTENNA-PCB-8221-11508-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ115x8mm

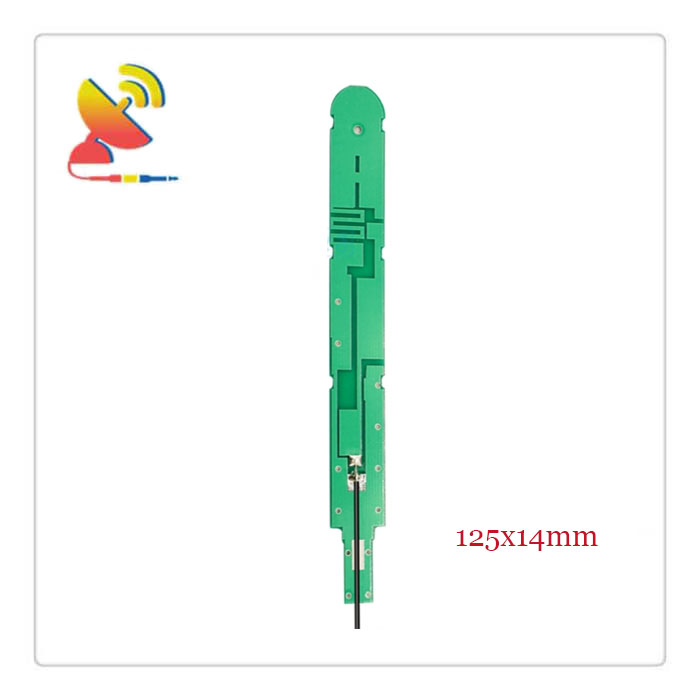

Item: CTRF-ANTENNA-PCB-8221-12514-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ125x14mm

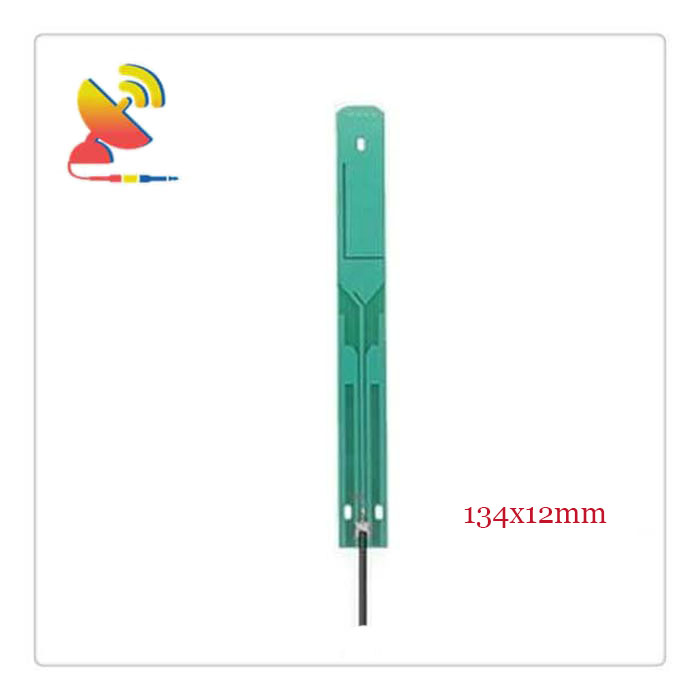

Item: CTRF-ANTENNA-PCB-8221-13412-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 12dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ134x12mm
Item: CTRF-ANTENNA-PCB-8221-13632-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 14dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ136.5×32.5mm

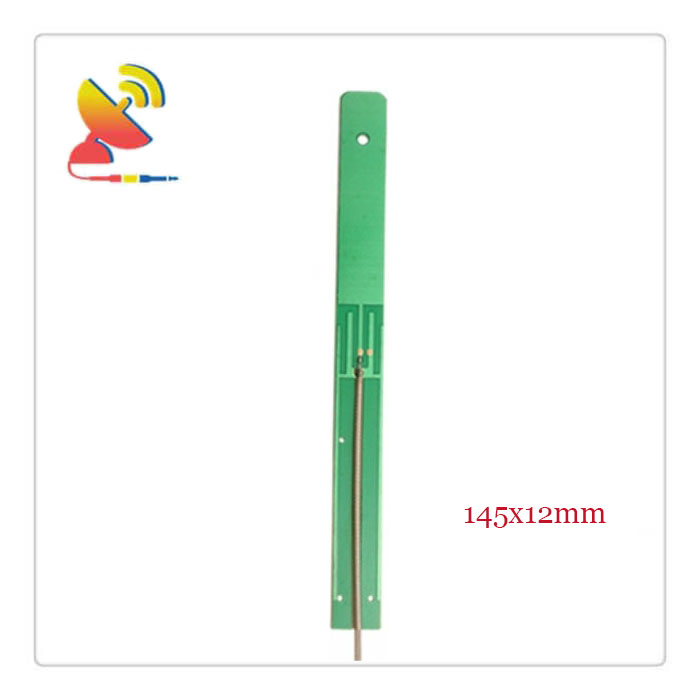

Item: CTRF-ANTENNA-PCB-8221-14512-IPEX
Specifications:
Material: PCB
Frequency: 824-960 MHz, 1710-2170 MHz
Gain: 14dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX
Color: Green
Dimension: Φ145x12mm
Besides the PCB antennas, C&T RF Antennas Inc. also offers 3G GSM LTE antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas, internal ceramic antennas, flexible PCB antennas, helical antennas, etc. Contact us for more specs you need.
