C&T RF Antennas Inc. manufactures a series of high-performance 3.5 GHz CBRS PCB antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance 3.5 GHz CBRS PCB antennas, such as the antenna datasheet, pricing, and 3.5 GHz CBRS PCB antennas inventory.
Or other indoor-outdoor 3.5 GHz CBRS antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.

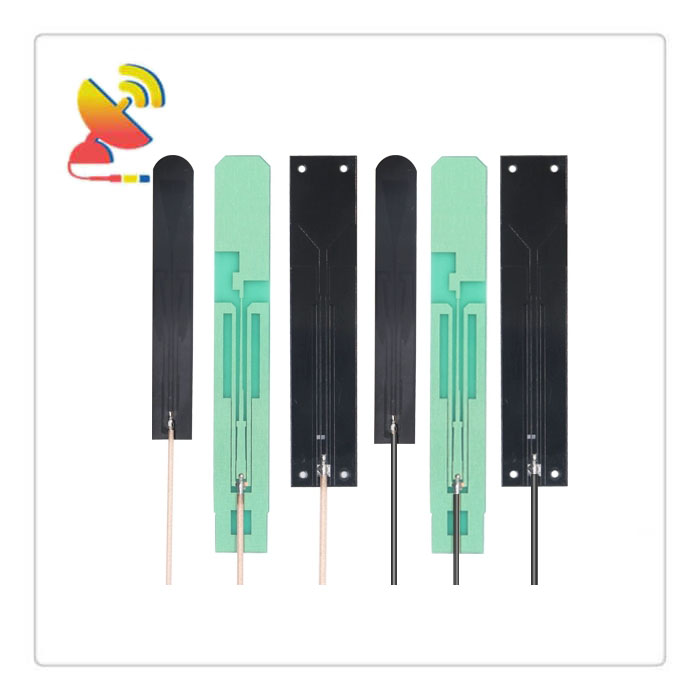

The high-performance 3.5 GHz CBRS PCB antennas are built-in printed circuit board(PCB) antennas with 3.5 GHz CBRS bands antennas manufactured by C&T RF Antennas Inc. for LTE, new radio 5G cellular IoT, M2M industries, and wireless network communications.
The high-performance 3.5 GHz CBRS PCB antennas support a 3300- 3800MHz frequency range working for the 5G Citizen Broadband Radio Service band from 3.3 GHz to 3.8 GHz.
Besides the high-performance 3.5 GHz CBRS PCB antennas, we also provide 13.56 MHz PCB antennas, 433MHz PCB antennas, single-band 868MHz/915MHz PCB antennas, dual-band 868/915MHz PCB antennas, LTE-M/NB-IoT/3G GSM PCB antennas, WiFi 2..4GHz/2.4&5GHz PCB antennas, 4G/LTE PCB antennas, 5G NR PCB antennas, and GNSS/GPS PCB antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
The 3.5 GHz CBRS band has the most commonly used frequency range of 3550 MHz to 3700 MHz.
CBRS (Citizens Broadband Radio Service) is the band that the Federal Communications Commission (FCC) decided in 2015 to use for the Citizens Broadband Radio Service. This band has a total bandwidth of 150 MHz and spans the existing LTE band 42 (3400 MHz to 3600 MHz) and LTE band 43 (3600 MHz to 3800 MHz).
CBRS is also known as the Citizens Broadband Radio Service (CBRS), which is a series of 150 MHz of spectrum (3.55 to 3.7 GHz) in the 3.5 GHz band (‘Band 48’).
While CBRS is an interesting topic from a marketing perspective, from a technical perspective, CBRS is simply a series of 150 MHz of spectrum (3.55 to 3.7 GHz) available only in the United States that can be used for dedicated mobile networks.
The primary uses of CBRS spectrum are as follows.
Massive expansion, or to provide additional wireless capacity for operators’ large-scale networks, especially in urban environments, for backhaul Fixed Wireless Access (FWA) and privately owned and operated enterprise and municipal mobile networks.

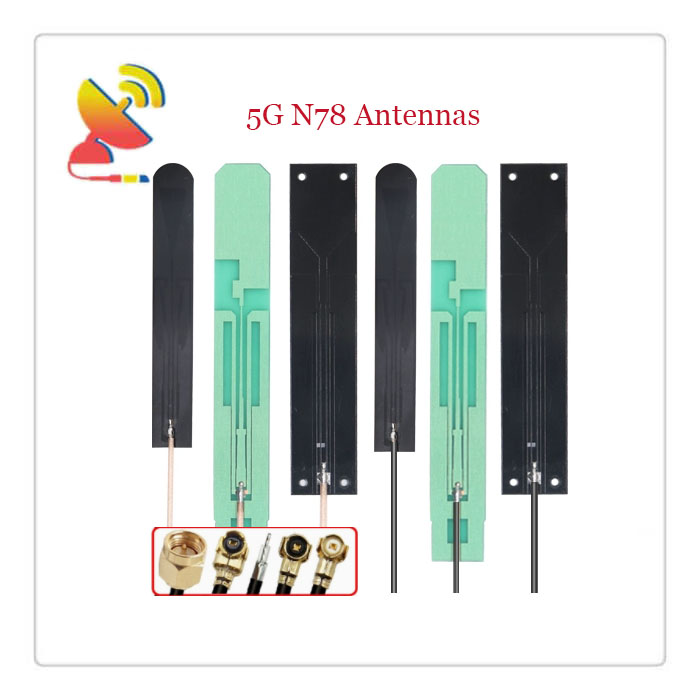

C&T RF Antennas Inc. provides high-performance 3.5 GHz CBRS PCB antennas. Below are some of them.

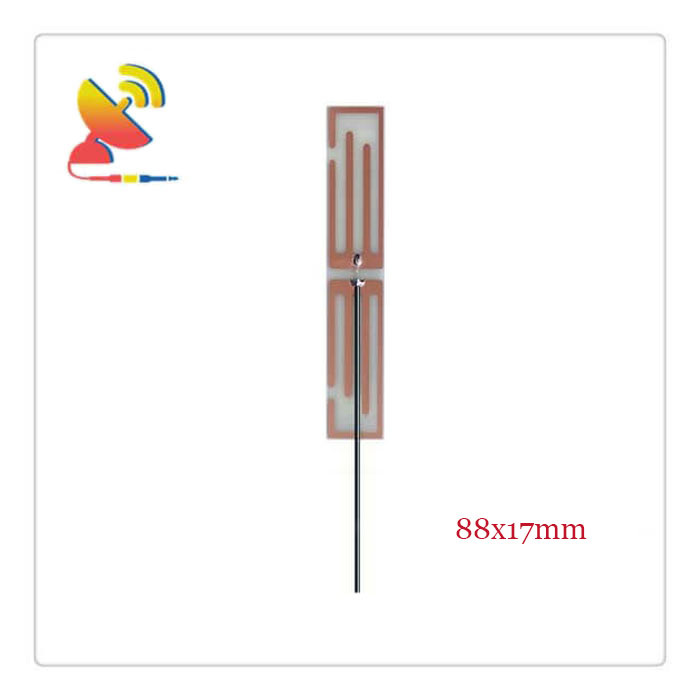

Item: CTRF-ANTENNA-PCB-CBRS-8817-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Brown
Dimension: Φ88x17mm

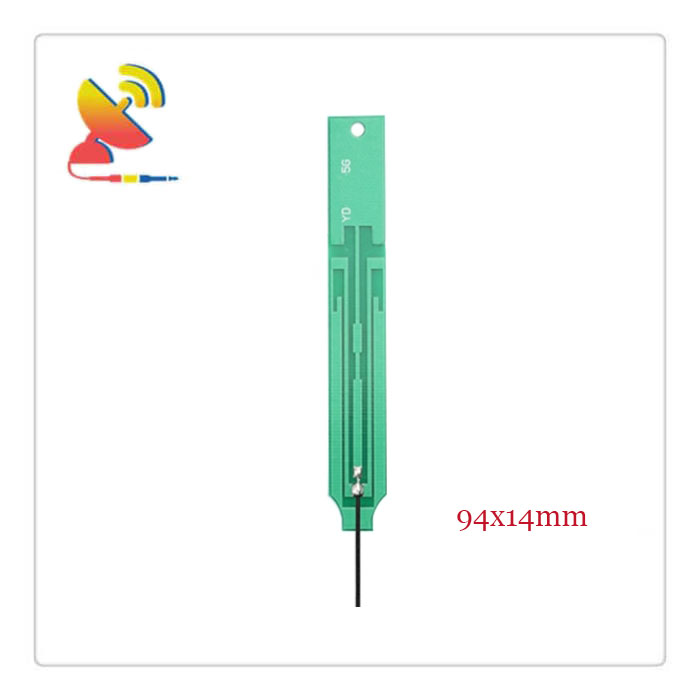

Item: CTRF-ANTENNA-PCB-CBRS-9414-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Green
Dimension: Φ94x14mm

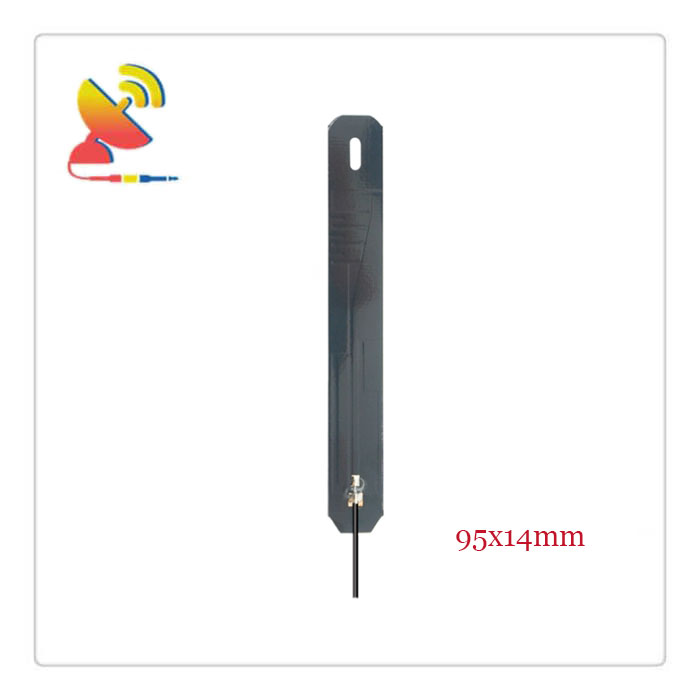

Item: CTRF-ANTENNA-PCB-CBRS-9514-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 7dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Black
Dimension: Φ95x14mm

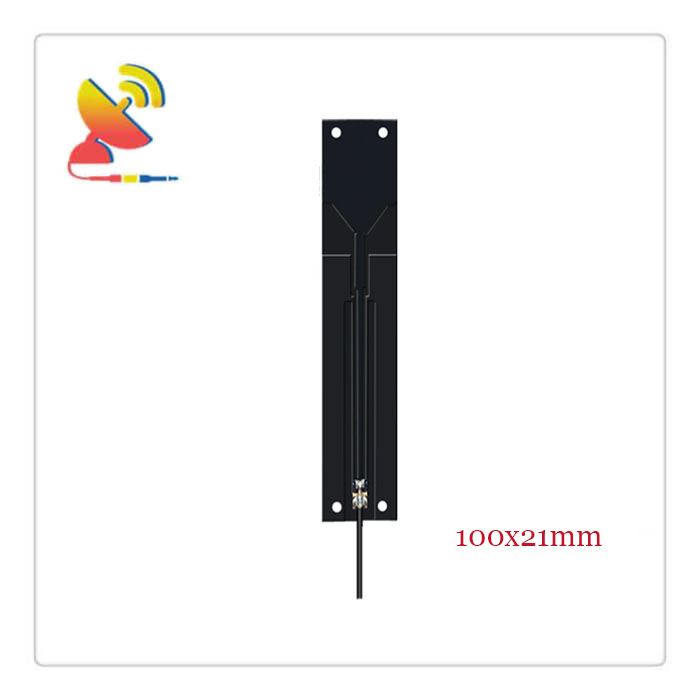

Item: CTRF-ANTENNA-PCB-CBRS-10021-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Black
Dimension: Φ100x21mm

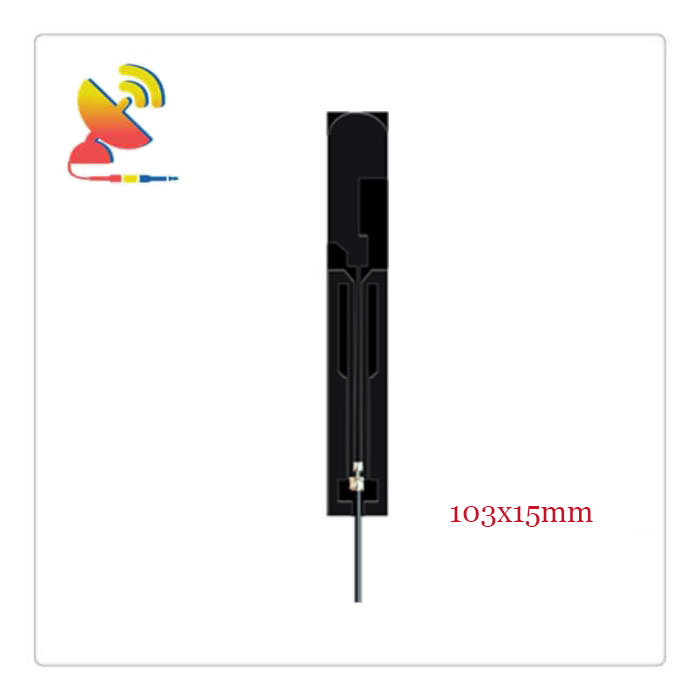

Item: CTRF-ANTENNA-PCB-CBRS-10315-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Black
Dimension: Φ103x15mm

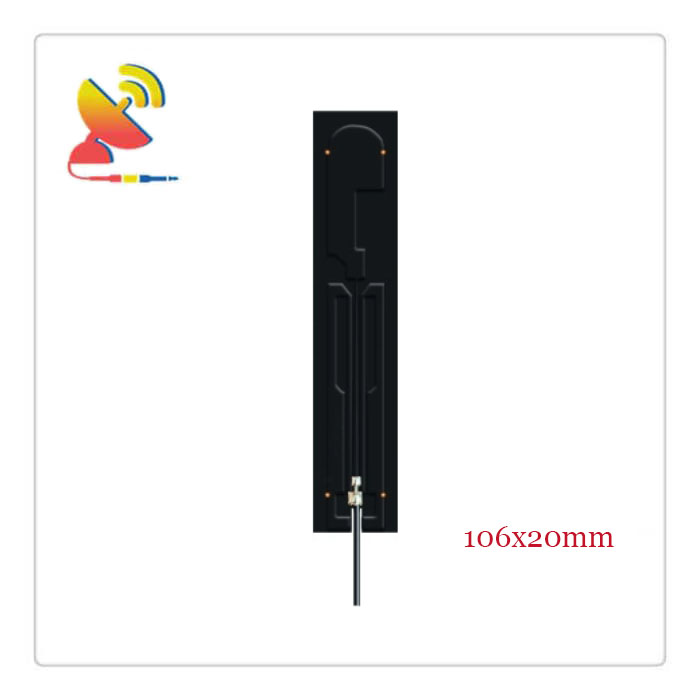

Item: CTRF-ANTENNA-PCB-CBRS-10620-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Black
Dimension: Φ106x20mm

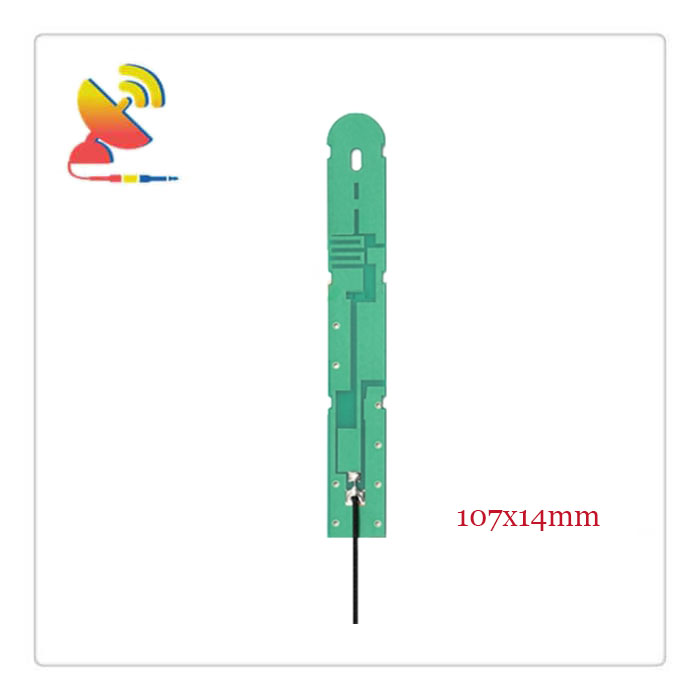

Item: CTRF-ANTENNA-PCB-CBRS-10714-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Green
Dimension: Φ107x14mm

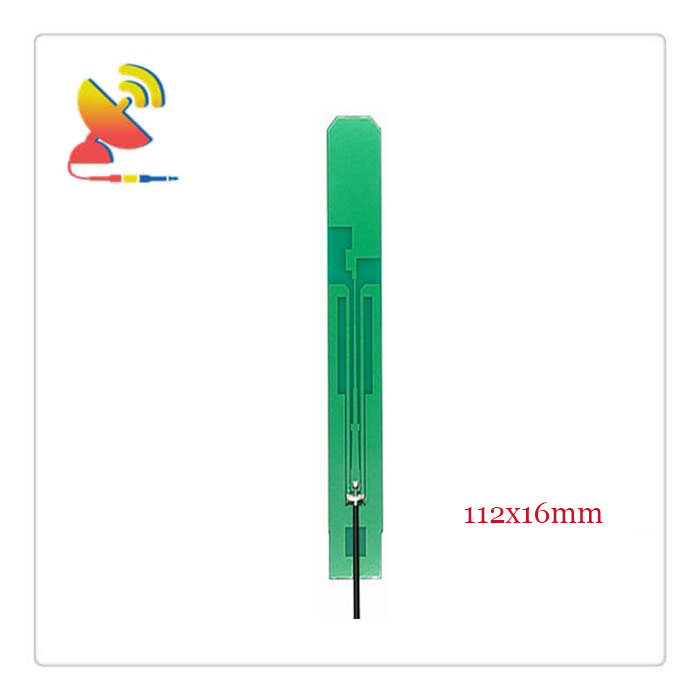

Item: CTRF-ANTENNA-PCB-CBRS-11216-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Green
Dimension: Φ112x16mm

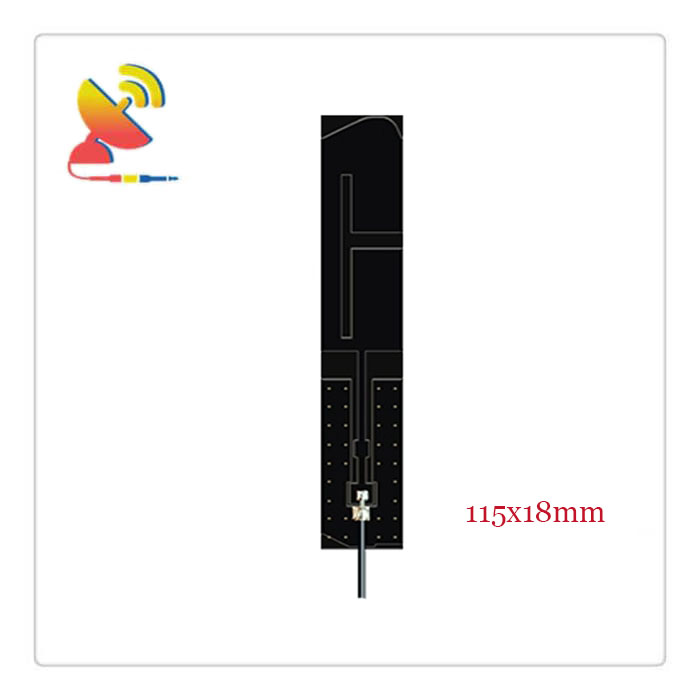

Item: CTRF-ANTENNA-PCB-CBRS-11518-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 10dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Black
Dimension: Φ115x18mm

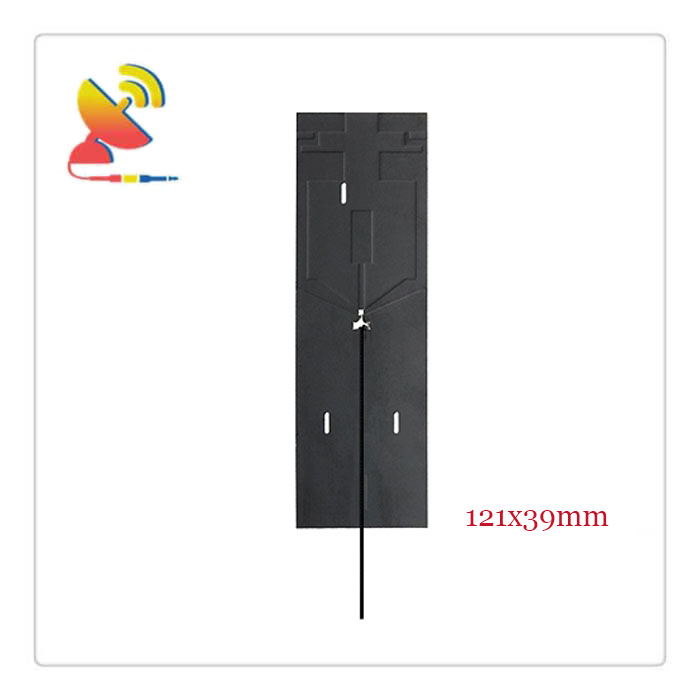

Item: CTRF-ANTENNA-PCB-CBRS-12139-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 14dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Black
Dimension: Φ121x39mm

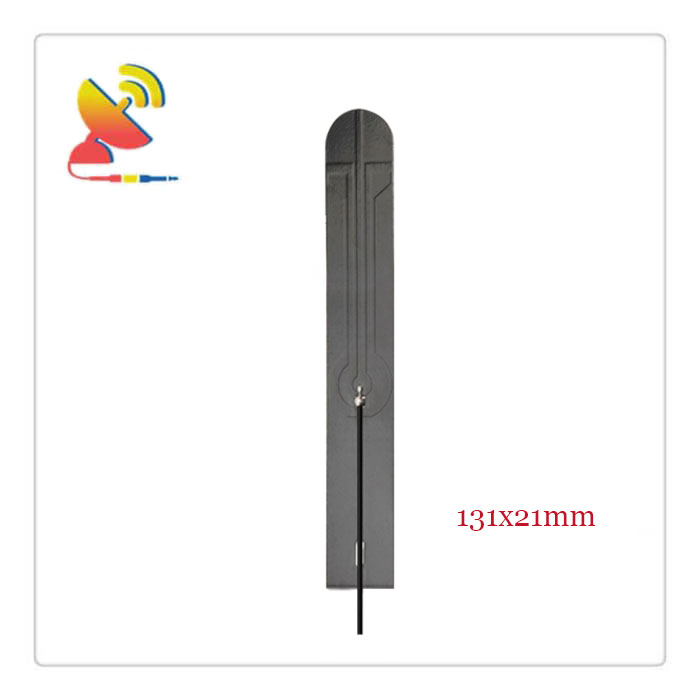

Item: CTRF-ANTENNA-PCB-CBRS-13121-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 14dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Black
Dimension: Φ131x21mm

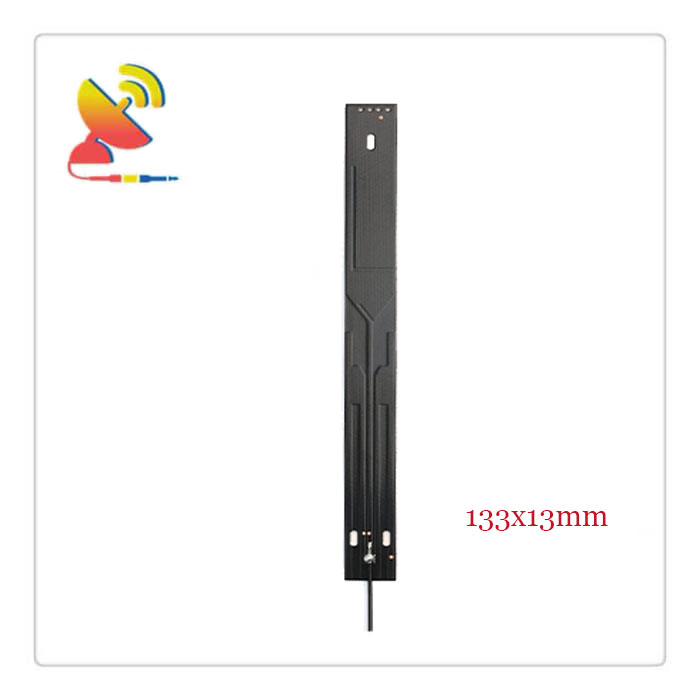

Item: CTRF-ANTENNA-PCB-CBRS-13313-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 14dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Black
Dimension: Φ133x13mm

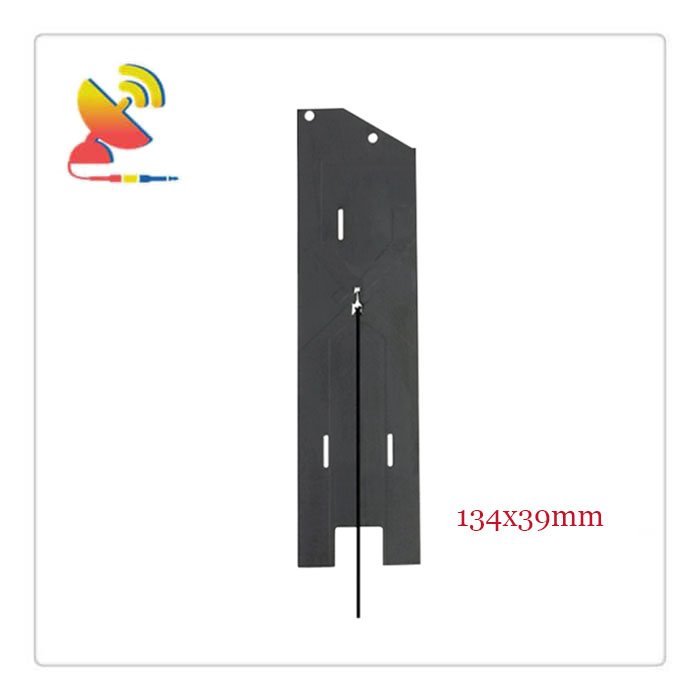

Item: CTRF-ANTENNA-PCB-CBRS-13439-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 15dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Black
Dimension: Φ134x39mm

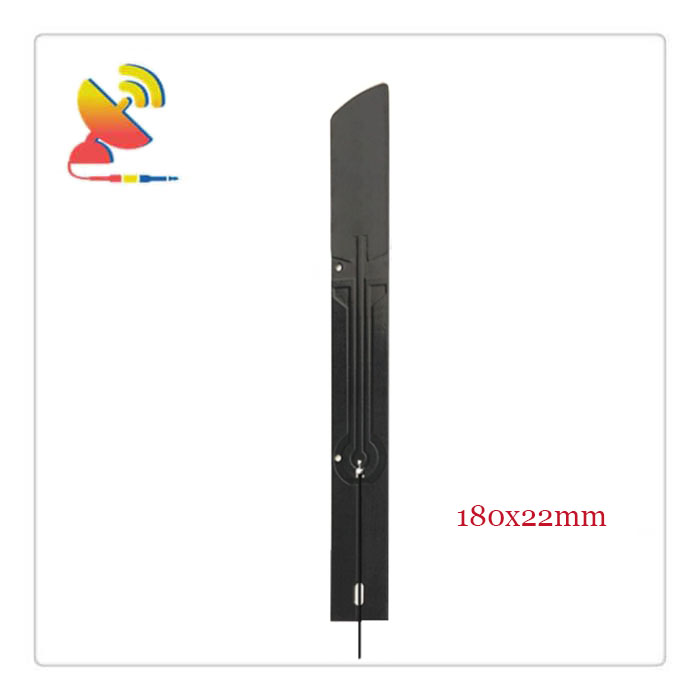

Item: CTRF-ANTENNA-PCB-CBRS-18022-IPEX
Specifications:
Material: Rigid printed circuit board/PCB
Frequency range: 3300-3800 MHz
Gain: 16dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX (u, FL/MHF1 or opening end)
Color: Black
Dimension: Φ180x22mm

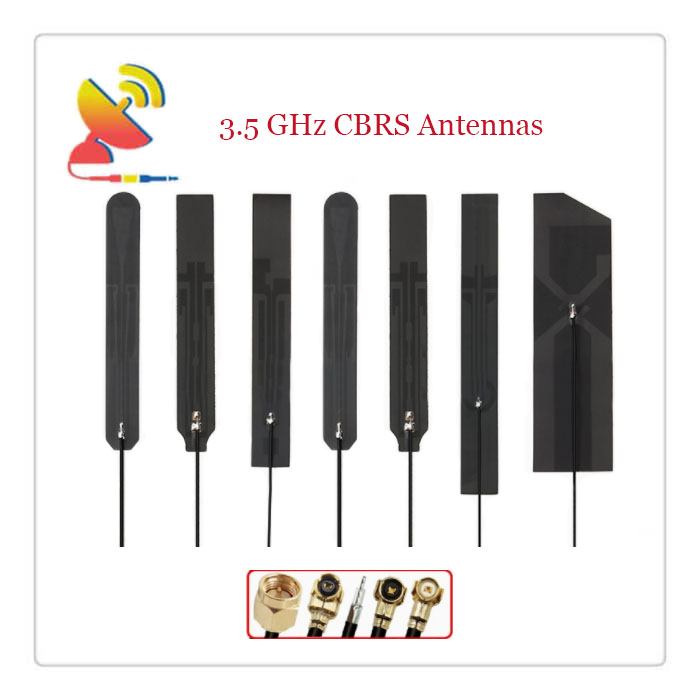

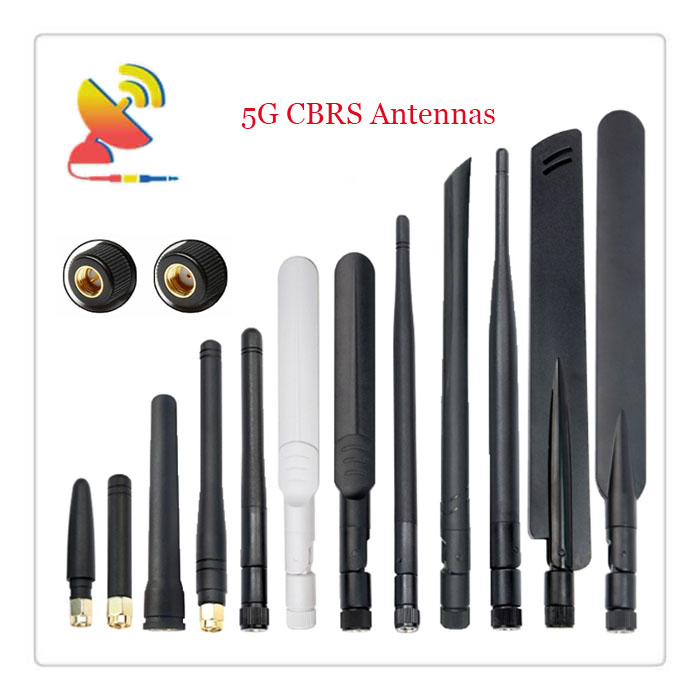

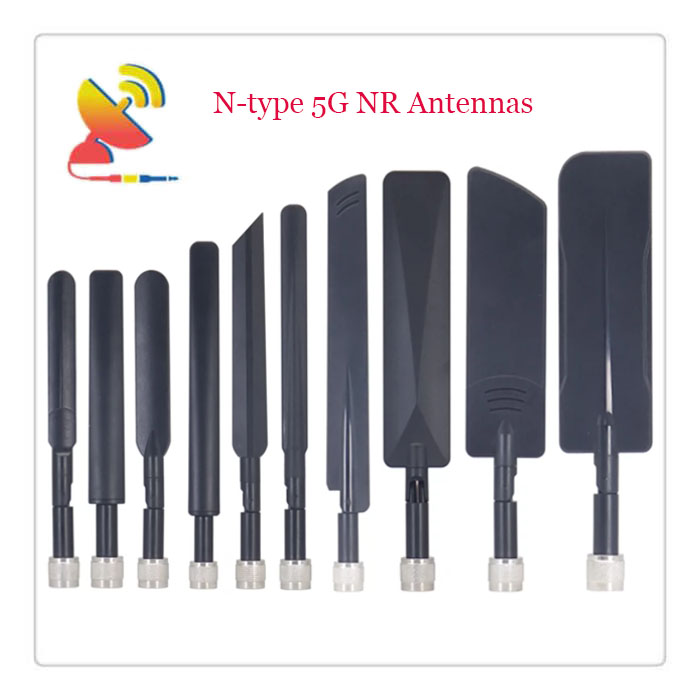

In addition to the PCB antennas, C&T RF Antennas Inc. also offers LTE 3.5 GHz CBRS antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas, internal ceramic antennas, flexible PCB antennas, helical antennas, etc. Contact us for more specs you need.
