C&T RF Antennas Inc. manufactures a series of 230 MHz VHF SMA antennas. The Omnidirectional rubber duck antennas with SMA male plug connector 230 MHz Omni antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance 230 MHz VHF SMA antennas such as the 230 MHz SMA antenna datasheet, 230MHz VHF antenna pricing, and 230 MHz band antennas inventory.
Or other indoor-outdoor 230 MHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 230 MHz VHF SMA antennas are rubber duck antennas manufactured by C&T RF Antennas Inc. for indoor-outdoor 210-250 MHz VHF band applications such as Digital Audio Broadcasting (DAB) and FM radio broadcasting, television broadcasting, two-way land mobile radio systems (emergency, business, private use and military), and long-range data communication, etc.
Besides the high-performance 230 MHz SMA antennas, we also provide 433MHz SMA antennas, single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/UMTS/LTE/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, 2.4GHz, 5GHz single-band and dual-band 2.4/5GHz WiFi SMA antennas, SMA GPS antennas, 169MHz/315MHz SMA antennas, 1.2G/1.4G/1.8G SMA antennas
Rubber duck antennas with N-type connectors, such as 4G 5G N-type antennas, 3.5GHz CBRS N-type antennas, N-male 2.4 GHz & 5GHz antennas. Rubber duck antennas with IPEX/u.FL/MHF connectors such as IPEX 2.4GHz WiFi antennas, 2.4/5GHz dual-band IPEX antennas, and Omni IPEX.GSM NB-IoT 4G 5G antennas. for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
230 MHz band is the Band III.
Band III is the name of the range of radio frequencies within the very high frequency (VHF) part of the electromagnetic spectrum from 174 to 240 megahertz (MHz). It is primarily used for radio and television broadcasting.
External VHF antenna
SMA rubber antenna
High-performance antenna
Portable antenna
Omnidirectional antenna
210-230-250 MHz VHF antenna
etc.
The 230 MHz band antenna, part of the Very High-Frequency (VHF) radio spectrum antenna, is used for a variety of applications, including land mobile communications, Internet of Things (IoT), and Defence Force use, as well as radio microphones and DAB (Digital Audio Broadcasting).

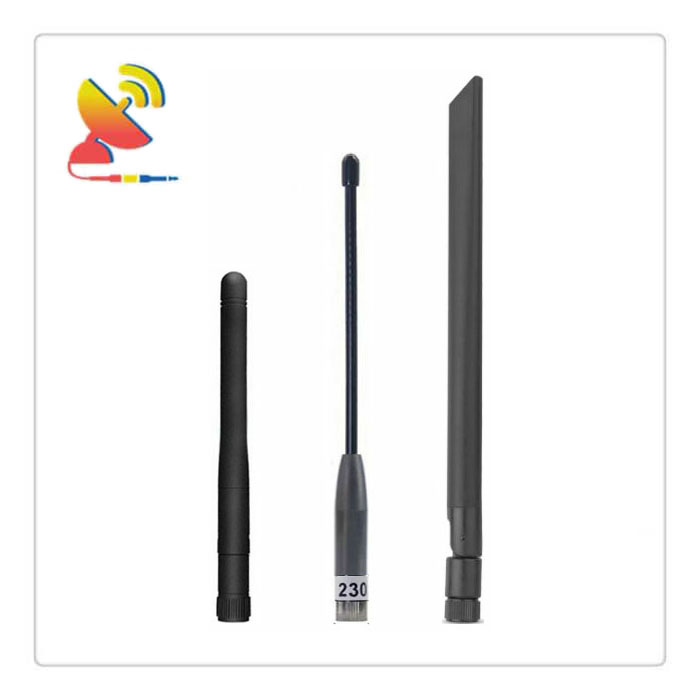

C&T RF Antennas Inc. provides high-performance 230 MHz VHF SMA antennas rubber duck antennas. Below are some of the 230 MHz VHF band SMA antennas.
Item: CTRF-ANTENNA-AP-0230-10110-SMA
Specifications:
Material: Plastic ABS
Frequency range: 210-250 MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ10x110mm

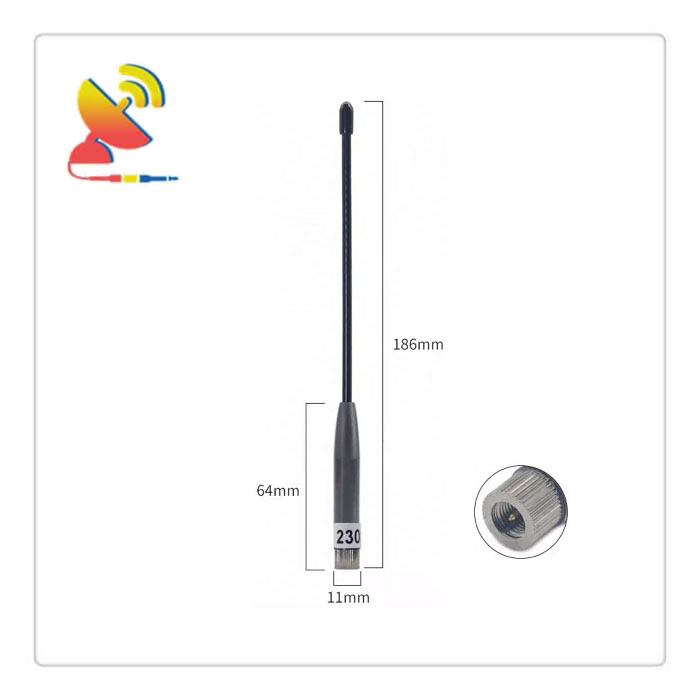

Item: CTRF-ANTENNA-AP-0230-11186-SMA
Specifications:
Material: Plastic ABS
Frequency range: 210-250 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ11x186mm

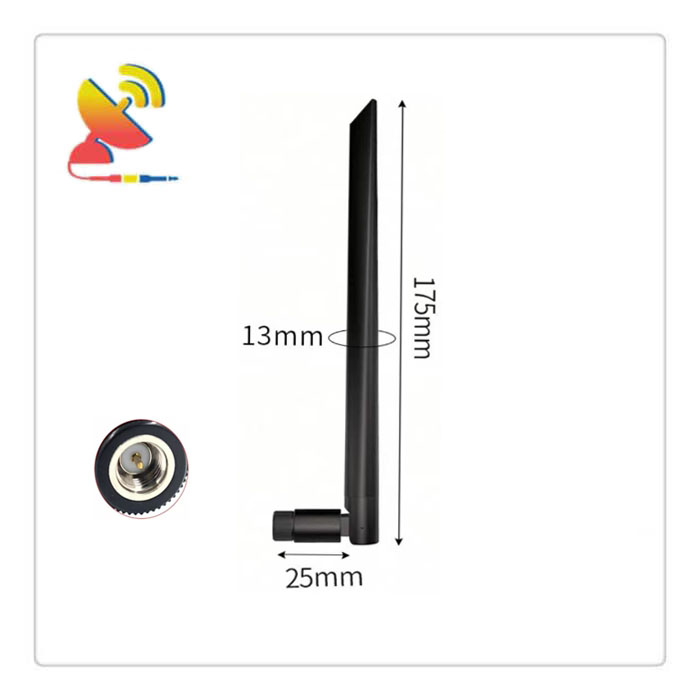

Item: CTRF-ANTENNA-AP-0230-13200-SMA
Specifications:
Material: Plastic ABS
Frequency range: 210-250 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Straight SMA Male
Color: Black
Dimension: Φ13x200mm
In addition to the rubber duck antennas, C&T RF Antennas Inc. also offers 230 MHz antennas of various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
