C&T RF Antennas Inc. manufactures a series of 2.4 GHz WiFi PCB antennas. The internal PCB antennas for all 2.4 GHz frequency band applications. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the 2.4 GHz WiFi PCB antennas, such as the 2.4 GHz WiFi antenna datasheet, 2.4 GHz antenna pricing, and WiFi PCB antenna inventory.
Or other internal-external WiFi antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 2.4 GHz WiFi PCB antennas are embedded/internal/built-in rigid printed circuit board antennas specifically designed for 2.4 to 2.5 GHz wireless antennas manufactured by C&T RF Antennas Inc. for all 2.4 GHz bands such as WiFi, Bluetooth, Zigbee, Sigfox, etc.
The high-performance 2.4 GHz WiFi PCB antennas are a type of antenna designed to operate in the 2.4 GHz ISM (Industrial, Scientific, and Medical) band. Which comes with self-adhesive backings, IPEX/u.FL/MHF connectors in common. SMA male connectors or opening-end cable extensions are also available.
Besides the high-performance 2.4 GHz WiFi PCB antennas, we also provide 13.56 MHz PCB antennas, 433MHz PCB antennas, single-band 868MHz/915MHz PCB antennas, dual-band 868/915MHz PCB antennas, LTE-M/NB-IoT/3G GSM PCB antennas, WiFi 2.4&5GHz PCB antennas, 4G/LTE PCB antennas, 5G NR/3.5G CBRS PCB antennas, and GNSS/GPS PCB antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Cost-effectiveness
Space-saving
Consistency
Durability
etc.
The high-performance 2.4 GHz PCB antennas are used in various applications, including Wi-Fi and Bluetooth devices, and typically operate within the 2.4 GHz to 2.4835 GHz range.
Wi-Fi (IEEE 802.11b/g/n): One of the most widespread uses of the 2.4GHz spectrum is Wi-Fi. Numerous devices, such as smartphones, laptops, and routers, utilize 2.4 GHz PCB antennas for stable and far-reaching connections.
2.4 GHz ISM Band
IEEE 802.11b, 802.11g Wireless LAN & IEEE 802.11n (Pre-N, Draft-N) Applications
Public Wireless Hotspot
Wireless Video Systems
Multipoint and Mobile Applications & Bluetooth®
etc.

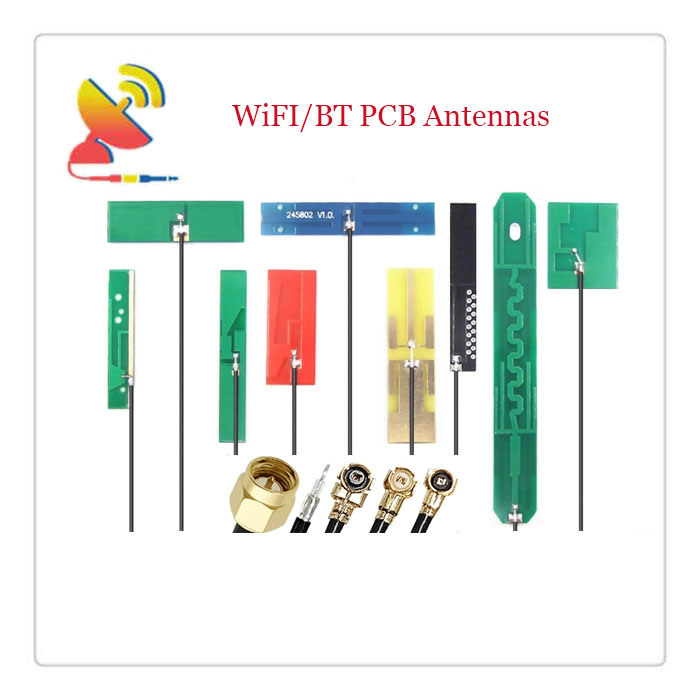

C&T RF Antennas Inc. provides high-performance 2.4 GHz WiFi PCB antennas. Below are some of the styles of 2.4 GHz WiFi PCB antennas.
Item: CTRF-ANTENNA-PCB-2450-2411-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ24x11mm

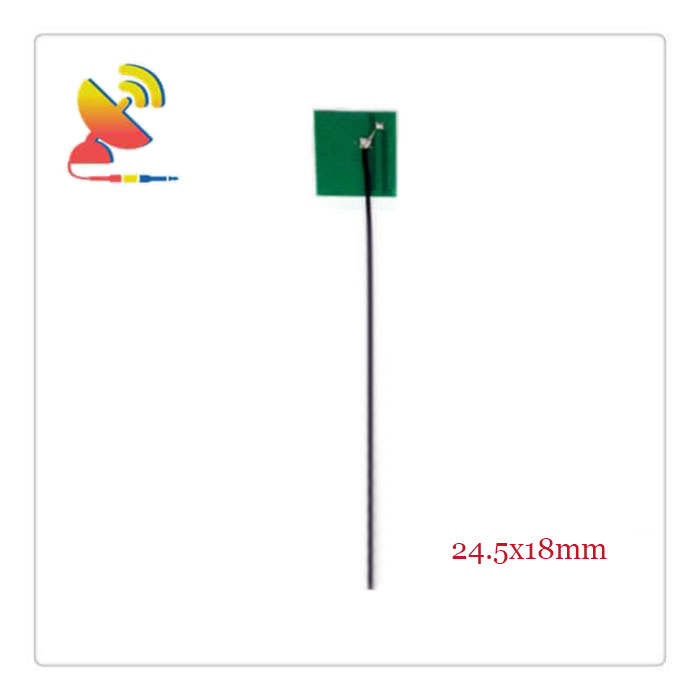

Item: CTRF-ANTENNA-PCB-2450-2418-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ24.5x18mm

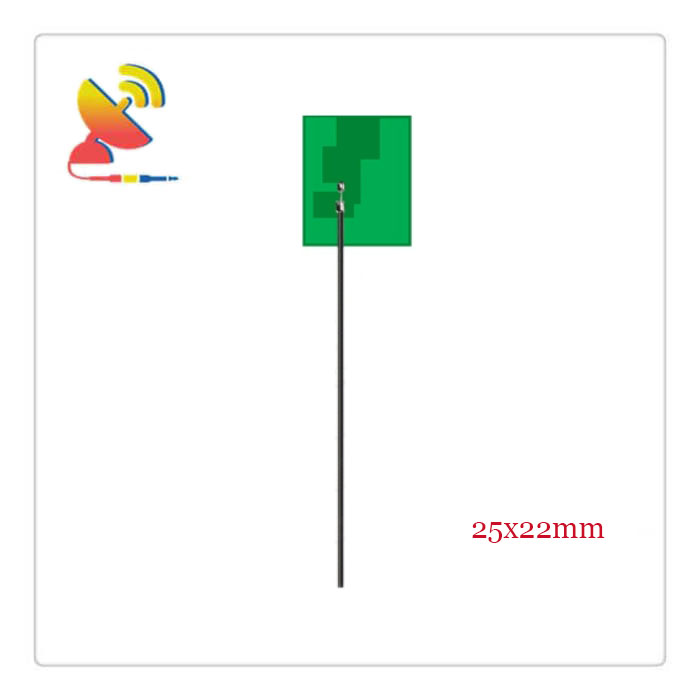

Item: CTRF-ANTENNA-PCB-2450-2522-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ25x22mm

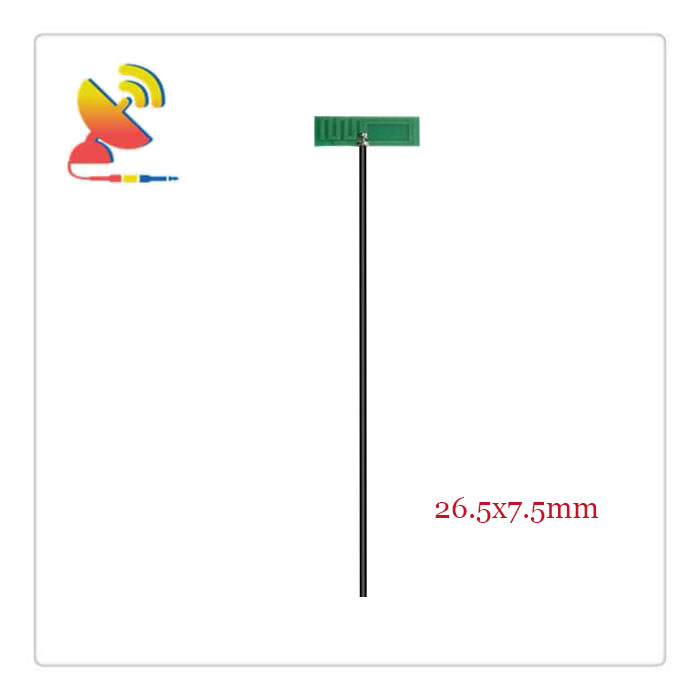

Item: CTRF-ANTENNA-PCB-2450-2706-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ26.5×7.5mm

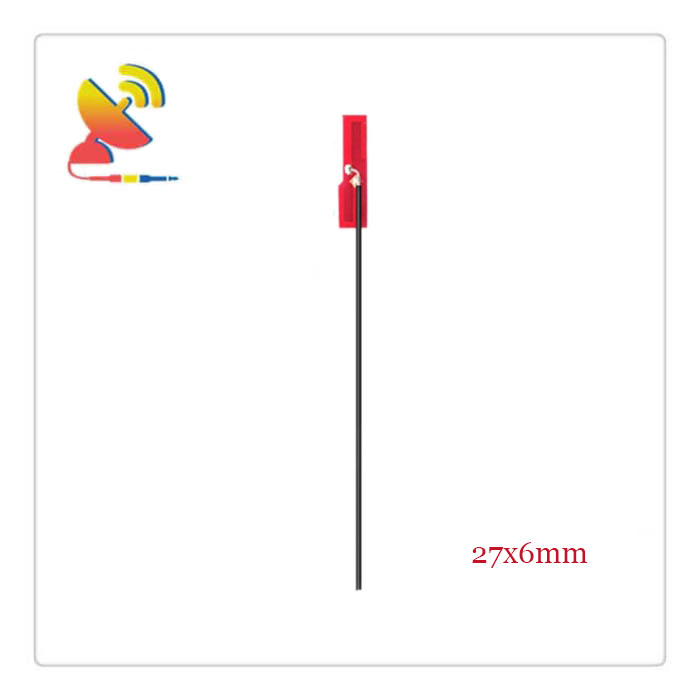

Item: CTRF-ANTENNA-PCB-2450-2706-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 2dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Red
Dimension: Φ27x6mm

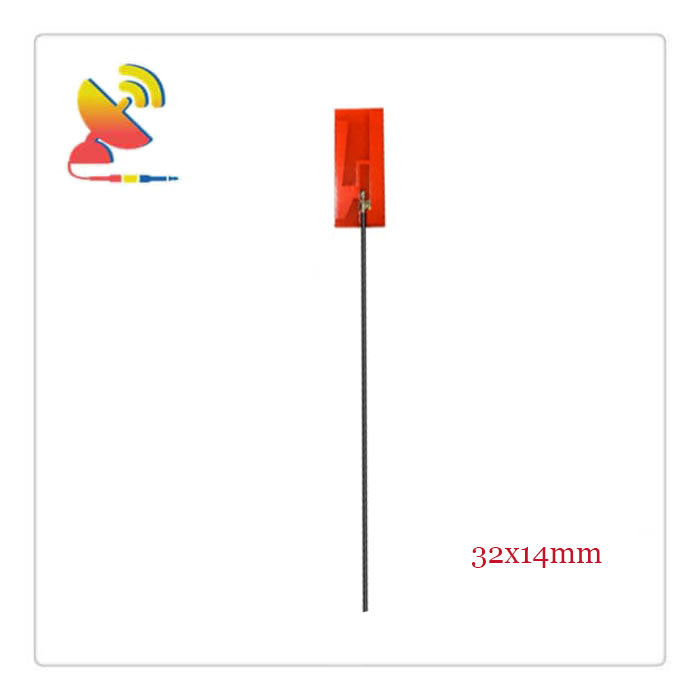

Item: CTRF-ANTENNA-PCB-2450-3214-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Red
Dimension: Φ32x14mm

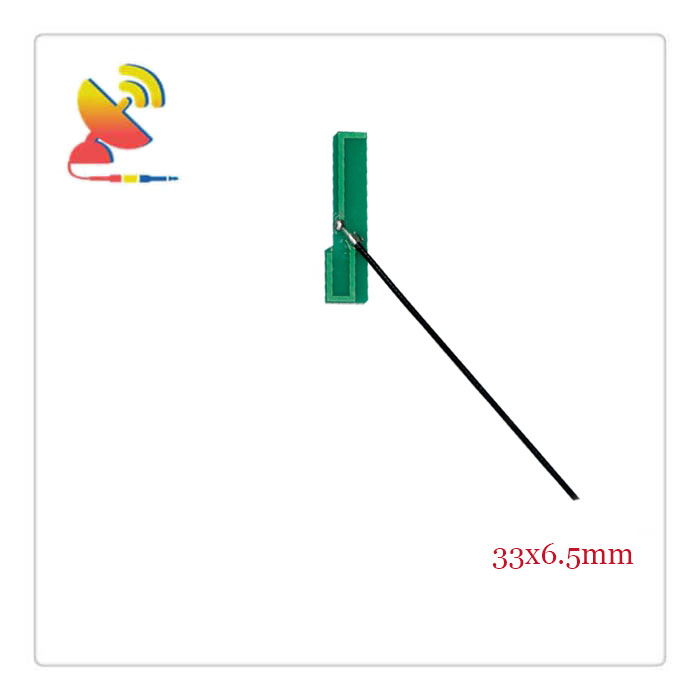

Item: CTRF-ANTENNA-PCB-2450-3306-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ33×6.5mm

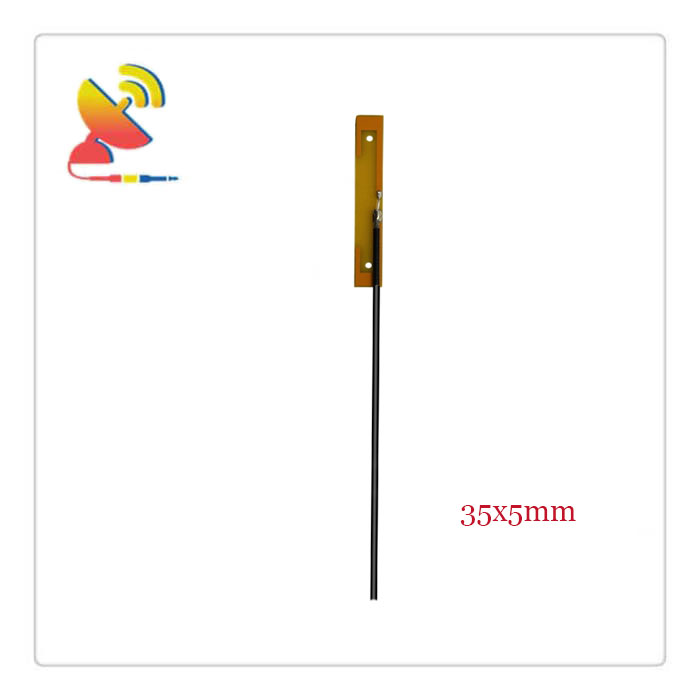

Item: CTRF-ANTENNA-PCB-2450-3505-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Brown
Dimension: Φ35x5mm

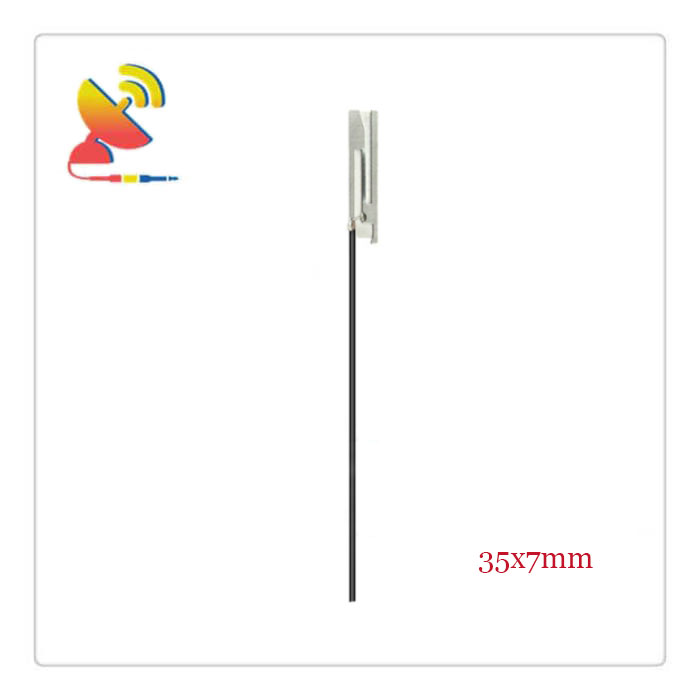

Item: CTRF-ANTENNA-MT-2450-3507-IPEX
Specifications:
Material: Metal sheet
Frequency: 2400-2500MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Metallic
Dimension: Φ35x7mm
Item: CTRF-ANTENNA-PCB-2450-3507-IPEX
Specifications:
Material: Metal sheet
Frequency: 2400-2500MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Metallic
Dimension: Φ35x7mm

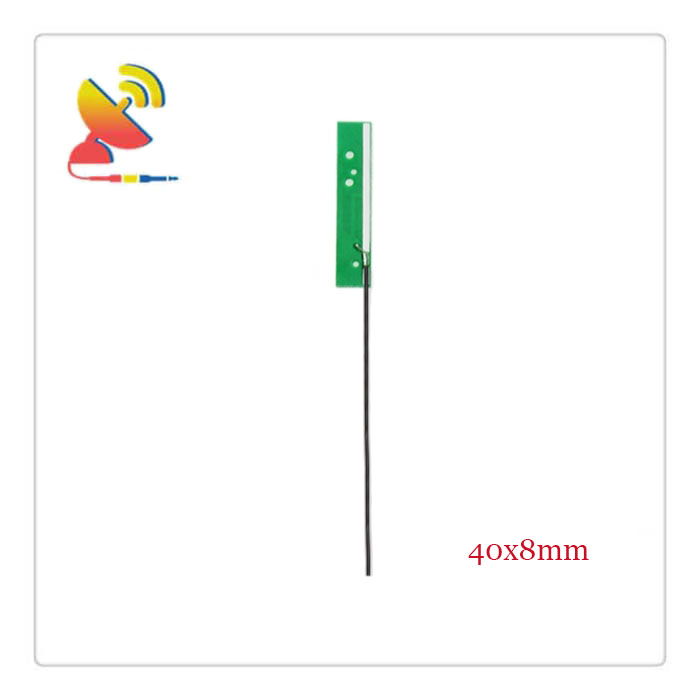

Item: CTRF-ANTENNA-PCB-2450-4008-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ40x8mm

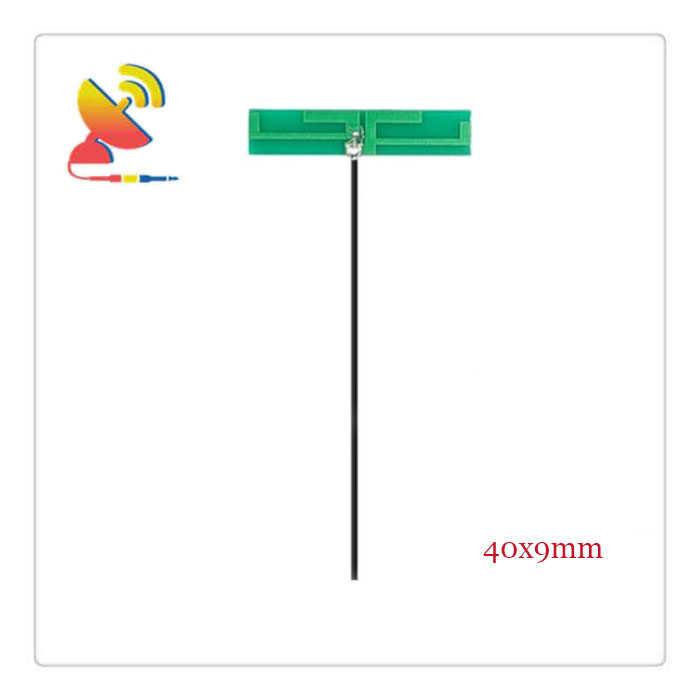

Item: CTRF-ANTENNA-PCB-2450-4009-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ40x9mm
Item: CTRF-ANTENNA-PCB-2450-4112-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ41.5x5mm
Item: CTRF-ANTENNA-PCB-2450-4212-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ42x5mm

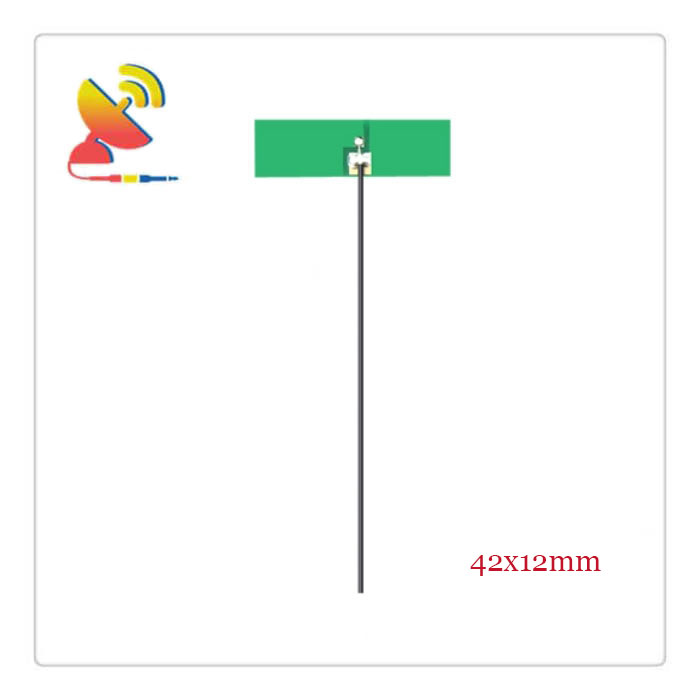

Item: CTRF-ANTENNA-PCB-2450-4212-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ42x12mm
Item: CTRF-ANTENNA-PCB-2450-4707-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ47.5×7.5mm
Item: CTRF-ANTENNA-PCB-2450-4708-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ47×7.7mm

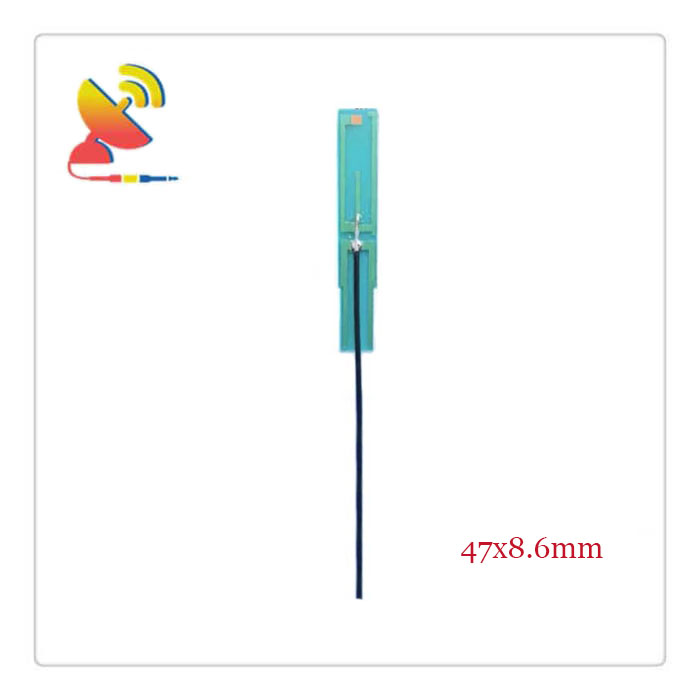

Item: CTRF-ANTENNA-PCB-2450-4709-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ47×8.6mm

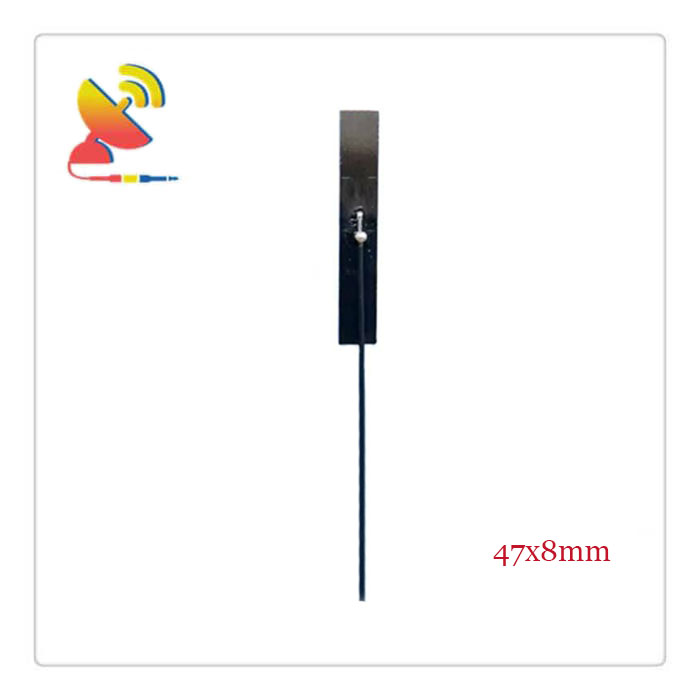

Item: CTRF-ANTENNA-PCB-2450-4708-UFL
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ47x8mm

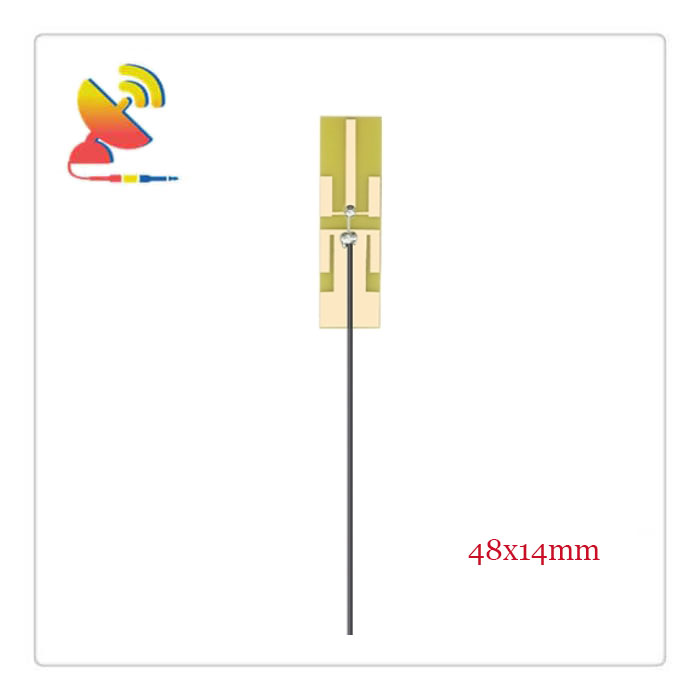

Item: CTRF-ANTENNA-PCB-2450-4814-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Brown
Dimension: Φ48x14mm

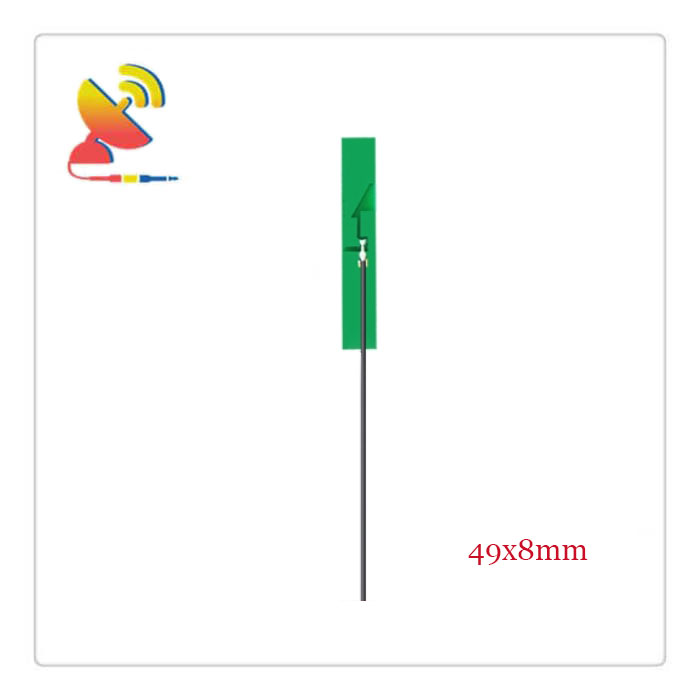

Item: CTRF-ANTENNA-PCB-2450-4908-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ49x8mm

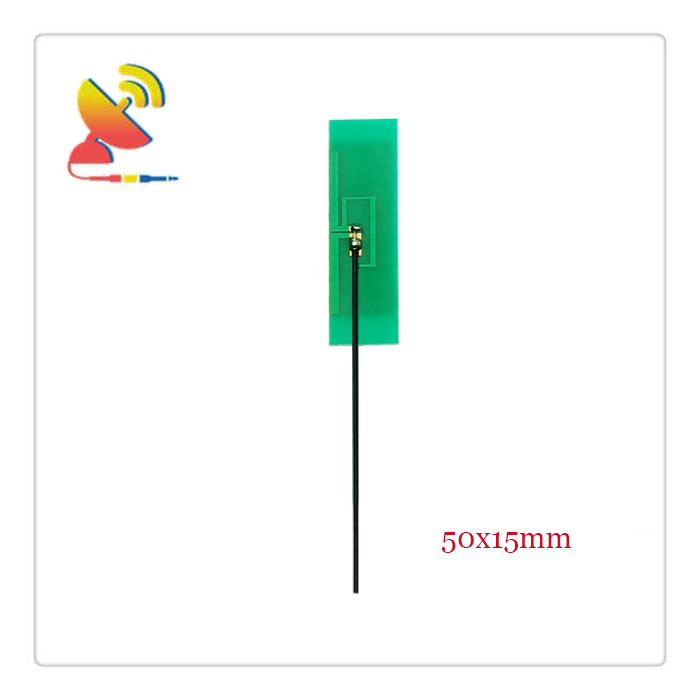

Item: CTRF-ANTENNA-PCB-2450-5015-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ50x15mm

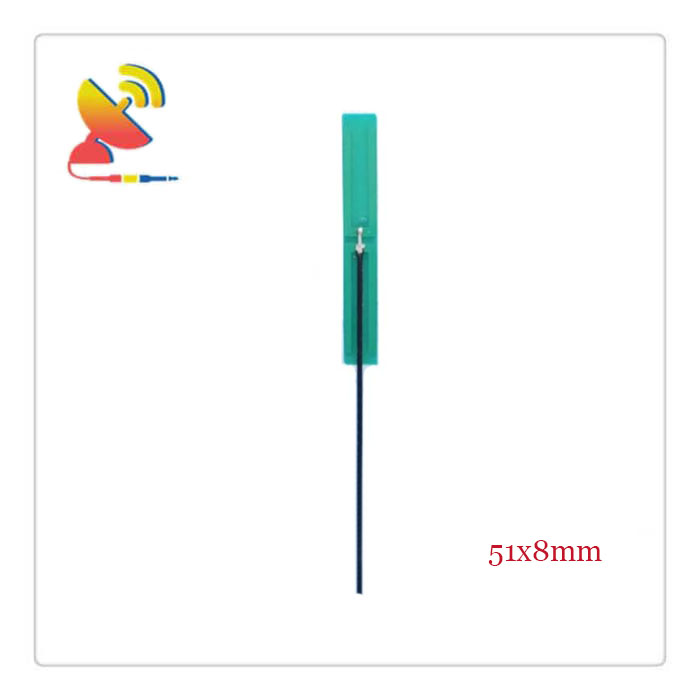

Item: CTRF-ANTENNA-PCB-2450-5108-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ51x8mm

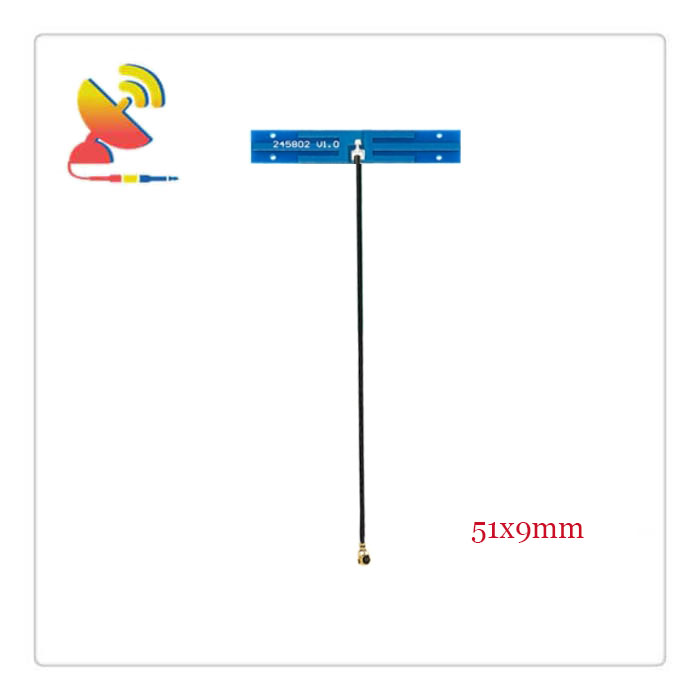

Item: CTRF-ANTENNA-PCB-2450-5109-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Linear
Connector: IPEX/u.FL/MHF
Color: Blue
Dimension: Φ51x9mm

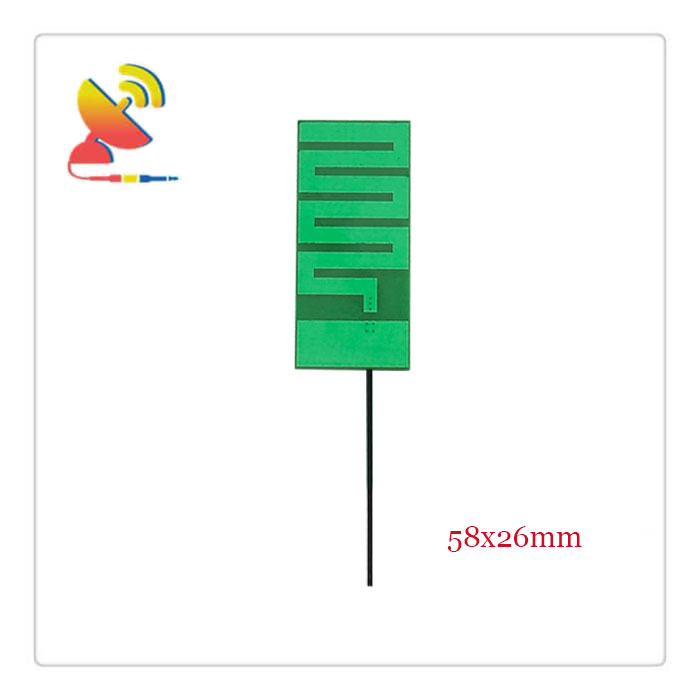

Item: CTRF-ANTENNA-PCB-2450-5826-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ58x26mm
Item: CTRF-ANTENNA-PCB-2450-7205-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ72x5mm

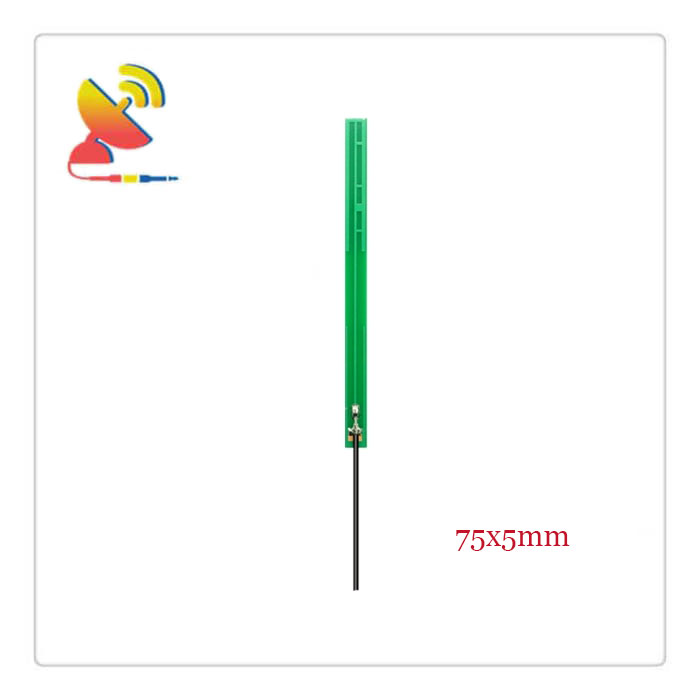

Item: CTRF-ANTENNA-PCB-2450-7505-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ75x5mm

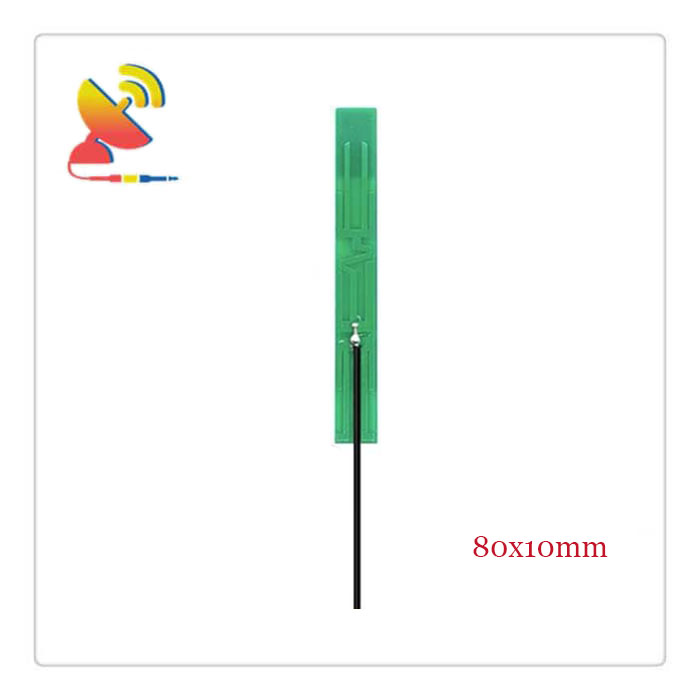

Item: CTRF-ANTENNA-PCB-2450-8010-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ80x10mm

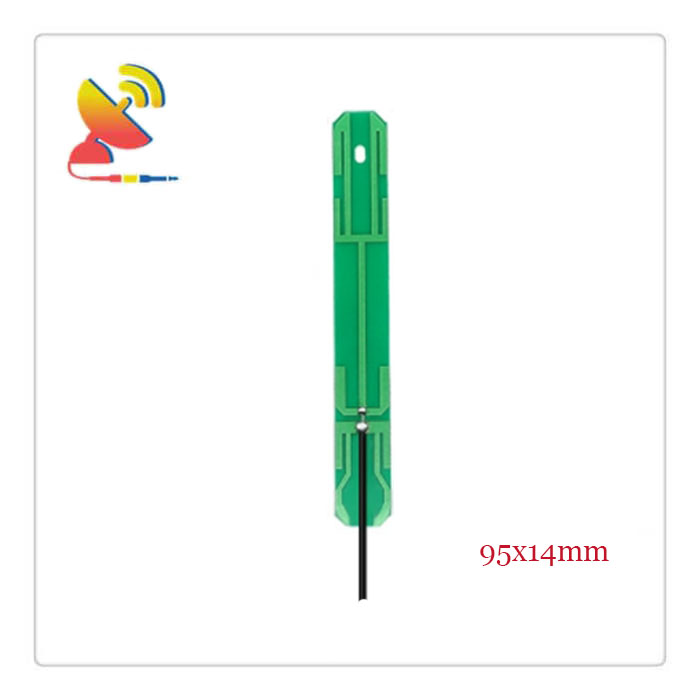

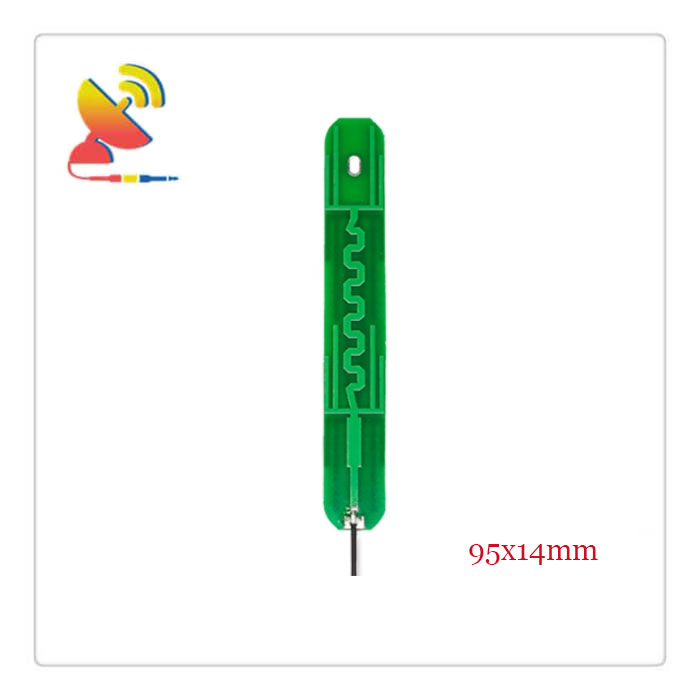

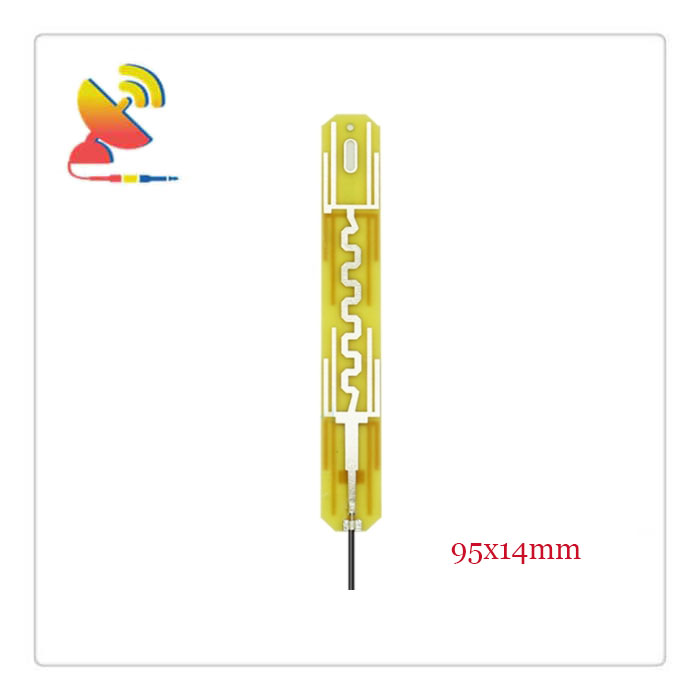

Item: CTRF-ANTENNA-PCB-2450-9514G-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ95x14mm
Item: CTRF-ANTENNA-PCB-2450-9514Y-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Yellow
Dimension: Φ95x14mm
Item: CTRF-ANTENNA-PCB-2450-9514G-UFL
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Green
Dimension: Φ95x14mm

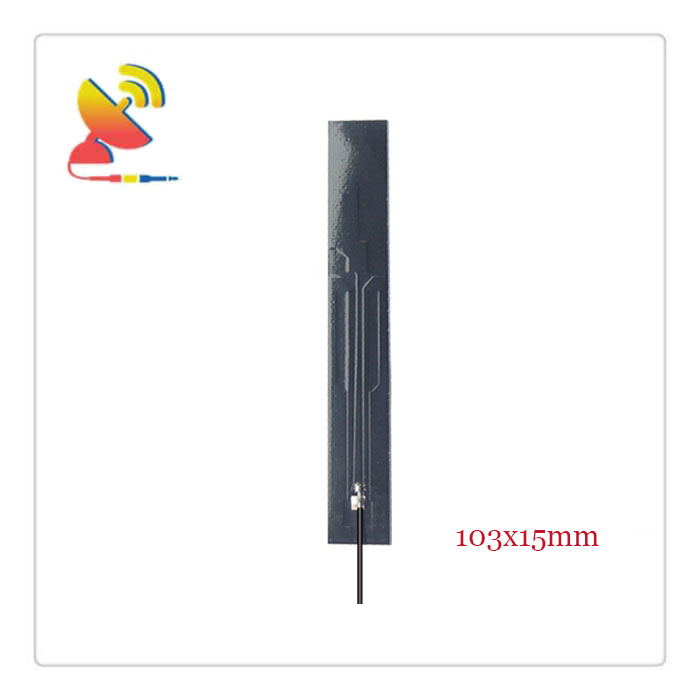

Item: CTRF-ANTENNA-PCB-2450-10315-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Black
Dimension: Φ103x15mm

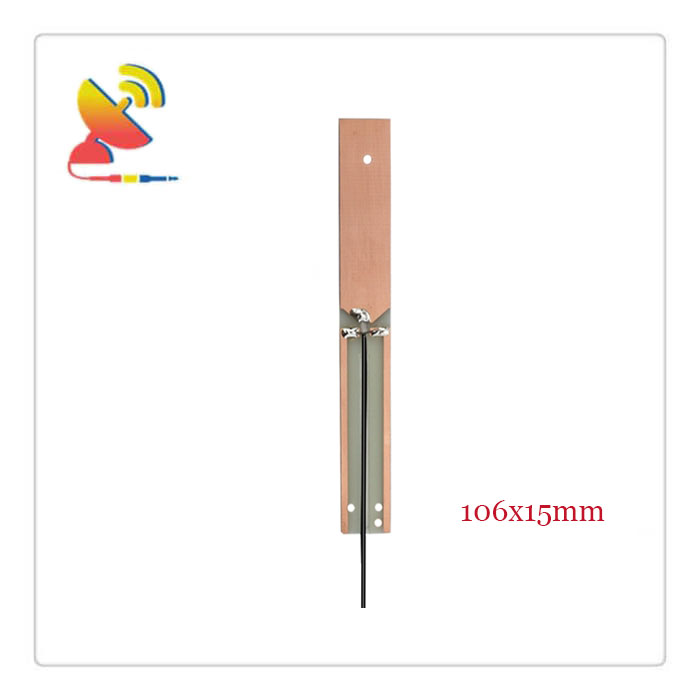

Item: CTRF-ANTENNA-PCB-2450-10615-IPEX
Specifications:
Material: Rigid printed circuit board
Frequency: 2400-2500MHz
Gain: 8dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF
Color: Brown
Dimension: Φ106x15mm

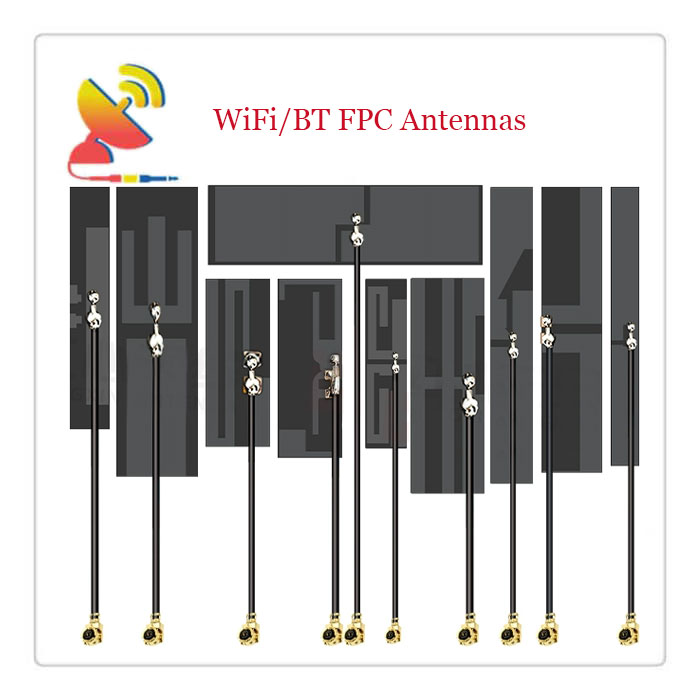

Besides the PCB antennas, C&T RF Antennas Inc. also offers 2.4 GHz WiFi Bluetooth antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, helical antennas, etc. Contact us for more specs you need.
