C&T RF Antennas Inc. manufactures a series of 1.8 GHz rubber duck antennas. The Omnidirectional rubber duck antennas with 1710-1880 MHz terminal antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the high-performance 1.8 GHz portable antennas such as the 1.8 GHz antenna datasheet, antenna pricing, and antenna inventory.
Or other indoor-outdoor 1.8 GHz antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 1.8 GHz portable antennas are external Omni rubber duck antennas manufactured by C&T RF Antennas Inc. with spectrum licenses operating in
1800 MHz (1710-1785 MHz and 1805-1880 MHz) 1.8 GHz band applications such as LTE, and GSM wireless networks.
The high-performance 1.8 GHz rubber duck portable antennas come with SMA male, RP-SMA male, N-type male, BNC male, and TNC male connectors for choice.
Besides the high-performance 1.8 GHz SMA antennas, we also provide 433MHz SMA antennas, single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/UMTS/LTE/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, 2.4GHz, 5GHz single-band and dual-band 2.4/5GHz WiFi SMA antennas, SMA GPS antennas, 169MHz/230MHz/315MHz SMA antennas, 1.2G/1.4G SMA antennas
Rubber duck antennas with N-type connectors, such as 4G 5G N-type antennas, 3.5GHz CBRS N-type antennas, N-male 2.4 GHz & 5GHz antennas. Rubber duck antennas with IPEX/u.FL/MHF connectors such as IPEX 2.4GHz WiFi antennas, 2.4/5GHz dual-band IPEX antennas, and Omni IPEX.GSM NB-IoT 4G 5G antennas. for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Portable
Swivel
Omnidirectional
External
Easy installation
RoHS compliant
etc.
The 1.8 GHz public frequency band TD-LTE wireless private network communication technology research can be better for distribution network automation, power centralized copying, unattended visual management, emergency communication, mobile inspection, and office business deepening applications.
The 1.8 GHz dedicated network band refers to the wireless communication band with the operating frequency of 1785~1805 MHz, which is mainly used for the construction of wireless broadband digital trunking dedicated network. This frequency band has the characteristics of specialty, reliability, and security, and is widely used in government affairs, transportation, electric power, petroleum, and other industries to provide efficient and safe solutions for data transmission and communication.
C&T RF Antennas Inc. provides high-performance 1.8 GHz rubber duck portable antennas. Below are some of the 1.8 GHz antennas.
Item: CTRF-ANTENNA-AP-1718-13136-SMA
Specifications:
Material: Plastic ABS
Frequency range: 1710-1880 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x136mm

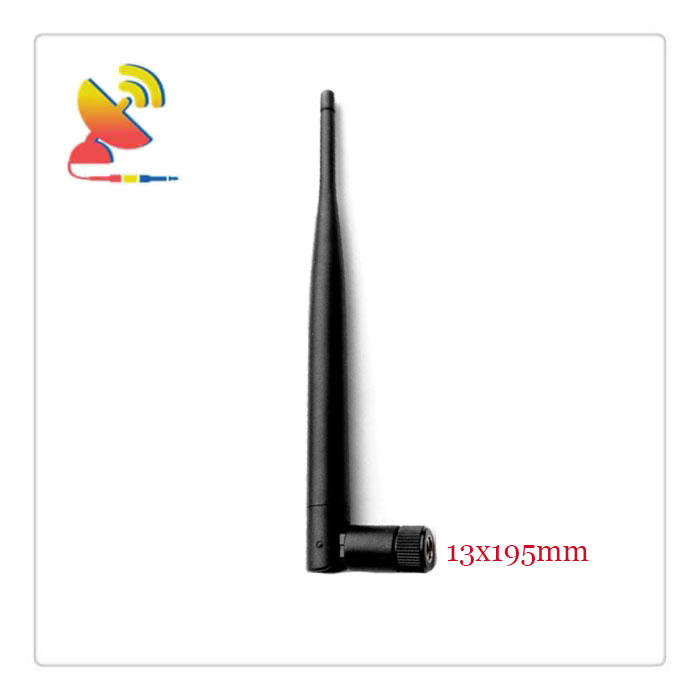

Item: CTRF-ANTENNA-AP-1718-13195B-SMA
Specifications:
Material: Plastic ABS
Frequency range: 1710-1990 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male
Color: Black
Dimension: Φ13x195mm
Item: CTRF-ANTENNA-AP-1718-13240-SMA-B
Specifications:
Material: Plastic ABS
Frequency range: 1710-1880 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Black Color Connector
Color: Black
Dimension: Φ13x240mm
Item: CTRF-ANTENNA-AP-1718-13240-SMA-N
Specifications:
Material: Plastic ABS
Frequency range: 1710-1880 MHz
Gain: 5dB
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Nickel Color Connector
Color: Black
Dimension: Φ13x240mm

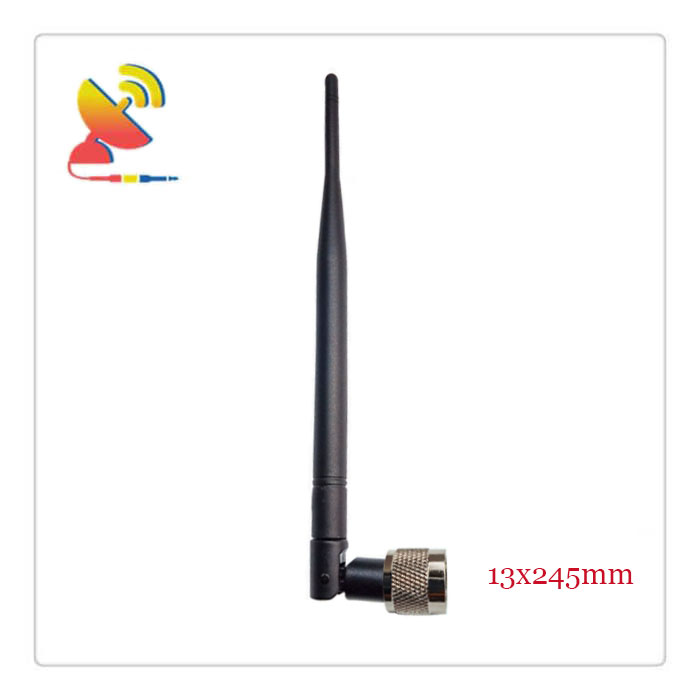

Item: CTRF-ANTENNA-AP-1718-13245-NM
Specifications:
Material: Plastic ABS
Frequency range: 1710-1880 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: BNC Male
Color: Black
Dimension: Φ13x245mm

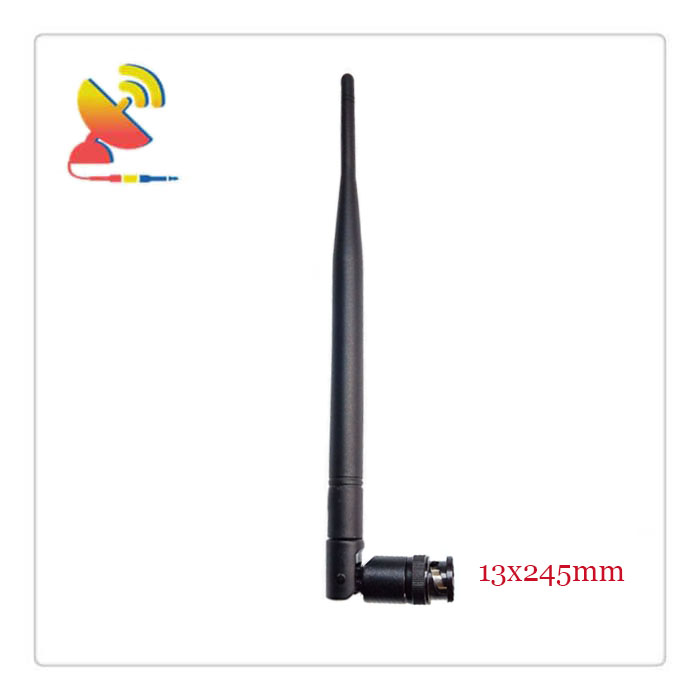

Item: CTRF-ANTENNA-AP-1718-13245-BNC-B
Specifications:
Material: Plastic ABS
Frequency range: 1710-1880 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: BNC Black Color
Color: Black
Dimension: Φ13x245mm
Item: CTRF-ANTENNA-AP-1718-13245-BNC-N
Specifications:
Material: Plastic ABS
Frequency range: 1710-1880 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: BNC Nickel Color Connector
Color: Black
Dimension: Φ13x245mm

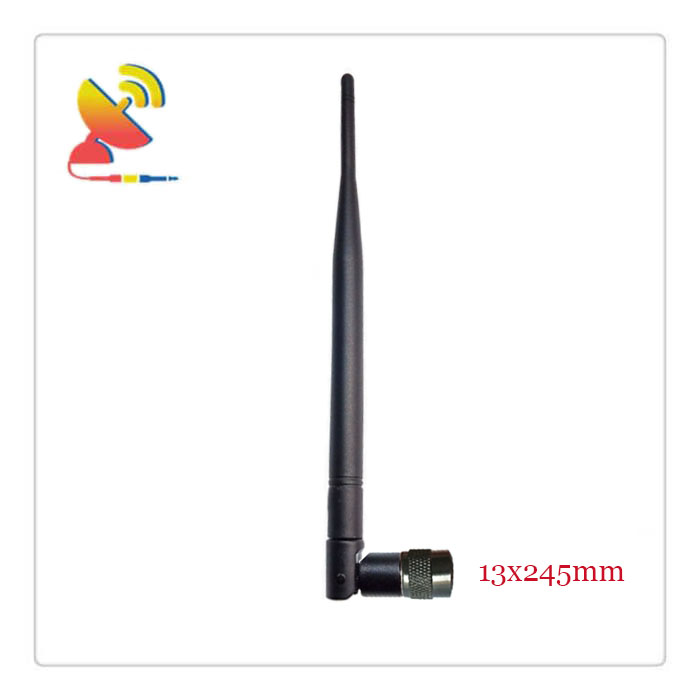

Item: CTRF-ANTENNA-AP-1718-13245-TNC-B
Specifications:
Material: Plastic ABS
Frequency range: 1710-1880 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: TNC Black Color Connector
Color: Black
Dimension: Φ13x245mm

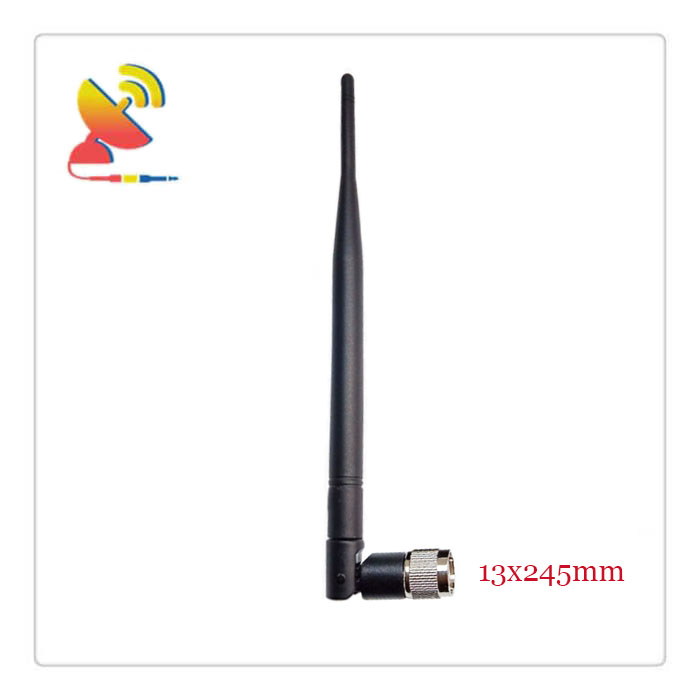

Item: CTRF-ANTENNA-AP-1718-13245-TNC-N
Specifications:
Material: Plastic ABS
Frequency range: 1710-1880 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: TNC Nickel Color Connector
Color: Black
Dimension: Φ13x245mm
Besides the rubber duck antennas, C&T RF Antennas Inc. also offers 1.8G antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, through-hole screw mount puck antennas, and FPV antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
