C&T RF Antennas Inc. manufactures a series of low-profile dual 4G+GPS+WiFi 4×4 MIMO antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more information on our low-profile 4G+4G+GPS+WiFi 4×4 MIMO antennas, including the 2x 4G+WiFi/BT+GPS 4-in1 antenna datasheet, pricing, and availability of the combination screw mount vehicle antenna.
Or other 2×2, 3×3, 4×4, 5×5 MIMO antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The low-profile dual 4G+GPS+WiFi 4×4 MIMO antennas are external omnidirectional antennas that combine 2x cellular LTE 4G, WiFi/BT, and GPS, manufactured by C&T RF Antennas Inc. The 4G/LTE bands cover 698-960 MHz and 1710-2700 MHz, WiFi/BT bands cover 2400-2483.5 MHz, and the GPS/BD bands cover 1561 MHz and 1575.42 MHz.
The low-profile dual 4G+GPS+WiFi 4×4 MIMO antennas combine 2 LTE + 1 WiFi/BT + 1 GPS/BD antennas into a single enclosure. And a low-profile, heavy-duty, multi-element design for use in fleet management, mobile video, and remote monitoring applications that cost-effectively combines high efficiency and peak gain in a compact, easy-to-install form factor.
Besides the low-profile Dual 4G+GPS+WiFi 4×4 MIMO Antennas, the 3×3 MIMO LTE 4G/5G/GPS Antennas, 2×2 MIMO LTE 4G+GPS Antennas, 4G/GPS 2×2 MIMO Antennas, 4G/WiFi Antenna MIMO 2×2, 2×2 MIMO WiFi/GPS Antennas, 2×2 MIMO 4G LTE Antennas, 2×2 MIMO 5G antennas, 2×2 MIMO WiFi Antennas, 3×3 NR 5G MIMO Antennas, 3×3 4G LTE MIMO Antennas, 3×3 MIMO WiFi Antennas, 4×4 LTE MIMO Antennas, 4×4 MIMO Antenna 5G NR, 4×4 MIMO WiFi Antennas, and 5×5 MIMO 5G antennas are available at C&T RF Antennas Inc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
2 x LTE / 4G (main and backup )
1 x GPS/BD
1 x 2400~2483.5MHz- WiFi and/or Bluetooth
4-in-1 combination antennas
4×4 MIMO antennas
For indoor-outdoor IoT & M2M applications
etc.
The low-profile dual 4G+GPS+WiFi 4×4 MIMO antennas are outdoor waterproof Omni antennas for use in Internet-of-Things and Machine-to-Machine wireless network applications.
C&T RF Antennas Inc. provides low-profile dual 4G+GPS+WiFi 4×4 MIMO antennas. Below are some of them.

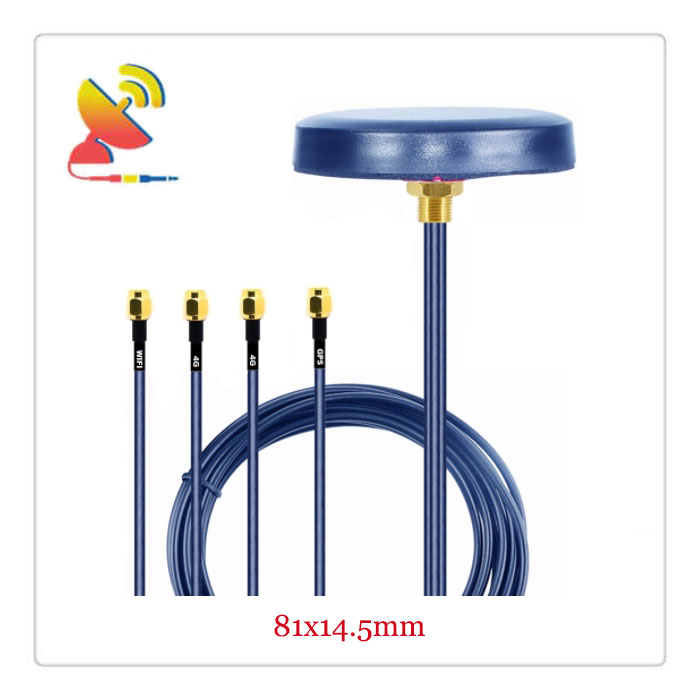

Item: CTRF-ANTENNA-EX-15-24-27X2-8114-SMA
Specifications:
Material: Plastic ABS
4G LTE: 698-960 MHz, 1710-2700 MHz
WiFi: 2400-2483.5 MHz
GPS/BD: 1561MHz/1575.42MHz
4G Gain: 7dBi
WiFi Gain: 7dBi
GPS/BD Gain: 28dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw-mount/Through-hole
Item: CTRF-ANTENNA-EX-15-BT-27X2-8114-SMA
Specifications:
Material: Plastic ABS
4G LTE: 698-960 MHz, 1710-2700 MHz
BT: 2400-2483.5 MHz
GPS/BD: 1561MHz/1575.42MHz
4G Gain: 7dBi
BT Gain: 7dBi
GPS/BD Gain: 28dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw-mount/Through-hole

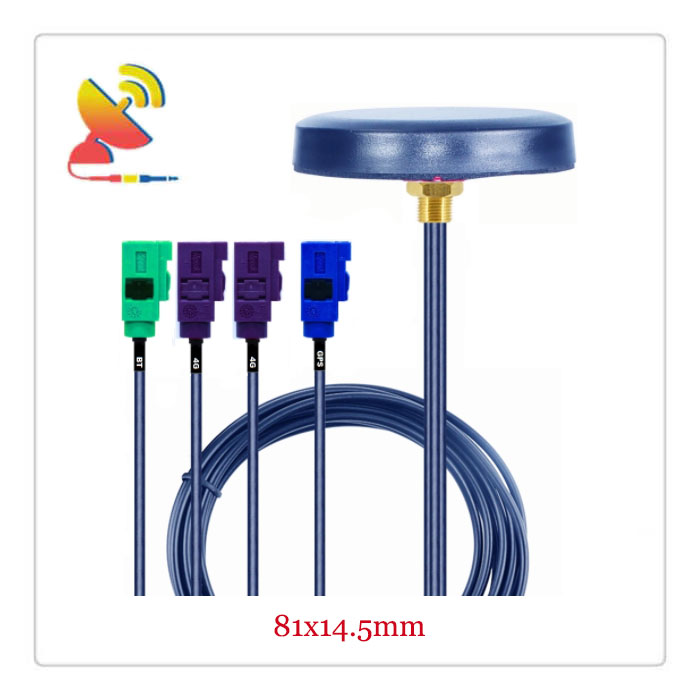

Item: CTRF-ANTENNA-EX-15-BT-27X2-8114-FKA
Specifications:
Material: Plastic ABS
4G LTE: 698-960 MHz, 1710-2700 MHz
BT: 2400-2483.5 MHz
GPS/BD: 1561MHz/1575.42MHz
4G Gain: 7dBi
WiFi Gain: 7dBi
GPS/BD Gain: 28dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Fakra x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw-mount/Through-hole
Item: CTRF-ANTENNA-EX-15-BT-27X2-8114S-FKA
Specifications:
Material: Plastic ABS
4G LTE: 698-960 MHz, 1710-2700 MHz
BT: 2400-2483.5 MHz
GPS/BD: 1561MHz/1575.42MHz
4G Gain: 7dBi
BT Gain: 7dBi
GPS/BD Gain: 28dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Fakra x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw-mount/Through-hole
Item: CTRF-ANTENNA-EX-15-24-27X2-8114S-SMA
Specifications:
Material: Plastic ABS
4G LTE: 698-960 MHz, 1710-2700 MHz
WiFi: 2400-2483.5 MHz
GPS/BD: 1561MHz/1575.42MHz
4G Gain: 7dBi
WiFi Gain: 7dBi
GPS/BD Gain: 28dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/Sticker

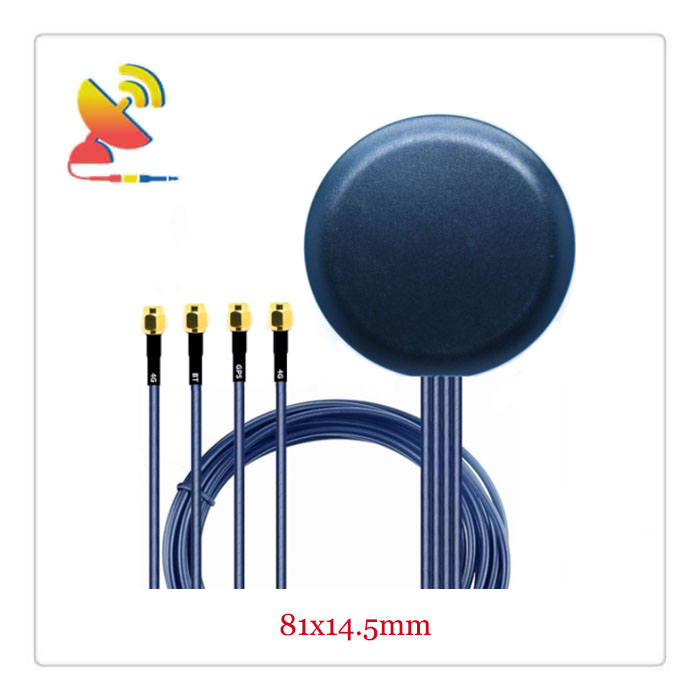

Item: CTRF-ANTENNA-EX-15-BT-27X2-8114S-SMA
Specifications:
Material: Plastic ABS
4G LTE: 698-960 MHz, 1710-2700 MHz
BT: 2400-2483.5 MHz
GPS/BD: 1561MHz/1575.42MHz
4G Gain: 7dBi
BT Gain: 7dBi
GPS/BD Gain: 28dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA Male x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/Sticker

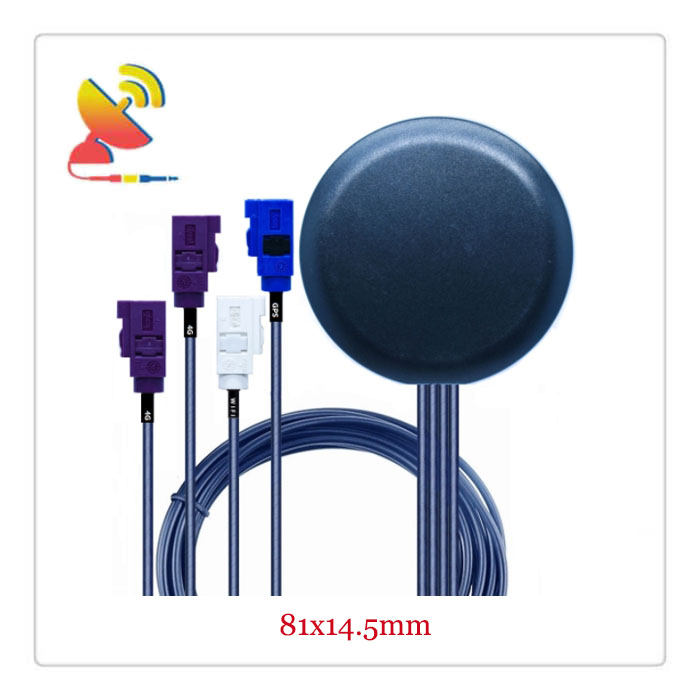

Item: CTRF-ANTENNA-EX-15-24-27X2-8114S-FKA
Specifications:
Material: Plastic ABS
4G LTE: 698-960 MHz, 1710-2700 MHz
WiFi: 2400-2483.5 MHz
GPS/BD: 1561MHz/1575.42MHz
4G Gain: 7dBi
WiFi Gain: 7dBi
GPS/BD Gain: 28dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Fakra x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/Sticker

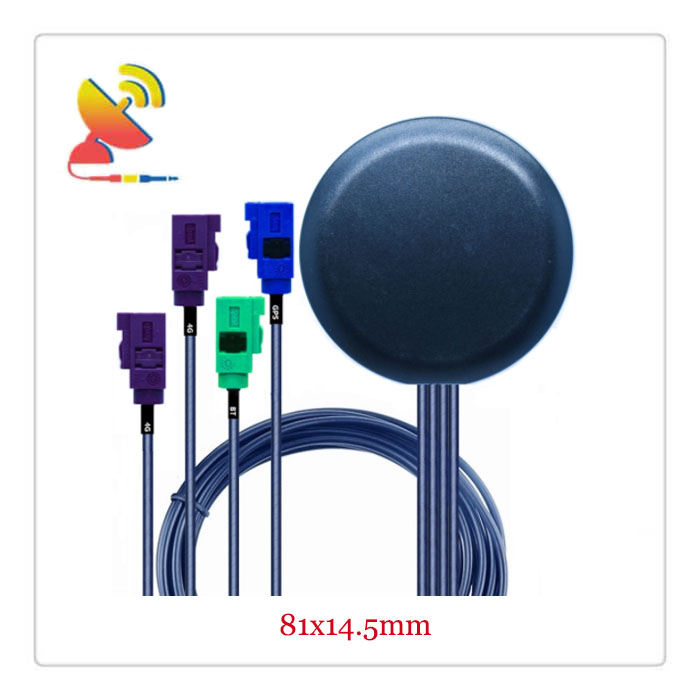

Item: CTRF-ANTENNA-EX-15-BT-27X2-8114S-FKA
Specifications:
Material: Plastic ABS
4G LTE: 698-960 MHz, 1710-2700 MHz
BT: 2400-2483.5 MHz
GPS/BD: 1561MHz/1575.42MHz
4G Gain: 7dBi
BT Gain: 7dBi
GPS/BD Gain: 28dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: Fakra x4
Cable type: RG174 x4
Cable length: 1M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw/Sticker

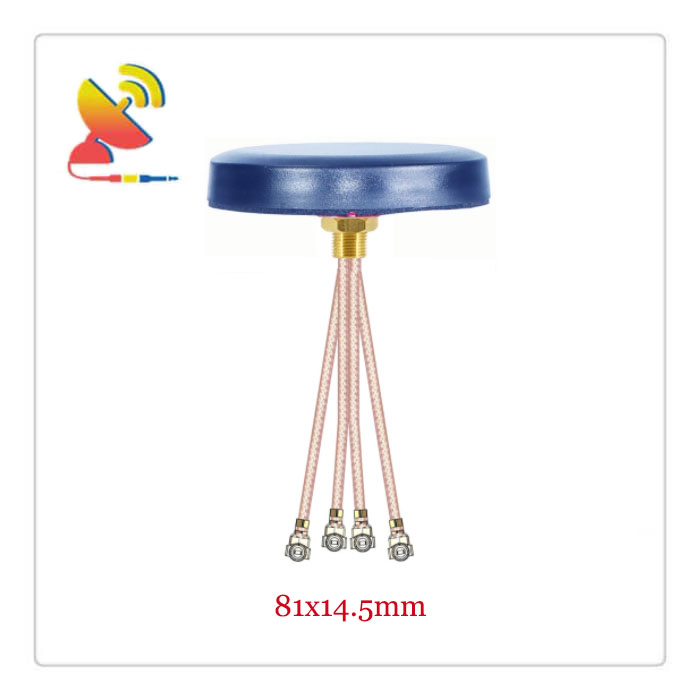

Item: CTRF-ANTENNA-EX-15-24-27X2-8114-IPEX
Specifications:
Material: Plastic ABS
4G LTE: 698-960 MHz, 1710-2700 MHz
WiFi: 2400-2483.5 MHz
GPS/BD: 1561MHz/1575.42MHz
4G Gain: 7dBi
WiFi Gain: 7dBi
GPS/BD Gain: 28dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX/u.FL/MHF-1 x4
Cable type: RG178 x4
Cable length: 0.2M x4
Color: Black
Dimension: Φ81×14.5mm
Mounting: Screw-mount/through-hole
Besides the through-hole screw mount puck antennas 2×2, 3×3, 4×4, and 5×5 MIMO. C&T RF Antennas Inc. also offers cellular GSM 4G LTE antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, adhesive mount antennas, internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
