C&T RF Antennas Inc. manufactures a series of high-performance 860-960MHz UHF RFID LoRa GSM adhesive antennas. The external 860-960MHz UHF, RFID, LoRa, GSM antennas. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on our high-performance 860-960MHz UHF RFID LoRa GSM adhesive antennas, including the 860-960MHz adhesive antenna datasheet, UHF RFID adhesive antenna pricing, and LoRa GSM adhesive antenna inventory.
Or other indoor-outdoor 860-960MHz UHF RFID LoRa GSM antennas styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance 860-960MHz UHF RFID LoRa GSM adhesive antennas are flat blade adhesive mount antennas with an 860-960 MHz radio frequency band external antennas manufactured by C&T RF Antennas Inc. The 860-960MHz adhesive antennas cover UHF, RFID, LoRa, and GSM bands used in M2M and IoT industries.
The high-performance 860-960MHz UHF RFID LoRa GSM adhesive antennas are a type of antenna designed to be easily mounted onto various surfaces using adhesive. This mounting method offers several advantages, making it a popular choice for a wide range of applications, especially those requiring flexibility and discreet installation.
In addition to the 860-960MHz UHF RFID LoRa GSM adhesive antennas, C&T RF Antennas Inc. offers 433MHz adhesive patch antennas, 4G LTE adhesive patch antennas, 5G NR flat patch antennas, Wi-Fi adhesive mount antennas, NB-IoT/Cat-M1 adhesive blade antennas, and GPS/GNSS passive patch antennas. etc.
C&T RF Antennas Inc. offers a wide range of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used in various applications, including cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB. Contact us for more specs you need.
Low-profile housing
Flat blade/dome shape
Wide appreciation for UHF, RFID, LoRa, and GSM

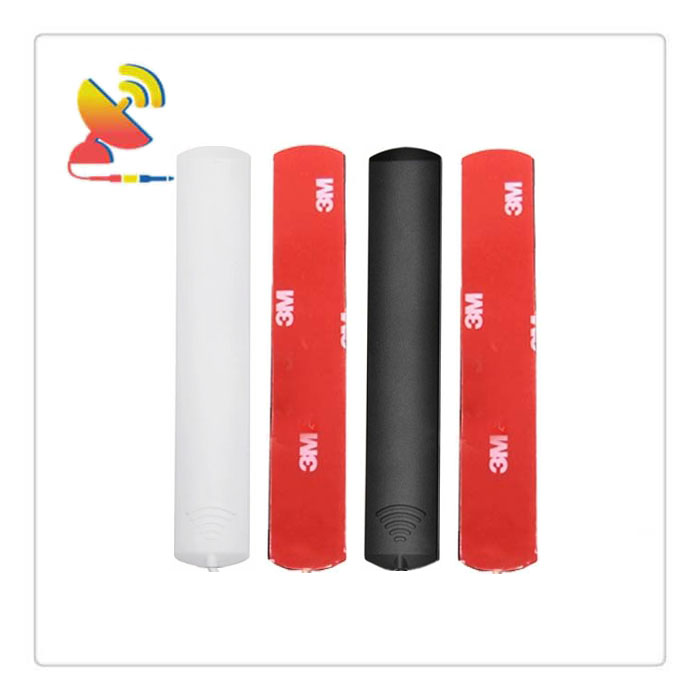

Peel-and-stick adhesive
Easy mount
etc.
The 860-960MHz band is an important part of the ultra-high frequency (UHF) frequency band, which is widely used in scenarios requiring medium- and long-range wireless communication and data interaction due to its characteristics of long reading distance, strong penetration, and moderate anti-jamming ability. The high-performance 860-960MHz UHF RFID LoRa GSM adhesive antennas are used for the following applications.
Typical applications: container identification, railroad car scheduling, warehousing goods inventory.
Typical applications: highway electronic toll collection (ETC), vehicle identification, intelligent parking management.
Typical applications: production line material tracking, equipment status monitoring, AGV (Automated Guided Vehicle) navigation.
Typical applications: anti-counterfeiting of high-end commodities (e.g., luxury goods, pharmaceuticals), positioning of valuable equipment.
etc.
C&T RF Antennas Inc. provides high-performance 860-960MHz UHF RFID LoRa GSM adhesive antennas. Below are some of the 860-960MHz adhesive mount antenna styles.

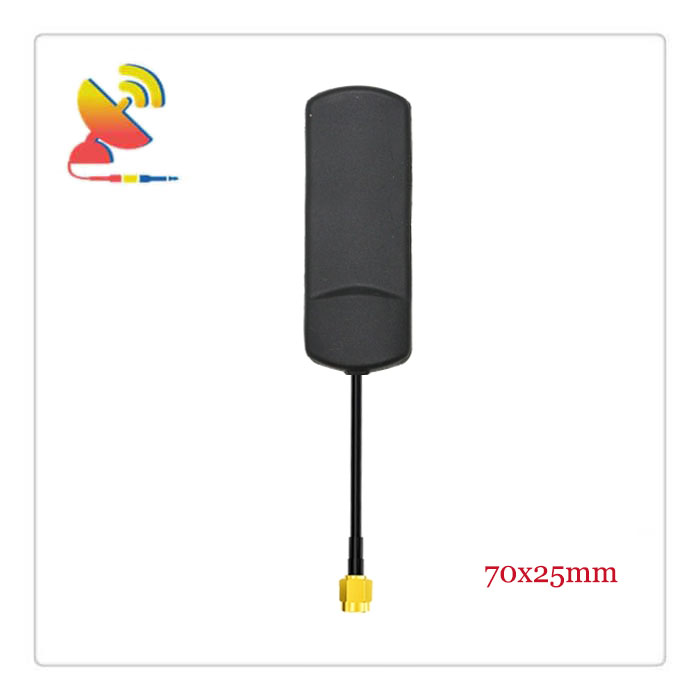

Item: CTRF-ANTENNA-PA-8696-7025-SMA
Specifications:
Material: Plastic ABS
Frequency range: 860-960 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ70x25mm
Mounting: Adhesive

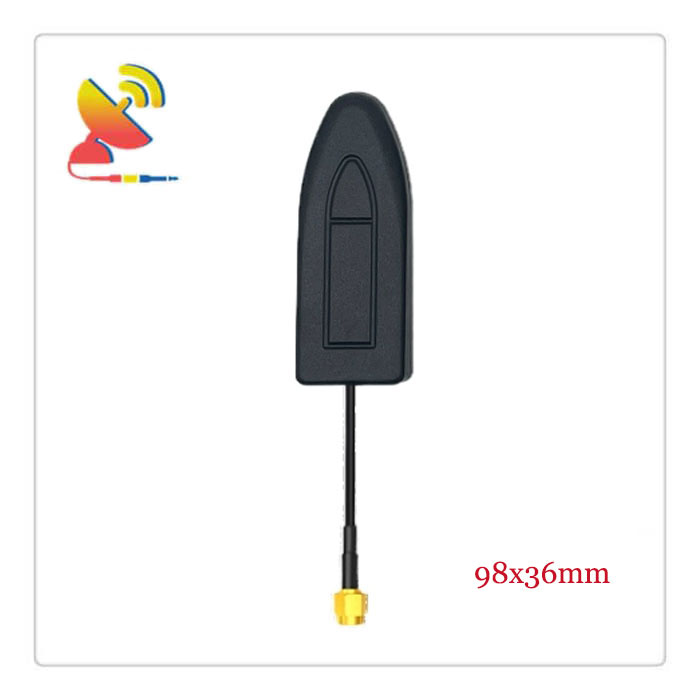

Item: CTRF-ANTENNA-PA-8696-9836-SMA
Specifications:
Material: Plastic ABS
Frequency range: 860-960 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ98x36x18mm
Mounting: Adhesive

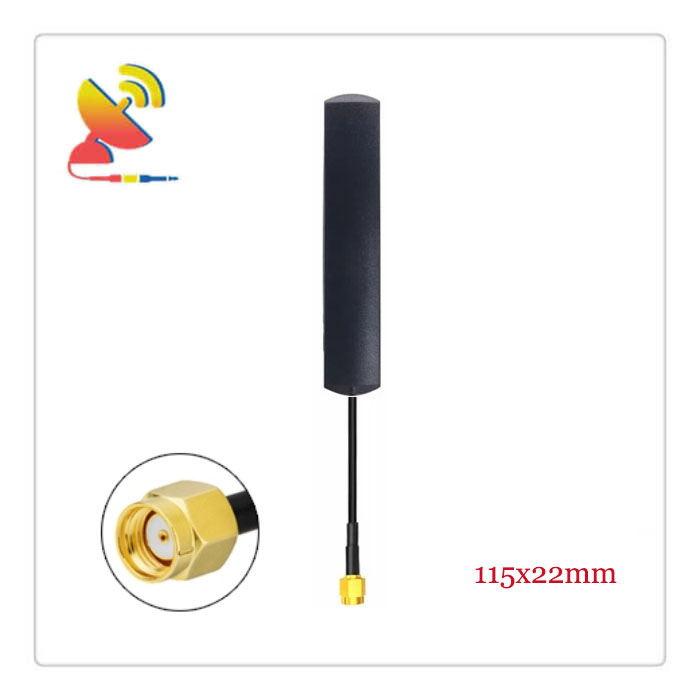

Item: CTRF-ANTENNA-PA-8696-11522-RPSMA
Specifications:
Material: Plastic ABS
Frequency range: 699-960 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: RP-SMA male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ115x22mm
Mounting: Adhesive
Item: CTRF-ANTENNA-PA-8696-11522-SMA
Specifications:
Material: Plastic ABS
Frequency range: 699-960 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ115x22mm
Mounting: Adhesive

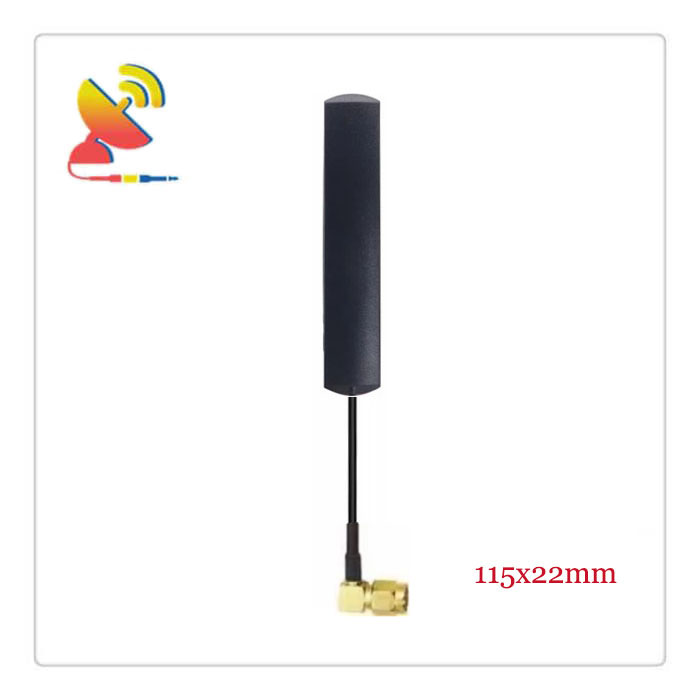

Item: CTRF-ANTENNA-PA-8696-11522-RPSMAW
Specifications:
Material: Plastic ABS
Frequency range: 699-960 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: RP-SMA right-angle plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ115x22mm
Mounting: Adhesive
Item: CTRF-ANTENNA-PA-8696-11522-SMAW
Specifications:
Material: Plastic ABS
Frequency range: 699-960 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA right-angle plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ115x22mm
Mounting: Adhesive

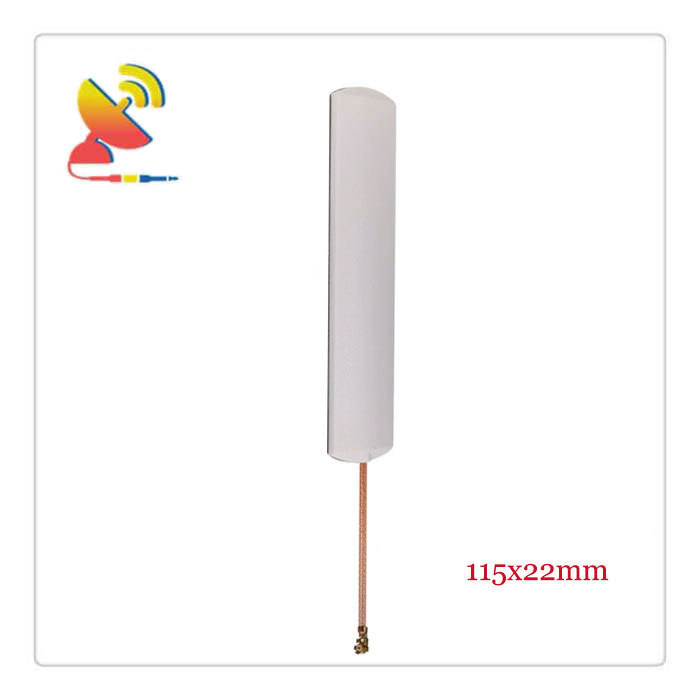

Item: CTRF-ANTENNA-PA-8696-11522W-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 860-960 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX1/u.FL/MHF1
Cable type: RG178
Cable length: 0.15M
Color: White
Dimension: Φ115x22x4.5mm
Mounting: Adhesive

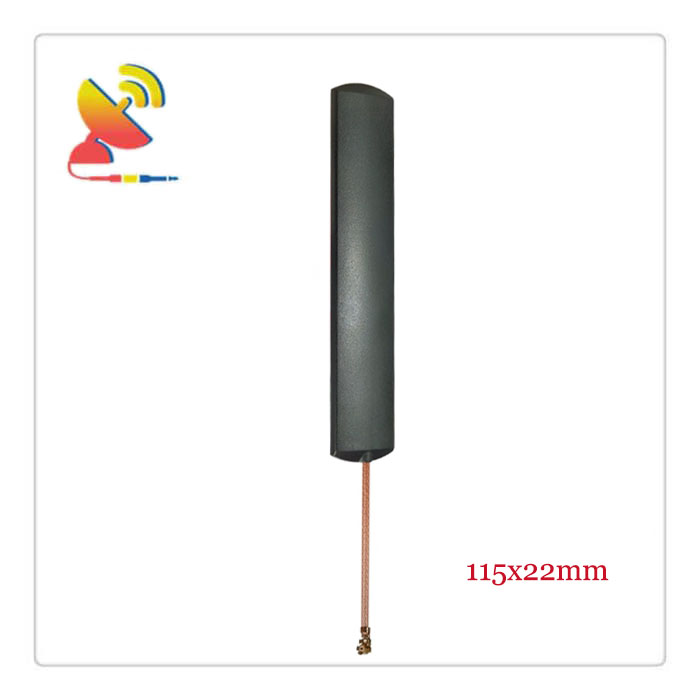

Item: CTRF-ANTENNA-PA-7026-11522-IPEX
Specifications:
Material: Plastic ABS
Frequency range: 860-960 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: IPEX1/u.FL/MHF1
Cable type: RG178
Cable length: 0.15M
Color: Black
Dimension: Φ115x22x4.5mm
Mounting: Adhesive

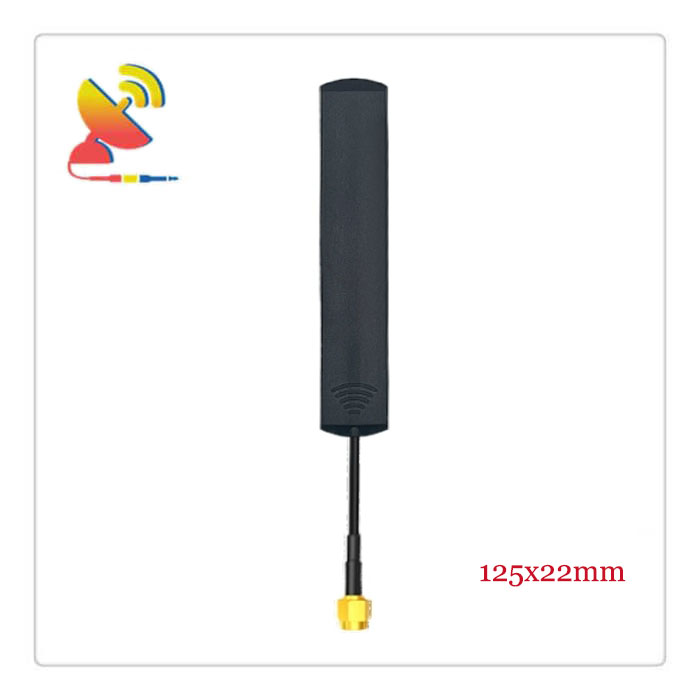

Item: CTRF-ANTENNA-PA-8696-12522-SMA
Specifications:
Material: Plastic ABS
Frequency range: 860-960 MHz
Gain: 3dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ125x22mm
Mounting: Adhesive

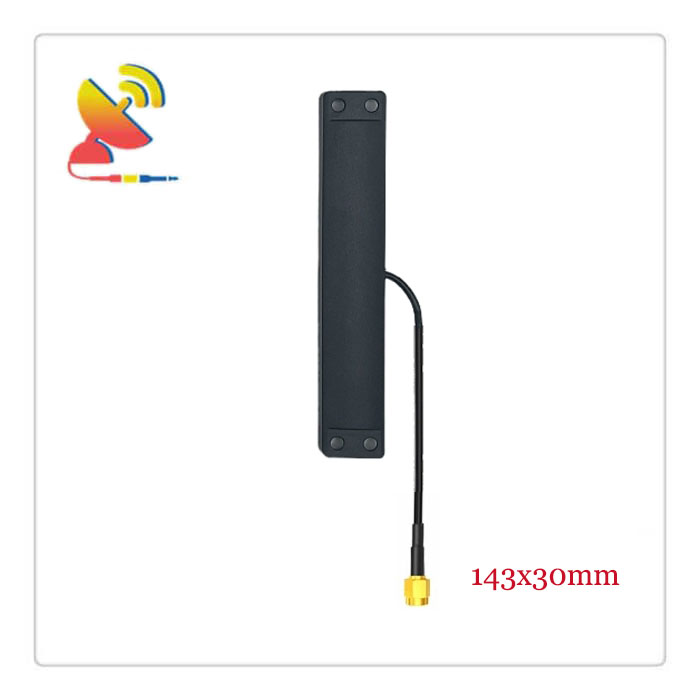

Item: CTRF-ANTENNA-PA-8696-14330-SMA
Specifications:
Material: Plastic ABS
Frequency range: 860-960 MHz
Gain: 4dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ143x30mm
Mounting: Adhesive

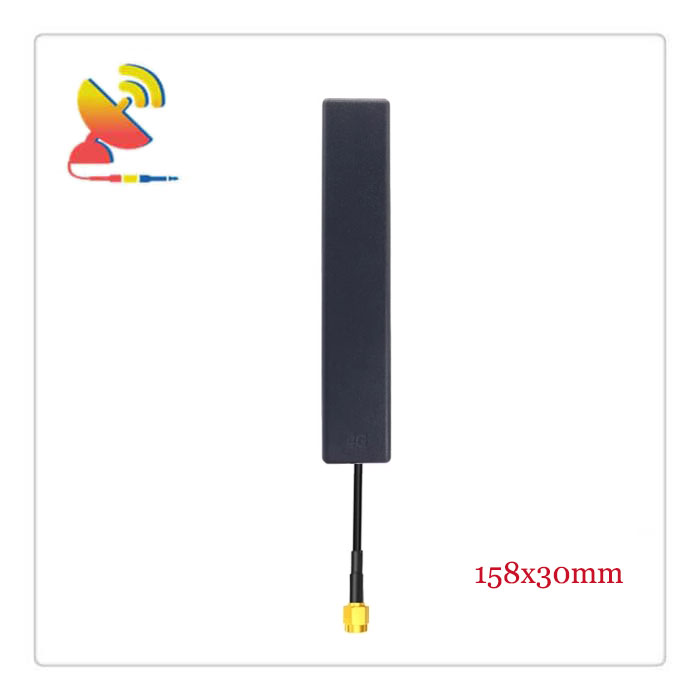

Item: CTRF-ANTENNA-PA-8696-15830-SMA
Specifications:
Material: Plastic ABS
Frequency range: 860-960 MHz
Gain: 5dBi
H-Beam width: 360°
V.S.W.R:≤2.0
Polarization: Vertical
Connector: SMA plug male
Cable type: RG174
Cable length: 1M
Color: Black
Dimension: Φ158x30mm
Mounting: Adhesive
Besides the adhesive mount antennas, C&T RF Antennas Inc. also offers 860-960MHz UHF RFID LoRa GSM antennas in various types, including external rubber duck antennas, adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, through-hole screw mount puck antennas. internal ceramic antennas, flexible PCB antennas, PCB antennas, and helical antennas. etc. Contact us for more specs you need.
