C&T RF Antennas Inc. manufactures a series of 2.4/5 GHz WiFi antenna IPEX rubber duck antennae, which work for dual-band frequency 2.4/5.8/5 GHz applications. Please scroll to the bottom of this page for more product-style information.
Contact us for more details on the 2.4/5 GHz dual-band WiFi antenna IPEX such as the WiFi antenna IPEX datasheet, 2.4/5 GHz WiFi antenna pricing, and dual-band WiFi antenna inventory.
Or other internal-external 2.4/5 GHz dual-band WiFi antenna styles.
Please send us the item SKU# and the page link you are interested in to info@ctrfantennasinc.com.
We will reply to you as soon as possible.
The high-performance antenna WiFi dual-band 2.4/5GHz antenna is made by U.FL/IPEX/MHF connector rubber duck antenna and manufactured by C&T RF Antennas Inc. Antenna Wifi dual-band is used for 2.4/5 GHz wireless network applications.
The high-performance 2.4/5GHz Dual-band WiFi antenna IPEX is easy to install, and works well for Bluetooth and WiFi connections, with strong signal strength on the 2.4 GHz band and 5 GHz band. and enhance your internet experience by offering improved speed, reduced interference, and a better range.
Besides the high-performance 2.4/5GHz dual-band IPEX antennas, we also provide rubber duck antennas with IPEX/u.FL/MHF connectors, such as Omni IPEX WiFi antennas, and Omni IPEX.GSM NB-IoT 4G 5G antennas.
Rubber duck antennas with SMA connectors, such as 433MHz SMA antennas, single-band 868MHz/915MHz SMA antennas, dual-band 868/915MHz LoRa SMA antennas, 2G/UMTS/LTE/NB-IoT/CAT-M1/LTE-M SMA antennas, NR 5G/5G CBRS SMA antennas, SMA GPS antennas, 2.4 GHz SMA WiFi antennas, dual-band 2.4/5GHz WiFi SMA antennas, 169MHz/230MHz/315MHz SMA antennas, 1.2G/1.4G/1.8G SMA antennas
Rubber duck antennas with N-type connectors, such as 4G 5G N-type antennas, 3.5GHz CBRS N-type antennas, and N-male 2.4 GHz & 5GHz antennas for your choice.
C&T RF Antennas Inc. provides many different types of RF antennas, adapters, amplifiers, and cable assemblies. The internal & external antennas with Omni and directional antennas single-band/dual-band/multi-band/extra wideband radio frequencies such as 13.56 MHz, 169 MHz, 230 MHz, 315 MHz, 433 MHz, 868 MHz, 915 MHz, VHF&UHF, ADS-B, 2.4 GHz, 5 GHz, 1.2 GHz, 1.4 GHz, 1.8 GHz, 2G 3G 4G, 5G NR, etc.
The RF products supplied by C&T RF Antennas Inc. are used for Cellular, LTE, CBRS, GSM, LTE-M, UMTS, GPRS, DAS, LPWA, NB-IoT, Sigfox, LoRa, and wireless, Wi-Fi, Bluetooth, ISM, RFID, NFC, and GNSS/GPS/UWB applications. Contact us for more specs you need.
Omnidirectional antenna
IPEX/MHF/U.Fl antenna
External antenna
Dual-band antenna
2.4/5GHz WiFi antenna
etc.

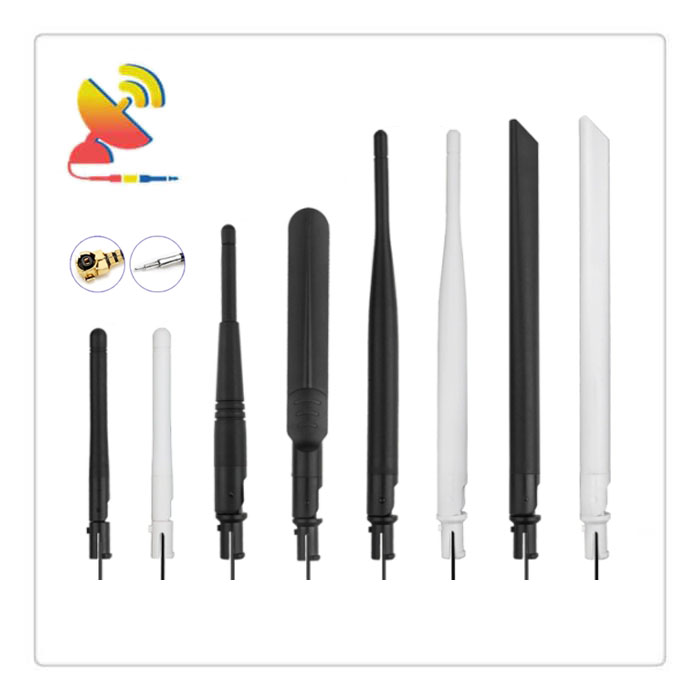

C&T RF Antennas Inc. provides a high-performance 2.4/5GHz dual-band WiFi antenna IPEX connector rubber duck antenna. Below are some of the styles of 2.4/5GHz dual-band WiFi antenna IPEX.
Item: CTRF-ANTENNA-AP-2458-10110B-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500 MHz, 5150-5800 MHz
Gain: 3/4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: U.FL/IPEX/MHF
Cable: RG1.13 150mm
Color: Black
Dimension: Φ10x110mm
Item: CTRF-ANTENNA-AP-2458-10110W-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500 MHz, 5150-5800 MHz
Gain: 3/4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: U.FL/IPEX/MHF
Cable: RG1.13 150mm
Color: White
Dimension: Φ10x110mm
Item: CTRF-ANTENNA-AP-2458-13155-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500 MHz, 5150-5800 MHz
Gain: 3/4dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: U.FL/IPEX/MHF
Cable: RG1.13 150mm
Color: Black
Dimension: Φ13x155mm
Item: CTRF-ANTENNA-AP-2458-13160B-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500 MHz, 5150-5800 MHz
Gain: 4/5dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: U.FL/IPEX/MHF
Cable: RG1.13 150mm
Color: Black
Dimension: Φ13x160mm
Item: CTRF-ANTENNA-AP-2458-13195B-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500 MHz, 5150-5800 MHz
Gain: 5/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: U.FL/IPEX/MHF
Cable: RG1.13 150mm
Color: Black
Dimension: Φ13x195mm
Item: CTRF-ANTENNA-AP-2458-13195W-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500 MHz, 5150-5800 MHz
Gain: 5/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: U.FL/IPEX/MHF
Cable: RG1.13 150mm
Color: White
Dimension: Φ13x195mm
Item: CTRF-ANTENNA-AP-2458-13200B-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500 MHz, 5150-5800 MHz
Gain: 5/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: U.FL/IPEX/MHF
Cable: RG1.13 150mm
Color: Black
Dimension: Φ13x200mm
Item: CTRF-ANTENNA-AP-2458-13200W-IPEX
Specifications:
Material: Plastic ABS
Frequency: 2400-2500 MHz, 5150-5800 MHz
Gain: 5/6dBi
H-Beam width: 360°
V.S.W.R: ≤2.0
Polarization: Vertical
Connector: U.FL/IPEX/MHF
Cable: RG1.13 150mm
Color: White
Dimension: Φ13x200mm
Besides the rubber duck antennas, C&T RF Antennas Inc. also offers 2.4/5 GHz antennas in various types, including external adhesive mount antennas, fiberglass antennas, Yagi antennas, sector antennas, magnetic antennas, and through-hole screw mount puck antennas. Internal ceramic antennas, flexible PCB antennas, PCB antennas, helical antennas. etc. Contact us for more specs you need.
